Top Quality Heavy Duty Lead Rail Lifting System Cargo Lift
- 3000 Set / Sets per Month
- Qingdao port China
- T/T
You May Like
-
3.4m 1000kgs Guide Rail Hydraulic Lead Rail Freight Lift
-
5m CE Approved Hydraulic Warehouse Goods Lift for Lift Cargo
-
Guide Rail Hydraulic Warehouse Lift
-
Top Quality Wall Mounted Lead Rail Elevator to Lift Car
-
Factory Custom Manufacture Lead Rail Hydraulic Scissor Lift Platform
-
CE approved lead rail manual hydraulic cargo lifter machine
Product Details
| Place of Origin | Shandong, China | Brand Name | SDLIFT | |
| Model Number | SJG2-4 | Lift Mechanism | Lift Chain | |
| Lift Drive / Actuation | Hydraulic | Power | 3.0kw | |
| Rated Loading Capacity | 2000kgs | Min. Lifting Height | 200mm | |
| Max. Lifting Height | 4m | Table Size | 2m x 2m | |
| Overall Dimensions | 2.6m x 2.1m x 5m | Weight | 2200kg | |
| Certification | CE ISO | Warranty | 24 Months | |
| After-sales Service Provided | Overseas third-party support available |
Product Description
Top Quality Heavy Duty Lead Rail Lifting System Cargo Liftar
Application:
The red, blue, gray optional for Lifting System Cargo Lift is widely used in indoor or outdoor of the buildings and warehouse. Used to lifting the goods or pallets between the floors.
To provide fast, efficient, convenient and safe access to mezzanines, basements, and any levels in multistoried building.
The frequent models we supplied for our clients:
MODEL | LOAD CAPACITY | PLATFORM SIZE | LIFT HEIGHT | PIT DEPTH | POWER |
SJG0.3-2 | 0.3T | 1.5m x 1.5m | 2m | 200mm | 220V, 240V, 380V or 400V |
SJG0.5-3 | 0.5T | 2m x 1.8m | 3m | 200mm | 220V, 240V, 380V or 400V |
SJG1-4.5 | 1T | 2.1m x 1.5m | 4.5m | 200mm | 220V, 240V, 380V or 400V |
SJG1.5-4 | 1.5T | 2.2m x 1.6m | 4m | 200mm | 220V, 240V, 380V or 400V |
SJG2-6.5 | 2T | 5.2m x 2.8m | 6.5m | 250mm | 220V, 240V, 380V or 400V |
SJG2.5-3 | 2.5T | 5.2m x 2.6m | 3m | 250mm | 220V, 240V, 380V or 400V |
SJG2.5-3.5 | 2.5T | 5.2m x 2.6m | 3.5m | 250mm | 220V, 240V, 380V or 400V |
SJG2.5-5 | 2.5T | 5.6m x 3m | 5m | 250mm | 220V, 240V, 380V or 400V |
SJG3-2.5 | 3T | 5m x 2.3m | 2.5m | 250mm | 220V, 240V, 380V or 400V |
SJG3-3 | 3T | 5.2m x 2.6m | 3m | 250mm | 220V, 240V, 380V or 400V |
SJG3-3.5 | 3T | 5.6m x 2.7m | 3.5m | 260mm | 220V, 240V, 380V or 400V |
SJG5-10 | 5T | 4.5m x 2.5m | 10m | 300mm | 220V, 240V, 380V or 400V |
SJG8-2.5 | 8T | 6.5m x 4.5m | 2.5m | 300mm | 220V, 240V, 380V or 400V |
SJG12-3 | 12T | 5.5m x 2.8m | 3m | 300mm | 220V, 240V, 380V or 400V |
SJG15-4.5 | 15T | 8m x 2.2m | 4.5m | 300mm | 220V, 240V, 380V or 400V |
SJG20-5 | 20T | 6m x 3m | 5m | 300mm | 220V, 240V, 380V or 400V |
The Lifting System Cargo Lift can be customized as your detailed size. | |||||

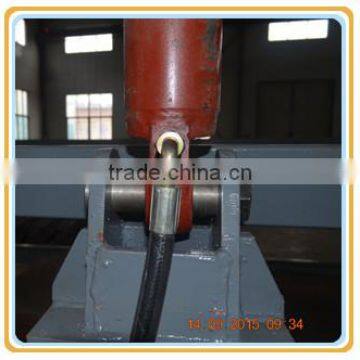

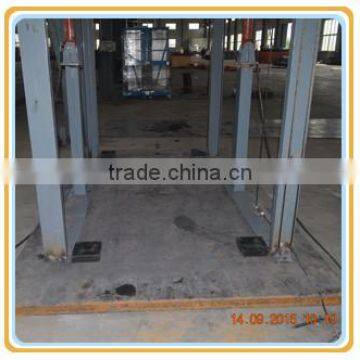

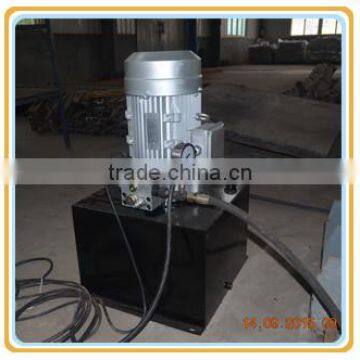

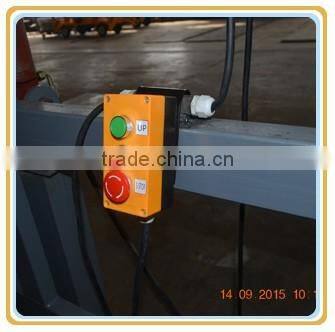

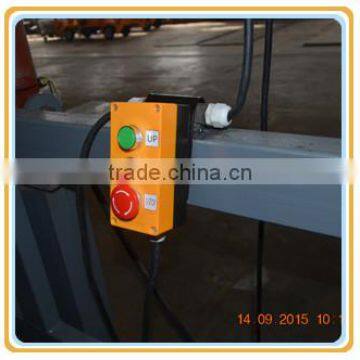

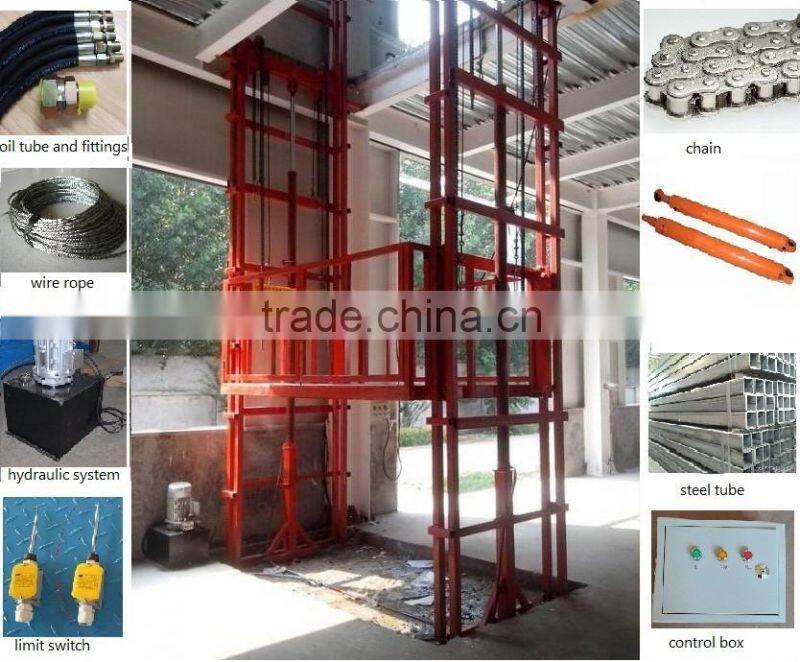

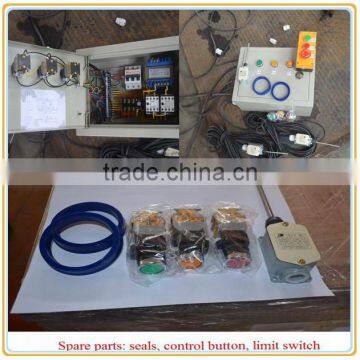

Parts showing:

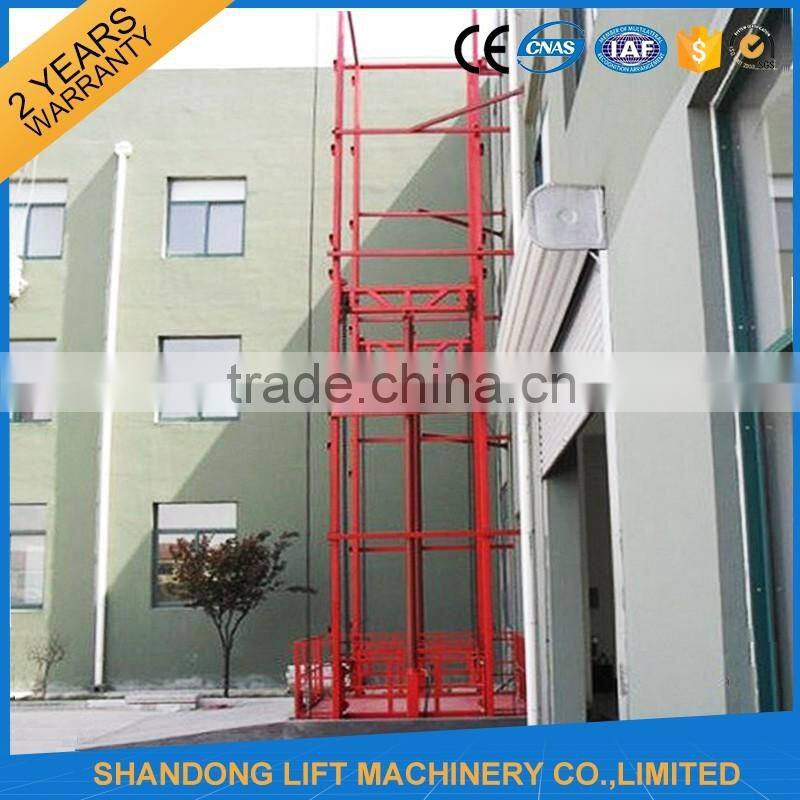

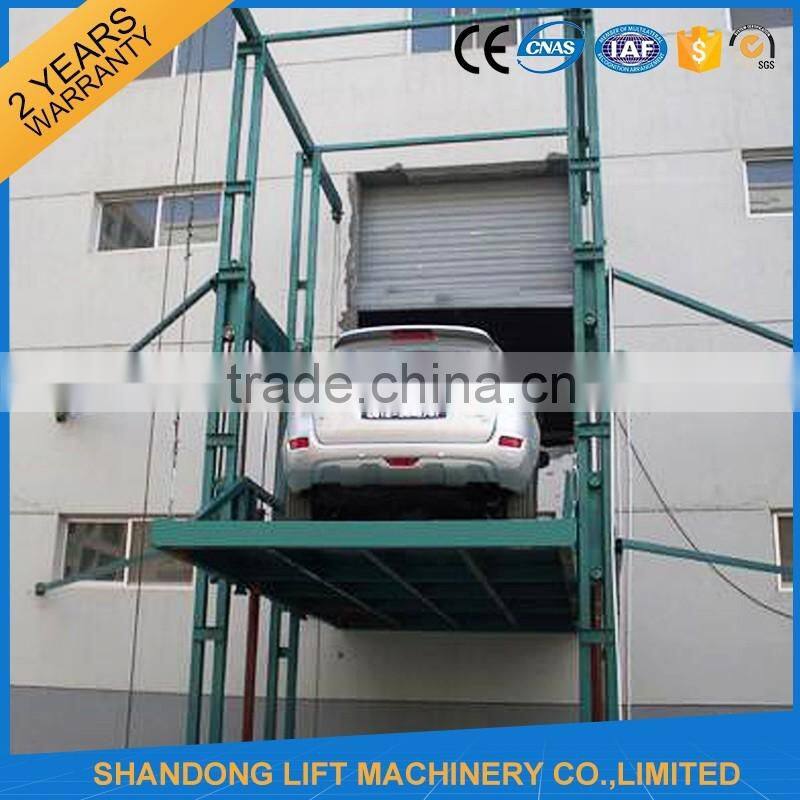

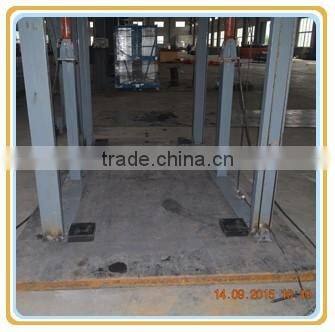

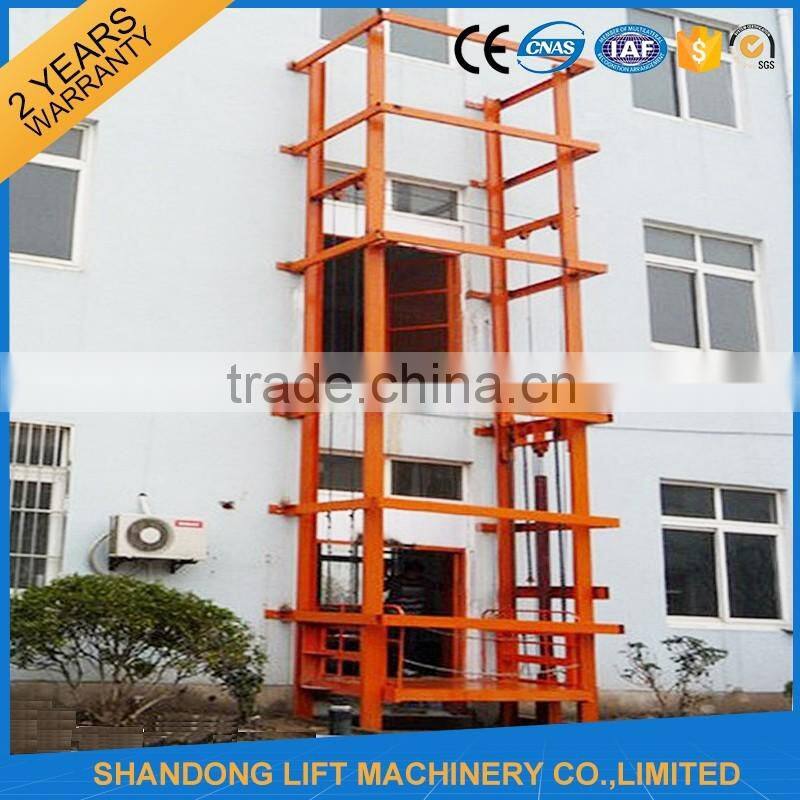

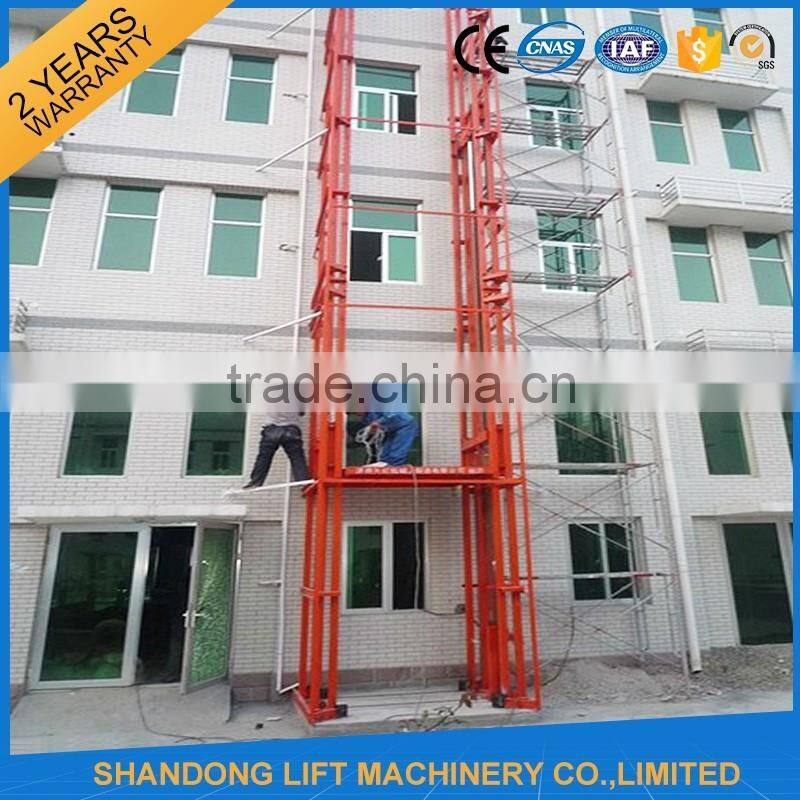

Installation sites:
Packaging & Shipping:
The customers visiting:
The Certificates:
Our services:
1) We can design the Lifting System Cargo Lift as per your requirement.
2) The most suitable Lifting System Cargo Lift will be recommended to you once we got your requirement.
3) Shipment can be arranged from our port to your destination port.
4) Operation video can be sent to you if needed.
5) User-friendly English manual for machine installation using and maintenance.
6) 2 years warranty for whole machine without man-made faults.
7) We will send you parts for free if there are any non-human factors faults during warranty time.
8) Supply 24-hours technical assistance by email, telephone or other communication online.
9) We could reply you in 2 hours after received your any questions even on weekend and holiday.
Engineers are available to your country if necessary.
