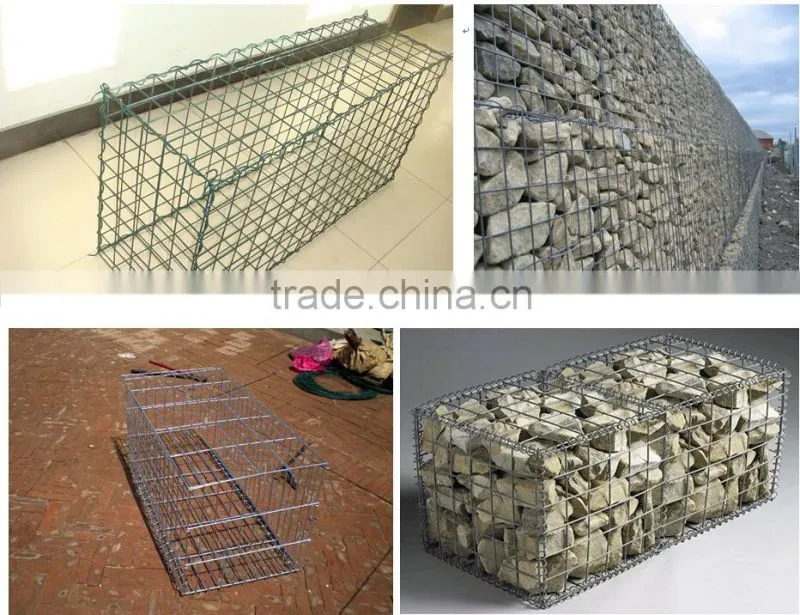

Great quality gabion stone basket
gabion stone basket
gabion stone basket iS filled with rock at the protect site to from flexible,permeable,monolithic structures such as retaining walls,channel linings and weirs for erosion control projiects.It is made of teisted hexagonal wire mesh.
Material:
1.Galvanized steel wire,high quality low carbon steel wire,wire diameter 2.0mm-4.0mm.The tensile strengyh of steel wire shall be more than 380 Mpa.Protected by Hot dipped galvanized ,galvanized thickness can be required by custmomers,the Max is 300g/m2 .Heavy zinc-coated wire (EN10244-2240g/m2).
2.Zinc-5%Aluminum-Mix rare earth alloy steel wire (Galfan wire):Corrosion resistance is more than tree times of the traditional pure galvanized .Wire diameter 1.0mm-3.0mm.The tensile strength of steel wire shall be more than 1380Mpa.
3.PVC coated wire (PVC thickness:0.38-0.5mm)
Specification

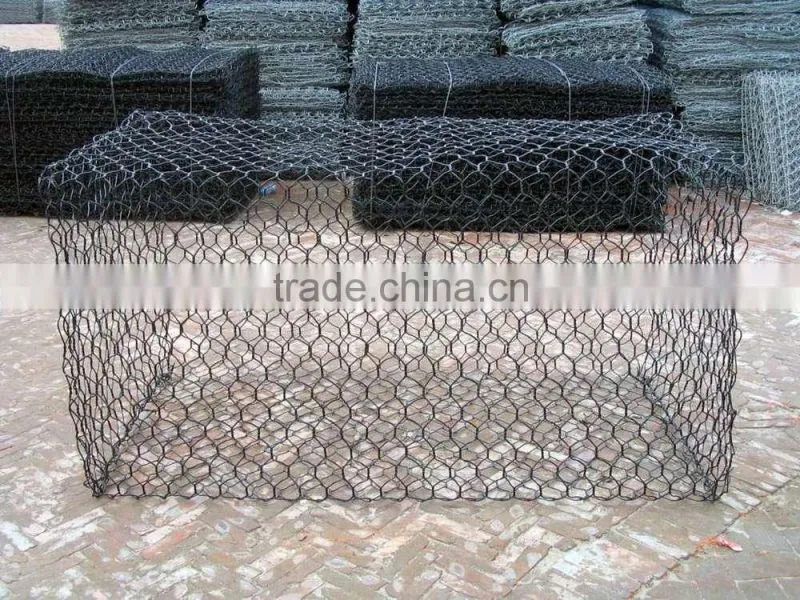

Gabion box consist of rectangular units, fabricated from a double twisted hexagonal mesh. Fill with stones, gabion become large , flexible and permeable elements from which a broad range of structure may be built.
| Gabion Size(m) |
Mesh Model |
|||||||
| Length | Width | Height |
Diaphragm numbers |
Strands | 8x10 | 6x8 | ||
| Gal. or PVC coated | Gal. or PVC coated | |||||||
|
Mesh wire diameter |
Gal.weight |
Mesh wire diameter |
Gal.weight | |||||
| 2m | 1m | 1m | 1 | 3 | 2.7mm |
>245/m2 | 2.0mm |
>215/m2 |
| 3m | 1m | 1m | 2 | 3 | Selvedge wire diameter | Gal.weight | Selvedge wire diameter | Gal.weigh |
| 4m | 1m | 1m | 3 | 3 | 3.4mm | >265/m2 | 2.7mm | >245g/m2 |
| 6m | 1m | 1m | 5 | 3 | Lacing wire 2.7mm | Lacing wire 2.0mm | ||

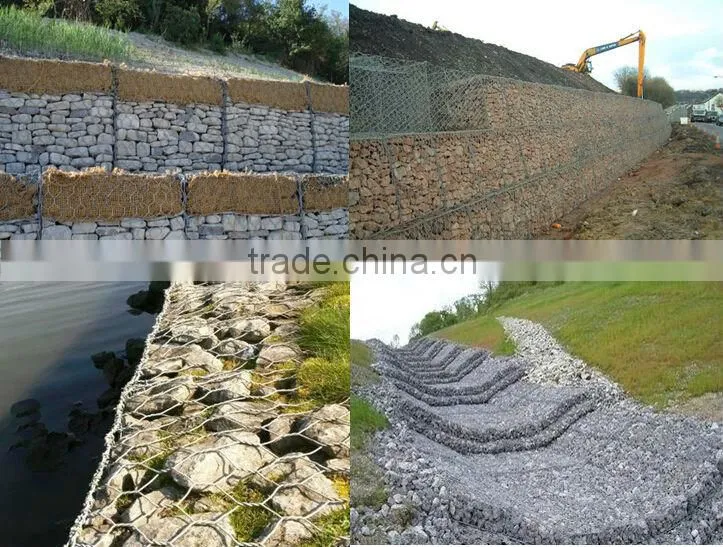

Applications
1) Control and guide of water or flood
2) Flood bank or guiding bank
3) Preventing of rock breaking
4) Water and soil protection
5) Bridge protection
6) Strengthening structure of soil
7) Protection engineering of seaside area
Features:
Economic. Just fill the stone into the gabions and seal it.
Simple installation. No special technology needed.
Weather proof under natural destroys corrosion resistant.
No collapse even under big scope of deforming.
Sludge in the stones is good for plant growing. Mixed to form a integrity with the natural environment.
Good permeation can prevent the damage by hydrostatic.
Less transport freight. It can be folded together for transport and further installation.

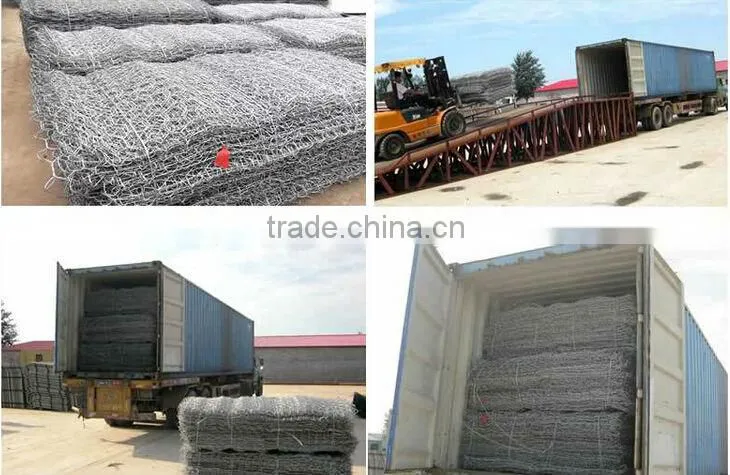

Packing:
100 PC into a bundle, plastic coated on a pallet
Company Profile
Founded: in 1998
Situated (Headquarters,Sales Office): in Beijing, the capital of China.
Located (Factory): in Anping, the Hometown of Wire Mesh in China.
Occupied area: 14,000 square meters.
Registered capital: about USD 8million .
Market: America, France, Germany, Italy, Russia, Australia, Indonesia, Philippines, Sri Lanka, Pakistan, South Africa and other countries in Southeast Asia and the Middle East.
Certificate:ISO9001:2008
Our Services
1.Product quality assurance
2.High production efficiency
3.Business model: Factory direct
