Electro hexagonal wire netting

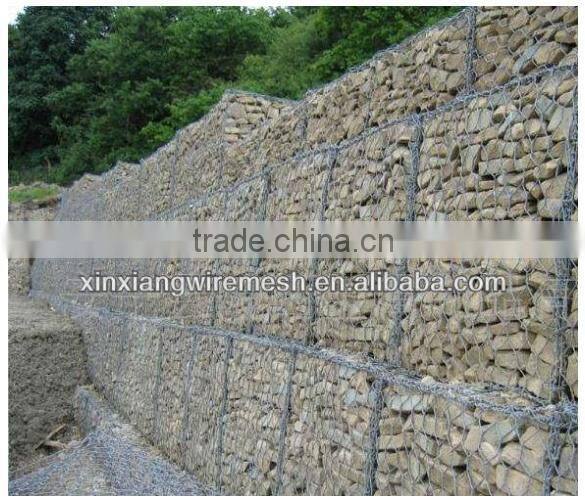

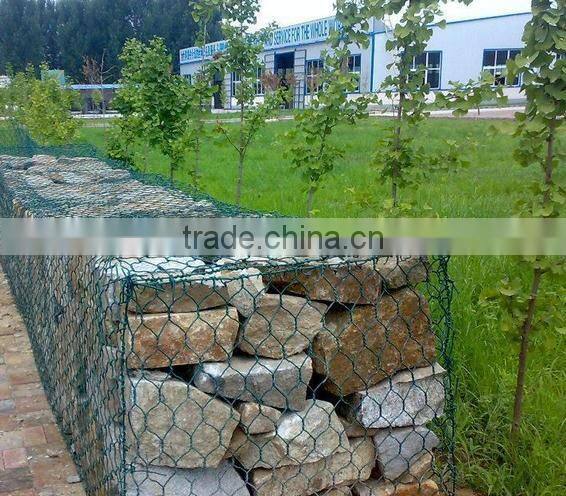

Gabion wire mesh box is  filled with rock at the protect site to from flexible,permeable,monolithic structures such as retaining walls,channel linings and weirs for erosion control projiects.It is made of teisted hexagonal wire mesh(aperture 80x100).

Assortments Available:
hexagonal wire meshElectro Galvanized before Weaving
hexagonal wire meshElectro Galvanized After Weaving
hexagonal wire mesh Hot Dipped Galvanized before Weaving
hexagonal wire mesh Hot Dipped Galvanized after Weaving
hexagonal wire mesh PVC Coated Before or After Weaving
Stainless Steel hexagonal wire mesh

 Material:

1.Galvanized steel wire,high quality low carbon steel wire,wire diameter 2.0mm-4.0mm.The tensile strengyh of steel wire shall be more than 380 Mpa.Protected by Hot dipped galvanized ,galvanized thickness can be required by custmomers,the Max is 300g/m2  .Heavy zinc-coated wire (EN10244-2240g/m2).

 2.Zinc-5%Aluminum-Mix rare earth alloy steel wire (Galfan wire):Corrosion resistance is more than tree times of the traditional pure galvanized .Wire diameter 1.0mm-3.0mm.The tensile strength of steel wire shall be more than 1380Mpa.

 3.PVC coated wire (PVC thickness:0.38-0.5mm)

Applications of  Gabion Mesh

1.Control and guide of water or flood
2.Flood bank or guiding bank
3.Preventing of rock breaking
4.Water and soil protection
5.Bridge protection
6.Strengthening structure of soil
7.Protection engineering of seaside area
