Specifications
Economic;Simple installation;
No collapse even under big scope of deforming;
Less transport freight.
Top Sale 2014 Hexagonal or Square Weld Gabion Mesh Box
Product show

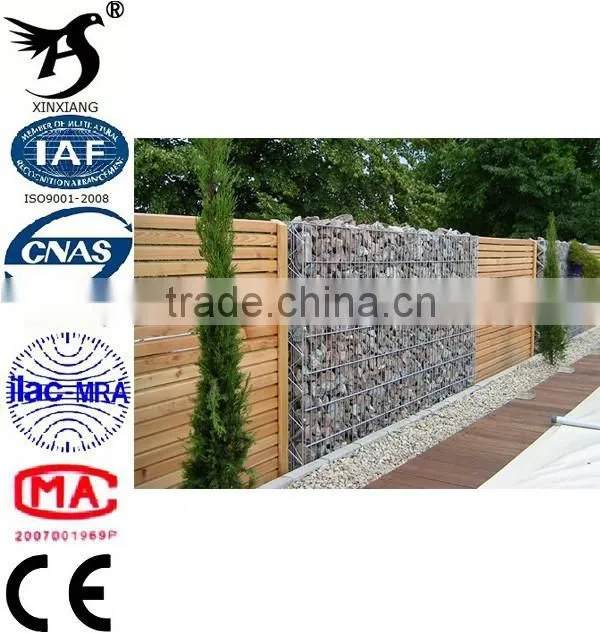

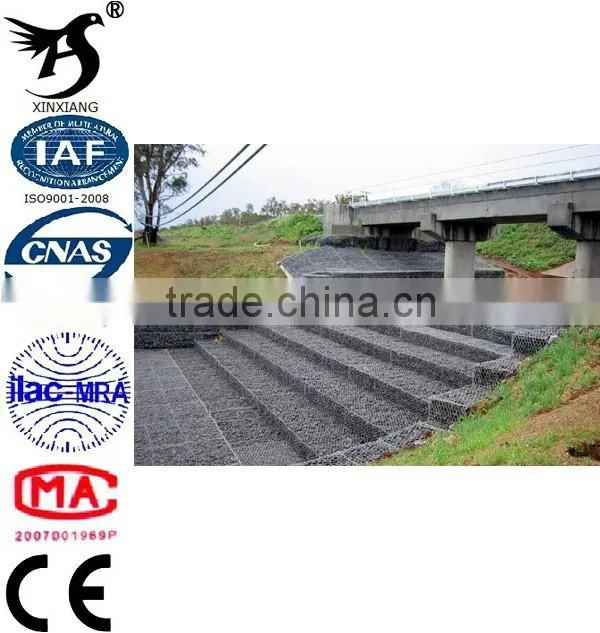

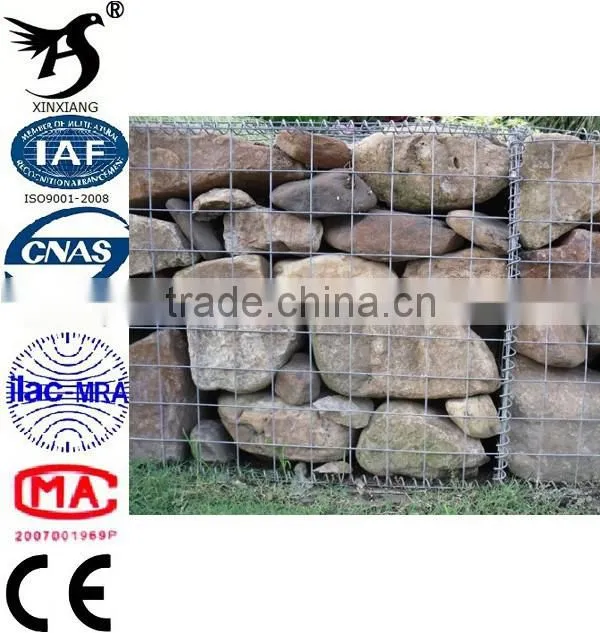

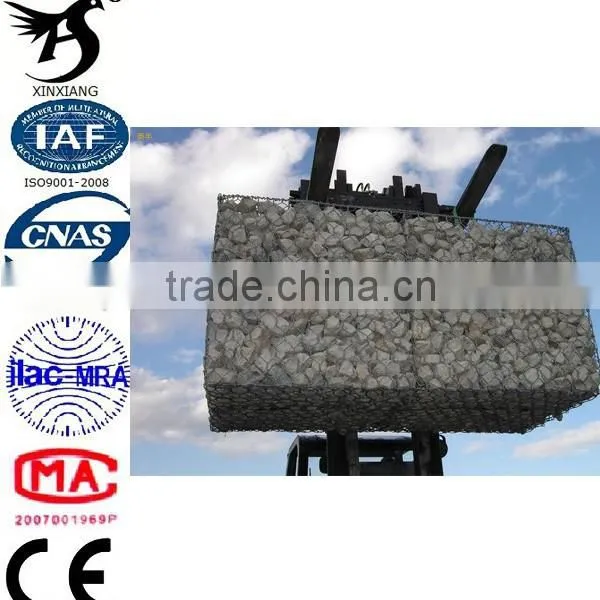

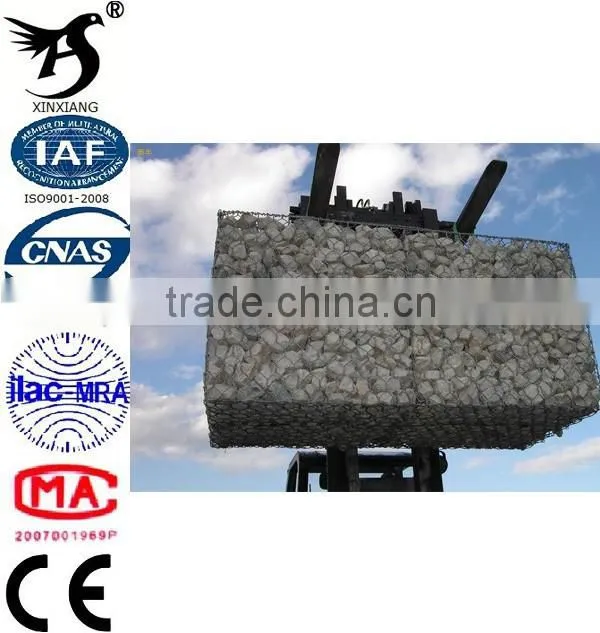

1. Pictures of Weld Gabion Mesh Box
2. Details of Weld Gabion Mesh Box
DESCRIPTION OF GABION:
Gabion is basket or mesh roll made of twisted hexagonal wire Mesh(80X100 APERTURE). Gabion box is filled with rock at the project site to form flexible, permeable, monolithic structures such as retaining walls, channel linings and weirs for erosion control projects.
Material
1. Galvanized steel wire: high quality low carbon steel wire, wire diameter 2.0mm -4.0mm. The tensile strength of steel wire shall be more than 380 Mpa. Protected by Hot dipped galvanized, galvanized thickness can be required by cuntomers, the Max is 300g/m². Heavy zinc-coated wire(EN10244-2 240g/m²)
2. Zinc - 5%Aluminum - Mixed rare earth alloy steel wire (Galfan wire):Corrosion resistance is more than three times of the traditional pure galvanized. Wire diameter 1.0mm-3.0mm, The tensile strength of steel wire shall be more than 1380 Mpa
3. Pvc coated wire(Pvc thickness:0.38-0.5mm)
Classification
Regular size for Weld Gabion Mesh Box
wire diameter: 2.7x3.4x2.2mm, mesh size: 80x100mm, box size: 2x1x1m
Regular size for Gabion Mattress
wire diameter: 2.2x2.7x2.2mm, mesh size: 60x80mm, mattress size: 3x2x0.3m
Regular size for gabion mesh roll:
wire diameter: 2.7x3.4, mesh size: 60x80mm/80x100mm, roll size: 2x50m
Gabion Specification
| Opening | Wire Diameter | Wire Diameter(PVC Coated) | Strands |
| (mm) | (mm) | Inner/outside(mm) | |
| 60x80 | 2.0-2.8 | 2.0/3.0-2.5/3.5 | 3 |
| 80x100 | 2.0-3.2 | 2.0/3.0-2.8/3.8 | 3 |
| 80x120 | 2.0-3.2 | 2.0/3.0-2.8/3.8 | 3 |
| 100x120 | 2.0-3.4 | 2.0/3.0-2.8/3.8 | 3 |
| 100x150 | 2.0-3.4 | 2.0/3.0-2.8/3.8 | 3 |
| 120x150 | 2.0-4.0 | 2.0/3.0-3.0/4.0 | 3 |
| Diaphragm numbers | Approximate dimensions and volumes | Tolerance | Color | |||
| Length | Width | Depth | Capacity | |||
| (m) | (m) | (m) | (m³) | |||
| 1 | 2 | 1 | 0.3 | 0.6 | ±5% | |
| 1 | 2 | 1 | 0.5 | 1 | ||
| 1 | 2 | 1 | 1 | 2 | Blue | |
| 2 | 3 | 1 | 0.3 | 0.9 | Red | |
| 2 | 3 | 1 | 0.5 | 1.5 | Green | |
| 2 | 3 | 1 | 1 | 3 | Black | |
| 3 | 4 | 1 | 0.3 | 1.2 | ||
| 3 | 4 | 1 | 0.5 | 2 | ||
| 3 | 4 | 1 | 1 | 4 | ||
| 1 | 2 | 0.5 | 0.5 | 0.5 | ||
| 2 | 3 | 0.5 | 0.5 | 0.75 | ||
MATTRESSES are also rectangular boxes which are larger in area and thinner in depth than gabions.They are made with a smaller mesh size and a thinner wire to provide a higher degree of flexibility.Like the gabions,the mesh is framely a thicker selvedge wire but due to the larger size of the mattress the lid is made of a separate panet of mesh to the base.Additional end panels and internal diaphragms at 1.0m centres are then wired to the base of thr mattress.
| Gabion Size(m) | Mesh Model | |||||
| 8x10 | 6x8 | |||||
| Length | Width | Height | Gal. or PVC coated | Gal. or PVC coated | ||
| Mesh wire diameter | Gal. weight | Mesh wire diameter | Gal. weight | |||
| 2m | 1m | 1m | 2.7mm | >245g/m2 | 2.0mm | >215g/m2 |
| 3m | 1m | 1m | Selvedge wire diameter | Gal. weight | Selvedge wire diameter | Gal. weight |
| 4m | 1m | 1m | 3.4mm | >265g/m2 | 2.7mm | >245g/m2 |
| 6m | 1m | 1m | Lacing wire 2.7mm | Lacing wire 2.0mm | ||
GABION CHARACTERISTICS:
1. Economy. Put the stones into the cage, then seal it
2. Construction is simple, without special skills.
3. The stong ability to withstand natural damage,prevent corrosion resistance and resist the bad climate impact
4. Withstand large-scale deformation, no collapse.
5. The plant can grow in the mud of rock crevice, melting into the surrounding natural environment.
6. The good permeability to prevent the damage of static fluid, and benefit the stability of hillside and bench
7. Save transportation costs.It can be transported after folded up, assembled on site.
8. Environmental protection material, cadmium(cd)<10ppm,lead(Pb)<50ppm,noxious substance, like mercury(Hg),hexavalent chromium(Cr6+),PBB,PBDE, conformity with environmental protection standard of RoSH completely.
Gabion Mesh Application:
1. Control and guide of water or flood
2. Preventing of rock breaking
3. Rock fall protection
4. Water and soil protection
5. Bridge protection
6. Strengthening structure of soil
7. Protection engineering of seaside area.
8. Port project
9. Keep off dust wall
What information we need if you require a price?
1. Wire diameter, aperture, height*length*width, finishing(galvanized or pvc coated).
2. Where you will use it?
3. A drawing is better for a completed gabion system.

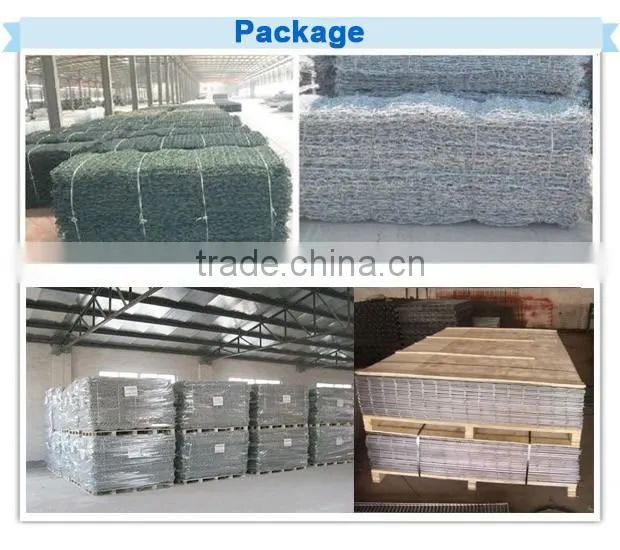

3.Package
40-100set/ bundle,binding with steel strape or strands; 40-100set/bundle;then use wooden tray; some sizes in rolls; as customer's requirement
4. More Products For You To Choose
Company show
1. About Us
2.What Information We Need If You Require A Price?
1. Wire diameter
2. Mesh Opening
3. Panel Size
4. Pipe Size
5. Feet Size
6. Surface treatment
3. Certifications
4. Our Markets
Main Markets: |
Domestic Market(40%) |
Africa(10%) | |
Mid East(10%) | |
Southern Europe(5%) | |
Western Europe(5%) | |
South Asia(4%) | |
South America(3%) | |
Eastern Europe(3%) | |
North America(2%) | |
| Southeast Asia(2%) | |
| Central America(2%) | |
| Eastern Asia(2%) | |
| North Europe(2%) | |
Total Annual Sales Volume: |
US$10 Million - US$50Million |
Export Percentage: |
60% |
