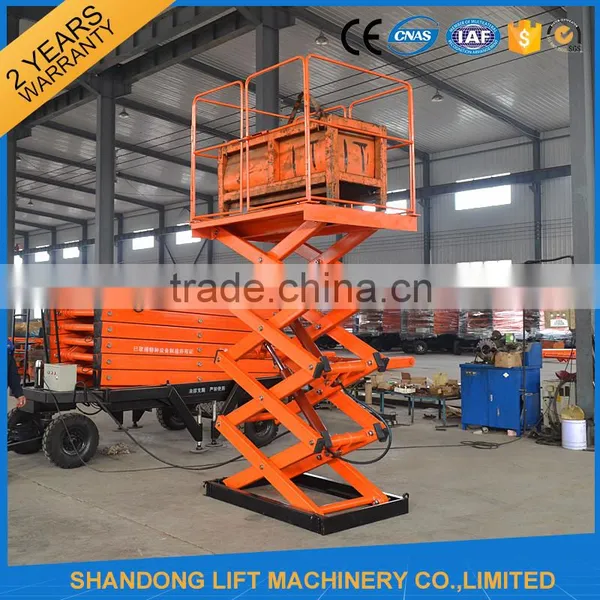

lift tables scissor lift tables

lift tables scissor lift tables

with 2 Years Warranty

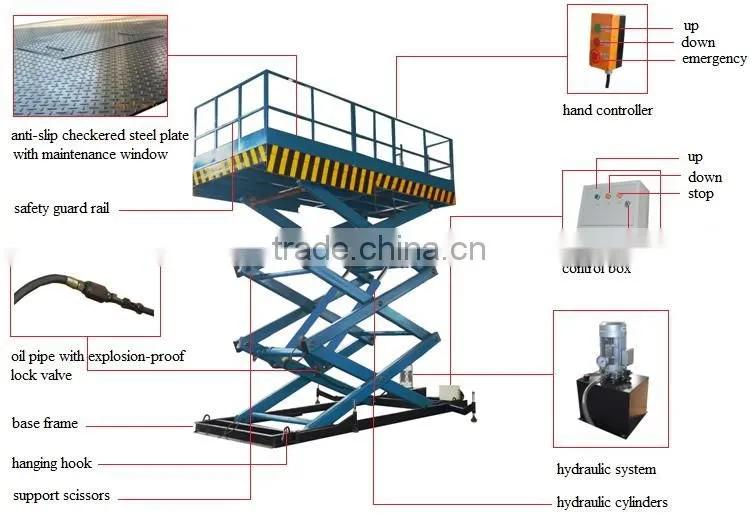

Parts Showing:

Configuration:

1) Platform Material:120mm*60mm rectangular tube +6mm checkered anti-slip plate
2) Support scissors: 160mm*80mm*6mm high strength Manganese Steel.
3) Hydraulic system: 380V/3.0Kw or 220v or as your request
4) Hydraulic cylinder: 90*4sets high precision wear-resisting cylinders with locking device for fall protection
5) Piston Rod: 50*4 hard chromium plating surface.
6) High-pressure oil pump: from Italy or Chinese famous brand.

7) Hydraulic pipe:  high pressure pipe with double expanded metal protected

8) Hydraulic oil: summer 46#, winter 32#

9) Controller: 1 control box below, 1 hand controller above platform

Safety:

1) Explosion-proof lock valve to avoid a sudden drop if emergency occurs.
2) The safety rails to guarantee safety of the goods above Electric Hydraulic lift platform .
3) Equipped 4 guide rails, to ensure the hydraulic lift table runs more smoothly and steadily.
4) The limit switch system helps the hydraulic lift table to stop at accurate position.
5) Electricity leakage protection device is equipped on, all electric components are CE certified.

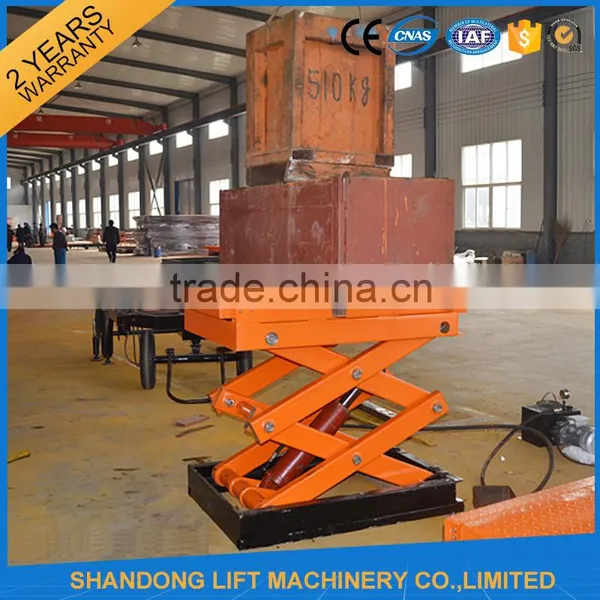

6) All the hydraulic lift table are passed 1.2 times loading test before leaving factory.
