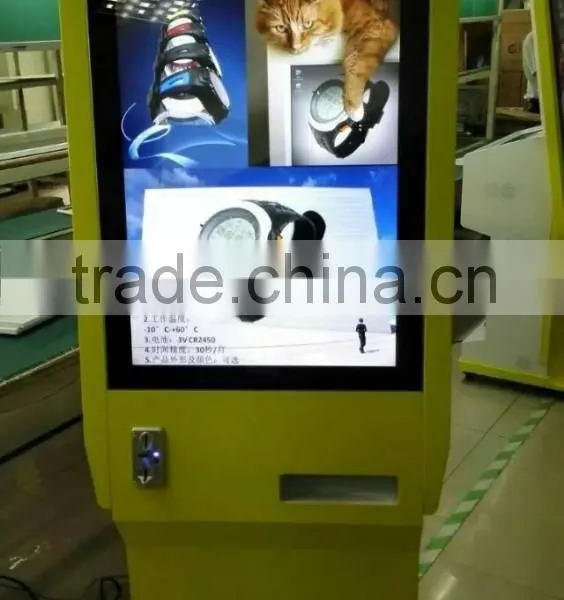

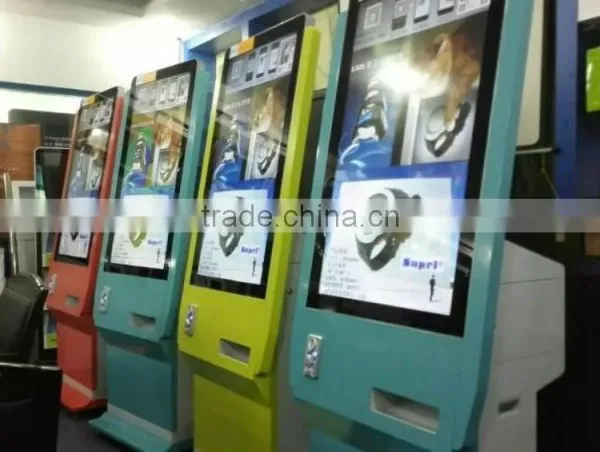

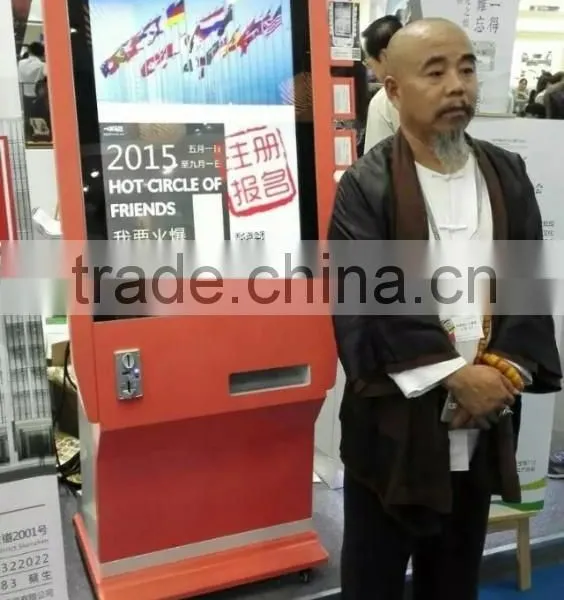

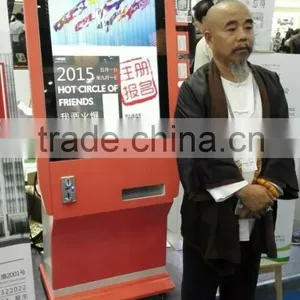

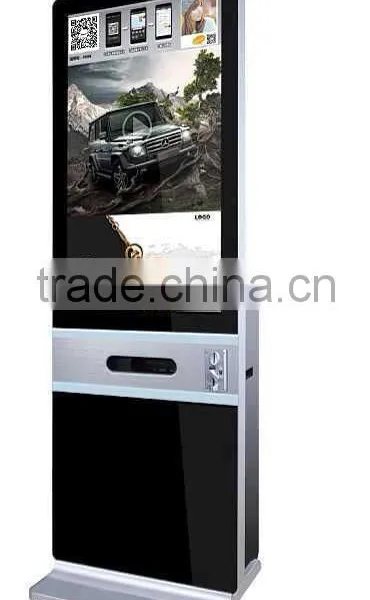

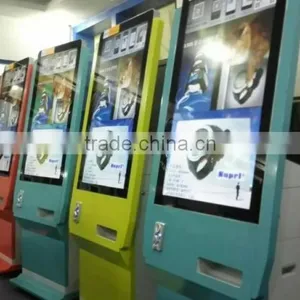

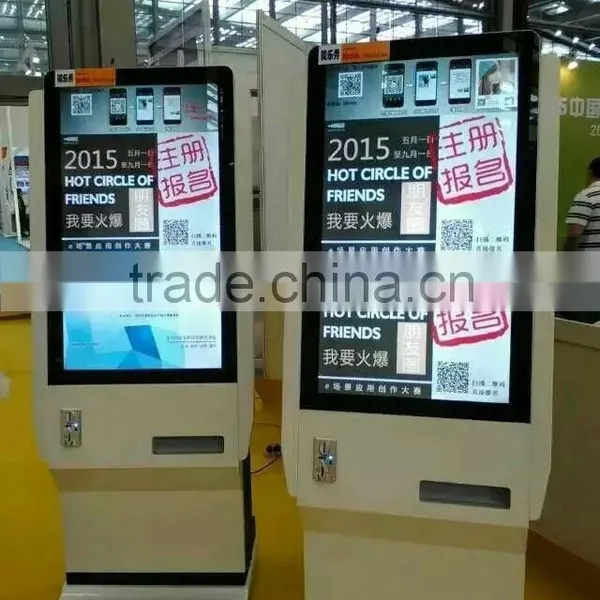

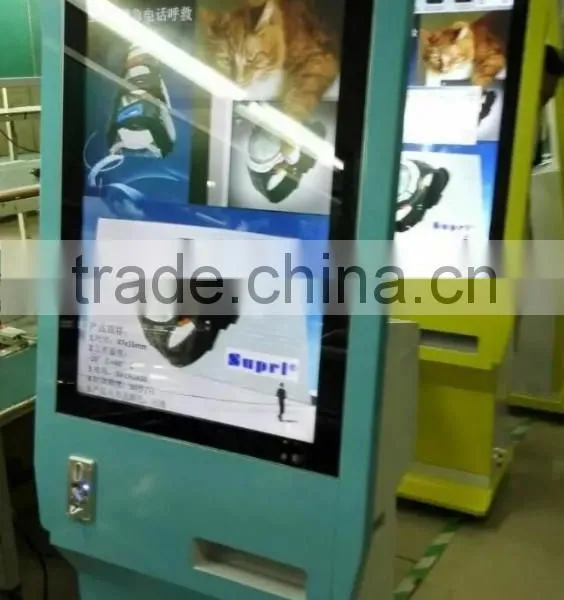

46" Touchscreen Coin operated internet kiosk

Basic Configuration

Central PC

(Customizable)

Motherboard

H61

CPU

Dual core G2030, Main frequency: 3.0 GHz, Interface type: LGA 1155. Optional:  i3/i5/i7

RAM

DDRIII 4G / 8G

HDD

500G, 7200rpm, 3.5" S-ATA

Inter face

RS-232 Ports; LTP; USB Ports, 10/100M Net Port; Integrated Net Card, Sound Card

Monitor

Screen size

32",42",46",55",65" etc.

Brightness

500cd/m2

Contrast

1000:1

Response time

5ms

Dot pitch

0.264mm

Best resolution

1920*1080

Touch Screen

Screen size

32",42",46",55",65" etc.

Touch type

Infrared

Resolution

4096x4096

Feature

High transparence, precision and durability

Kiosk Enclosure

Material

Cold-rolled steel ST12 SPCC with 1.5mm~2.0mm thickness.

Surface finishing

Car painting technology. Steel cabinet sprayed metallic paint, Anti-rust, Anti-acid, Anti-dust.

Color and Logo

Customizable

Features

Easy service access through front or back door.

Accessories

Speakers

Stereo loudspeaker, 8Ω 10W

Fans

Internal ventilation system

Power Supply

Input voltage

100~240V/AC

Frequency

50Hz to 60Hz

Operation System

Windows 2000 / Windows XP /  Windows 7 / Vista / Windows 8 / Linux / Android

Package

Safe packing with bubble foam, carton box or plywood case

Safety

Anti-vandal safety;

Electric safety: compliant with GB4943 Standard;

EMC(Electro Magnetic Compatibility): Compliant with GB9254 and GB/T17626 Standard

Monitoring system: Digital video security monitoring system (optional)

Data safety: EPP is compliant with VISA Security Standard, PCI compliant (optional) ;

Card reader is compliant with EMV Level1 Standard;

Select optional devices according to your needs

 Printer

Thermal Printer : Width 56mm /78mm /80mm /112mm /210mm; black mark sensor; full/half cutter

Card printer: Encoding Magnetic cards, Contact or Contactless IC cards

Document scanner

1D/2D barcode scanner

ID/Passport scanner

Cash or coin modules

Cash acceptor

Acceptance:> 96%, capacity: 600notes, 900notes, 1000notes, 1200notes, 2200notes.

Coin acceptor

Coin diameter: 15~32mm, thickness: 1.5~2.5mm;

Coin recycler

Coin diameter: 15.7~28.5mm, thickness: 1.1~2.5mm; maximum 5 denominations.

Keyboard

EPP

3DES Metal EPP : 16 keys, waterproof, dustproof, vandal proof IP65

Other peripheral

Advertising screen /Wifi /GPRS /Webcamera /UPS /Card dispenser /3G Module
