Specifications

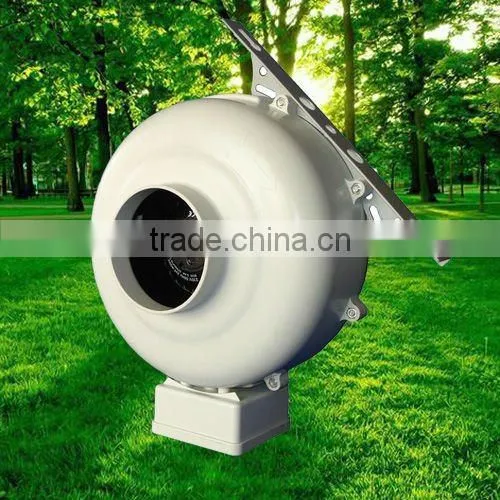

Plastic Centrifugal Inline Fan1.Plastic Housing
2.Noiseless and power saving
3.Thermally protected AC motor
4.With bracket
1 Phase, (Plastic Cased) Powerful and Quiet c/w Mounting Brackets
These fans are manufactured with a high impact polyester casing complete with detachable mounting brackets and incorporate the reliable, long life, external rotor motor c/w a high efficiency backward curved impellor
This range of fans are excellent for long ducting runs, low noise and easy to install ideally suited for a wide range of general residestial, commercial and industrial exhaust or supply ventilation applications.
National Patent Products.
Independently reseached, developed, manufactured and promoted by HCSINO
DETAILS
Colour available: Black, White
Accessories:It is possible to connect a variable speed controller, Providing the customer with variable airflow setting.
TECHNICAL PARAMETER
Model |
Voltage |
Frequency |
Power |
Rotate |
Air Flow |
Pressure |
(HCGF) |
(V ) |
(HZ) |
(W) |
(R/Min) |
(M3/H) |
(Pa) |
Φ100mm |
120 / 230 |
60 / 50 |
68 |
2590 |
310 |
350 |
Φ125mm |
120 / 230 |
60 / 50 |
70 |
2540 |
400 |
365 |
Φ150mm |
120 / 230 |
60 / 50 |
99 |
2375 |
620 |
380 |
Φ160mm |
120 / 230 |
60 / 50 |
130 |
2580 |
670 |
400 |
Φ200mm |
120 / 230 |
60 / 50 |
180 |
2145 |
1050 |
580 |
Φ250mm |
120 / 230 |
60 / 50 |
190 |
2280 |
1150 |
610 |
Φ305mm |
120 / 230 |
60 / 50 |
215 |
2410 |
1850 |
680 |
Φ315mm |
120 / 230 |
60 / 50 |
230 |
2375 |
1900 |
710 |

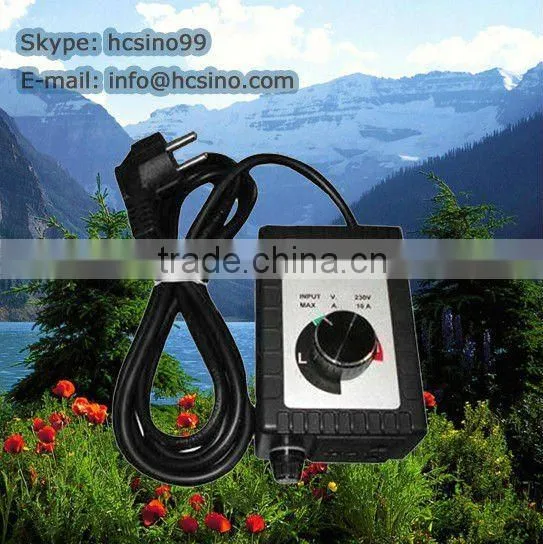

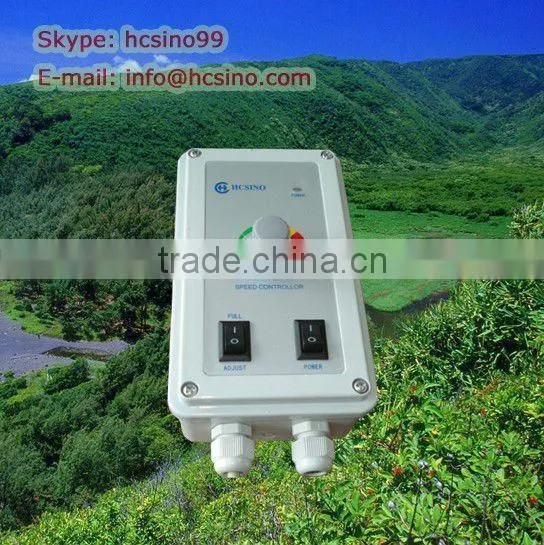

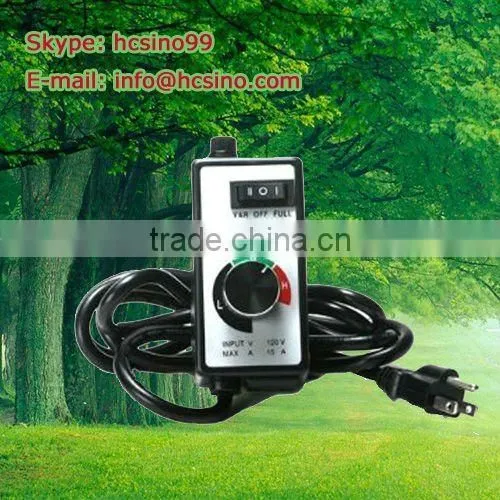

SPEED CONTROLLER FOR CHOOSING
