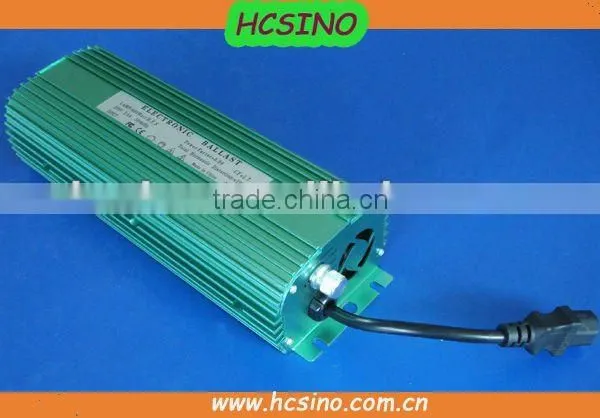

400/600/1000W Lighting Dimming Digital Ballast

Specifications

Dimming Digital Ballasts
Voltage:100-268VAC
Input frequency:50/60Hz
Power factor>0.99
UL,CE,ROSH,FCC,TUV certification

400W/600W/1000W HPS/MH Dimming/Dimmable Lighting Digital Electronic Ballasts

ROSH,FCC, CE, TUV, UL certification approved



Features:
1) Outstanding energy-saving effect
A) Low power loss
B) High power factor
C) High lighting efficiency
2) Perfect protection and monitoring function
A) Built-in voltage monitoring function
B) Trouble-detecting protection function
3) Dimming, adjustable output power
4) Light weight, small size, non-flickering, noiseless
5) Fast start-up, reach full brightness quickly
6) Operate HPS & MH lamps.
7) Available in 220-240V and 110-120V, 150W/250W400W/600W/1000W
8) Come with a 8ft power cord
9) Year factory warranty





Outside Dimension	248*112*74mm	316*112*74mm	391*112*74mm
Material of Housing	Aluminum	Aluminum	Aluminum
Ambient Operating Temp	–30~+55 Celsius Degree	–30~+55 Celsius Degree	–30~+55 Celsius Degree
Max Lamp Distance from Ballast	≤15 Meters	≤15 Meters	≤15 Meters
Max Enclosure Temp	90 Celsius Degree	90 Celsius Degree	90 Celsius Degree
Input Voltage	100-268VAC	100-268VAC	100-265AC
Input Frequency	50Hz~60Hz	50Hz~60Hz	50Hz~60Hz
Rated Input Voltage	220VAC110VAC	220VAC110VAC	220VAC110VAC
Power Factor	0.99	0.99	0.99
THD	<10%	<10%	<10%
Output Power	400W±5%	600W±5%	1000W±5%
Output Frequency	>30KHz	>30KHz	>30KHz
Diming Function	Manual Diming                       High-Medium-Low	Manual Diming                       High-Medium-Low	Manual Diming                       High-Medium-Low
Short Circuit Protection	Yes	Yes	Yes
Open Circuit Protection	Yes	Yes	Yes
Light-off Failture Protection	Yes	Yes	Yes
Thermal Protaction	Yes	Yes	Yes
Lamp Failture Protection	Yes	Yes	Yes





Advantage:

small size, light weight, low operating temperature, rapid install and excellent energy saving.
