Auto lifter for garage Electric car lifter
- 3200 Set / Sets per Month
- Qingdao port
- T/T
Product Details
| Design: | Scissor | Type: | Double Cylinder Hydraulic Lift | Certification: | CE |
| Lifting Capacity: | 3000kgs | Lifting Height(mm): | 2500mm | Overall Width(mm): | 2200mm |
| Place of Origin: | Shandong, China | Brand Name: | SDLIFT | Model Number: | SJG2.5-3 |
| Warranty: | 24 Months |
Product Description
Auto lifter for garage Electric car lifter:
Application:

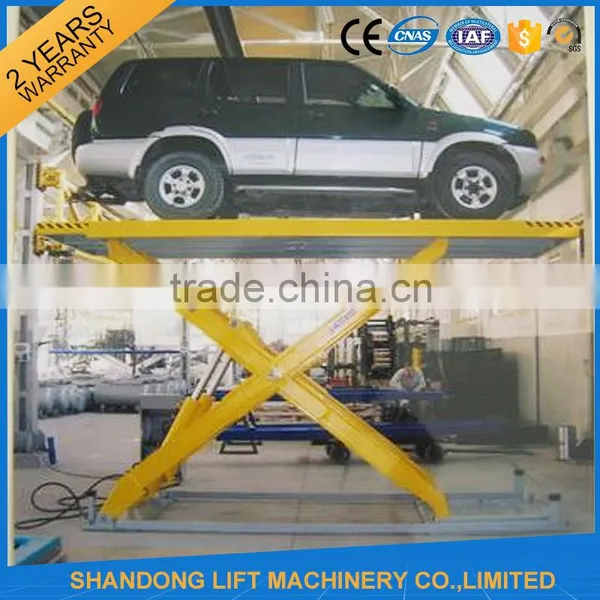

- The car lifter can be used to lift car with different levels, suitable for car moving between stairs, from basement to first floor, to second floor, or to third floor.
- Operation is easy. There are 2 sets control system installed on the car lifter, 1 control box below, and 1 hand controller on safety rail that can be operated on work platform.

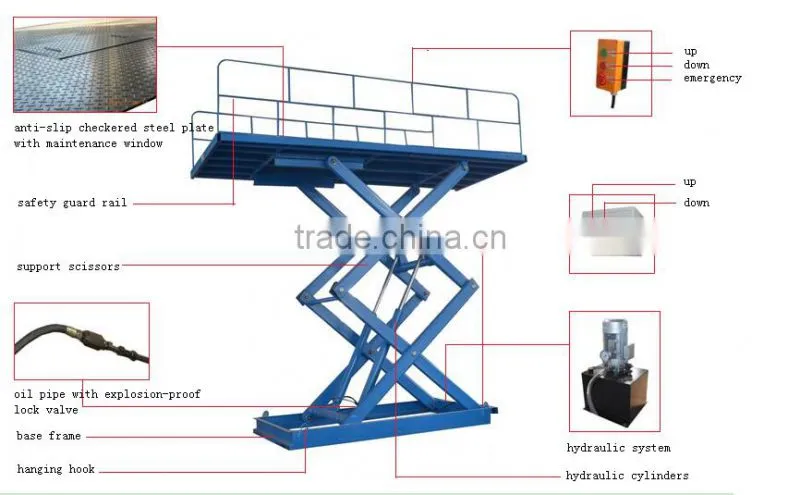

Configuration:
1) Platform Material:120mm*60mm rectangular tube +6mm checkered iron

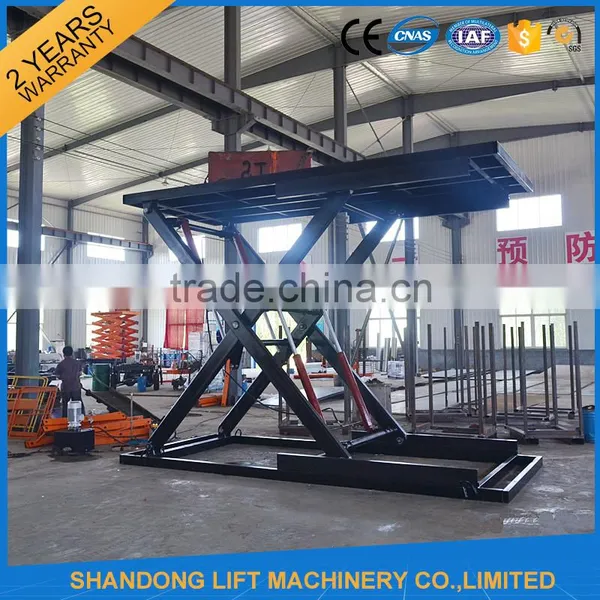

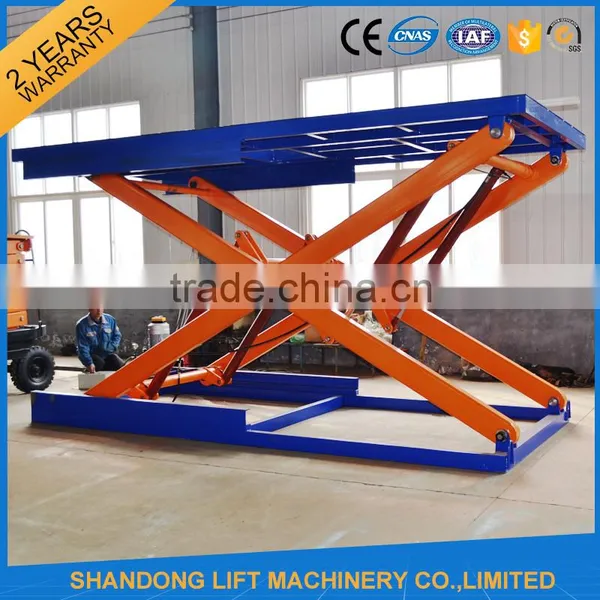

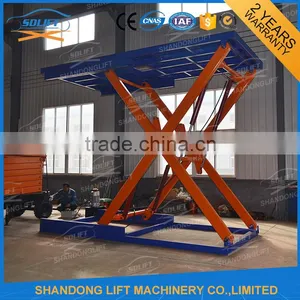

2) Scissor material: 200mm*100mm*10mm high strength Manganese Steel.
3) Hydraulic system: 380V/5.5Kw
4) High Precision Hydraulic Cylinder: 110*4sets
5) Piston Rod: 80*4 hard chromium plating surface.
6) High-pressure oil pump
7) Hydraulic oil: summer 46#, winter 32#

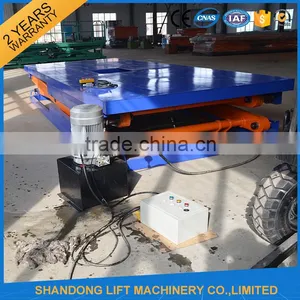

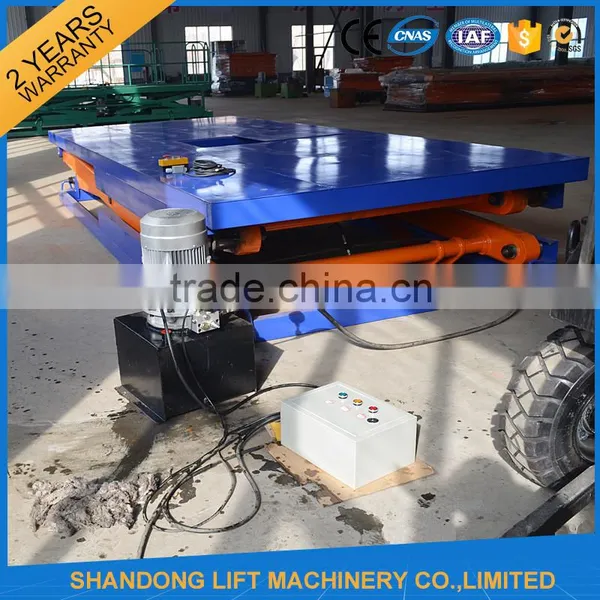

8) Controller: 1 control box below, 1 control panel above platform
Safety:
1) Explosion-proof lock valve to avoid a sudden drop if emergency occurs.
2) The safety rails to guarantee safety of the cars above the platform.
3) The limit switch system helps car lifter to stop at accurate position.
4) Electricity leakage protection device is equipped on, all electric components are CE certified.
5) All the car lifter are passed 1.2 times loading test before leaving factory.
The frequent models we supplied for our clients:
MODEL | LOAD CAPACITY | PLATFORM SIZE | LIFT HEIGHT | PIT DEPTH | POWER |
SJG2.5-3 | 2.5T | 5.2m x 2.6m | 3m | 750mm | 220V, 240V, 380V or 400V |
SJG2-6.5 | 2T | 5.2m x 2.8m | 6.5m | 800mm | 220V, 240V, 380V or 400V |
SJG2.5-3.5 | 2.5T | 5.2m x 2.6m | 3.5m | 800mm | 220V, 240V, 380V or 400V |
SJG2.5-5 | 2.5T | 5.6m x 3m | 5m | 800mm | 220V, 240V, 380V or 400V |
SJG3-2.5 | 3T | 5m x 2.3m | 2.5m | 750mm | 220V, 240V, 380V or 400V |
SJG3-3 | 3T | 5.2m x 2.6m | 3m | 800mm | 220V, 240V, 380V or 400V |
SJG3-3.5 | 3T | 5.6m x 2.7m | 3.5m | 800mm | 220V, 240V, 380V or 400V |
SJG5-10 | 5T | 4.5m x 2.5m | 10m | 1150mm | 220V, 240V, 380V or 400V |
SJG8-2.5 | 8T | 6.5m x 4.5m | 2.5m | 850mm | 220V, 240V, 380V or 400V |
SJG12-3 | 12T | 5.5m x 2.8m | 3m | 950mm | 220V, 240V, 380V or 400V |
SJG15-4.5 | 15T | 8m x 2.2m | 4.5m | 1150mm | 220V, 240V, 380V or 400V |
SJG20-5 | 20T | 6m x 3m | 5m | 1200mm | 220V, 240V, 380V or 400V |
The car lifter can be customized as your detailed size. | |||||

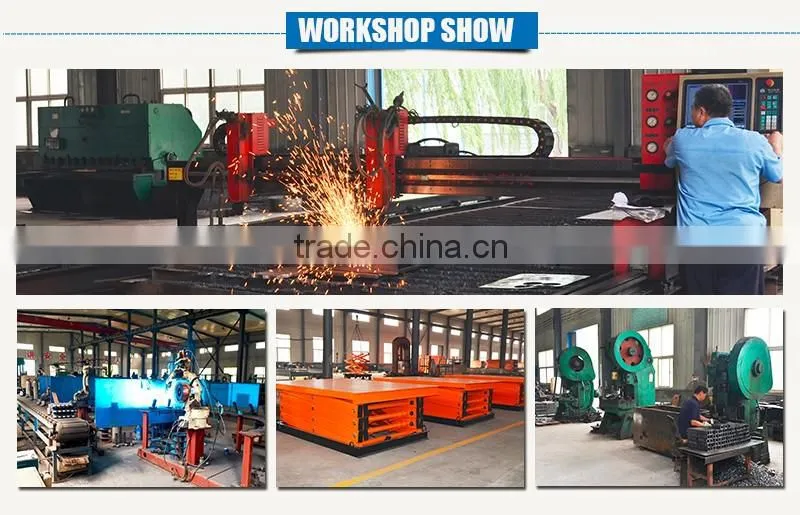

The workshops:
The customers visiting:
The Certificates:
Our services:
1) We can design the customerized car lifter as per your requirement.
2) The most suitable car lifter will be recommended to you once we got your requirement.
3) Shipment can be arranged from our port to your destination port.
4) Operation video can be sent to you if needed.
5) User-friendly English manual for machine installation using and maintenance.
6) 2 year warranty for whole machine without man-made faults.
7) We will send you parts for free if there are any non-human factors faults during warranty time.
8) Supply 24-hours technical assistance by email, telephone or other communication online.
9)We could reply you in 2 hours after received your any questions even on weekend and holiday.
Engineers are available to your country if necessary.
