2.5'' Concrete Pump Conveying Hose With Two Ends
- Tianjin Xingang Port
- T/T L/C D/P D/A Money Gram Credit Card PayPal
You May Like
Product Details
| Place of Origin | Hebei, China | Brand Name | CHUNDA | |
| Model Number | 2.5'' |
Product Description
1.we have 2-ply / 4-ply of steel wire of concrete pump rubber hose,3m-12m,DN125
2.the rubber hose is for Sany, Zoomlion, Schwing, PM, KCP, JunJin ect concrete pump
3.Our rubber hoses be able to use 20,000 cubic meter compared with normal quality of 12,000-15,000 cubic meters in China
4.hose ends can be galvanized or painting
5.integrated hose end and inner wall hardened, prolong working life
6.4 plies of steel wire reinforcement ensure the working pressure
7.Have passed ISO9001&UKAS Certification
Technical Date:
| Name | delivery (end) hoses |
| Size | 5'', 4'',3'',2.5'',2'' |
| Length | any lengths |
| Reinforcement | steel braid or fabric braid |
| Hose ends | SK / HD / ZX type |
| Working pressure | 85 bar |
| Burst pressure | 250 bar |
| Recommended Capacity | 15,000-20,000 CBM |
| hose ends | galvanized or painting |
| Application | Schwing,Putzmeister,Kyokuto |
Concrete delivery hose table
TYPE | head materia | I.D mm | O.D mm | W.Pmpa | B.Pmpa | Minimum bend radius mm |
W.T Kg/m |
3m | 45# | 125±1
| 148± 1 | ≤12 | 30 | 700 | 12.5 |
4m | 45# | 125± 1 | 148± 1 | ≤12 | 30 | 700 | 12.5 |
5m | 45# | 125± 1 | 148± 1 | ≤12 | 30 | 700 | 12.5 |
8m | 45# | 125± 1 | 148± 1 | ≤10 | 25 | 700 | 12.5 |
10m | 45# | 125± 1 | 148± 1 | ≤8 | 20 | 700 | 12.5 |
12m | 45# | 125± 1 | 148± 1 | ≤7 | 18 | 700 | 12.5 |

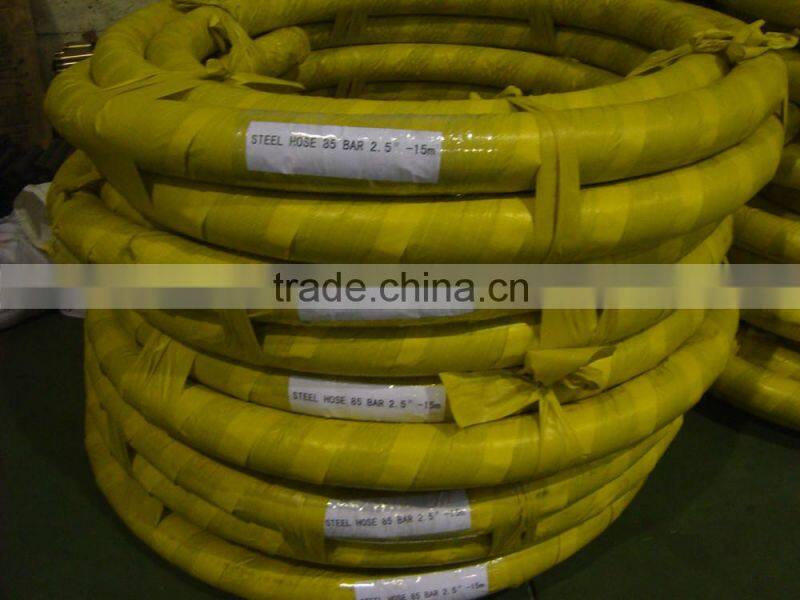

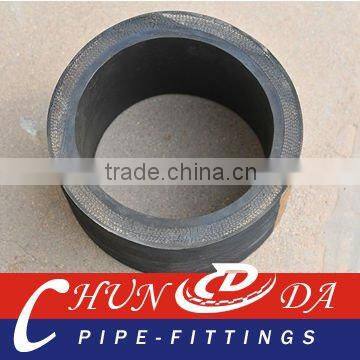

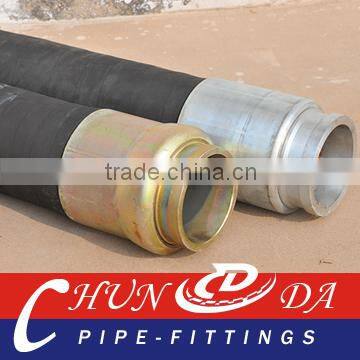

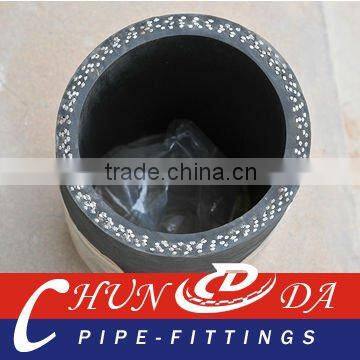

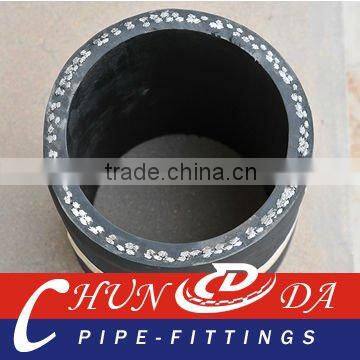

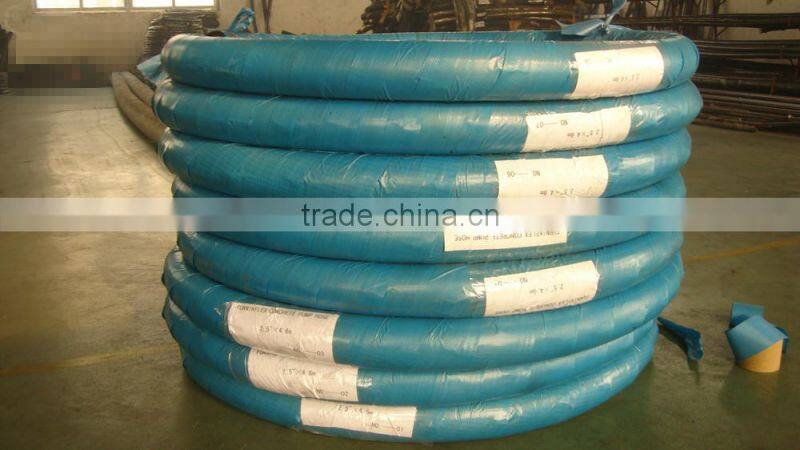

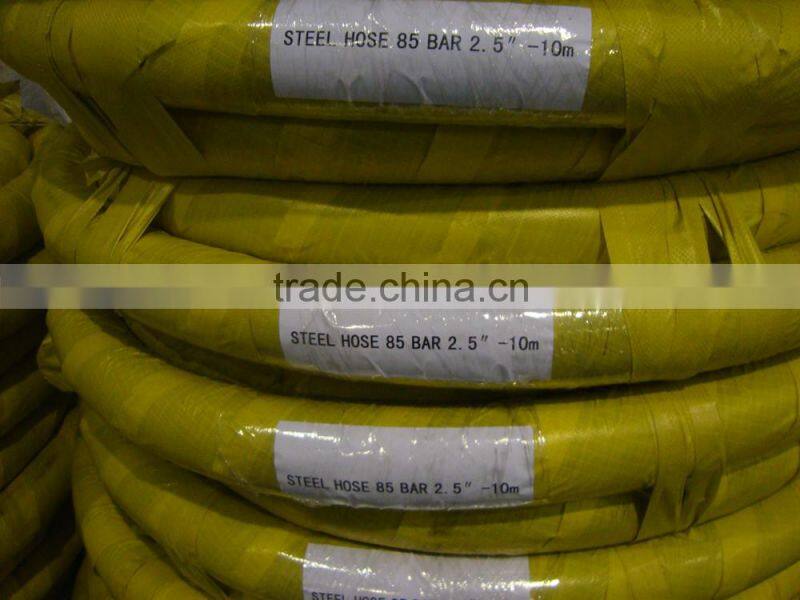

Concrete delivery hose pictures



Established : in 2000
Location : Yanshan County, Hebei Province, China, near to Tianjin Xingang Port
Occupy Area : 33330 square meters
Market Distribution :North America, South America,Asia, the Middle East,, Europe, Africa, etc
Certification :ISO9001-2000
Production Equipments : two sets of automatic welding machine, automatic numerical control machine tool, electrostatic spraying powder machine, heat treatment facility etc
Service Concepts : high efficiency, reliable quality, satisfied service, timely delivery
Business Field : concrete pump twin wall pipe, concrete pump hardened pipe, concrete pump ST52 pipe, concrete pump twin wall elbow, concrete pump cast elbow, concrete pump flange,concrete pump reducer, concrete pump rubber hose, concrete pump clamp coupling, rubber gasket, clean out ball and cylinder, concrete pump piston, concrete pump wear plate and cutting ring
For more information, please contact me or mail me.
