Mobile container yard loading ramp
- 3000 Set / Sets per Month
- Qingdao port
- T/T
You May Like
Product Details
| Place of Origin | Shandong, China | Brand Name | SDLIFT | |
| Model Number | YZCQ6-0.9 | Lift Mechanism | Other, hand pump | |
| Lift Drive / Actuation | Hydraulic | Power | 0.75kw - 2.2kw | |
| Rated Loading Capacity | 6000kgs | Min. Lifting Height | 0.9m | |
| Max. Lifting Height | 1.8m | Table Size | 10.5m x 2m | |
| Overall Dimensions | 10.5m x 2.1m x 1.3m | Weight | 2680kgs | |
| Certification | CE ISO9001 | Warranty | 24 Months | |
| After-sales Service Provided | Overseas third-party support available |
Product Description
Shandong Lift Machinery 2 Years Warranty

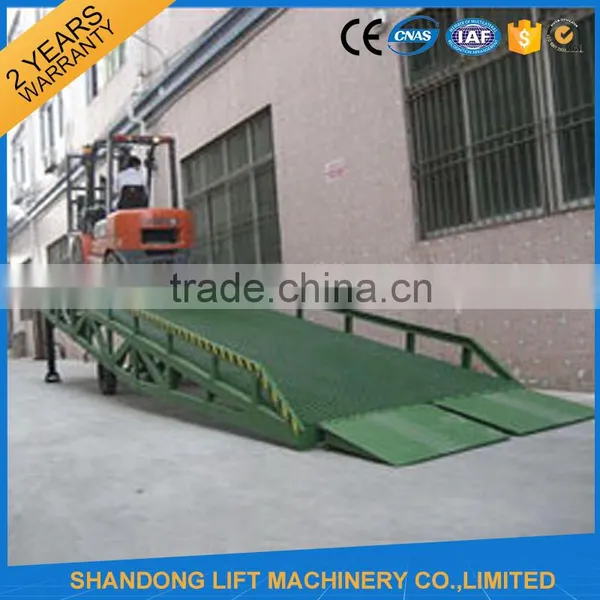

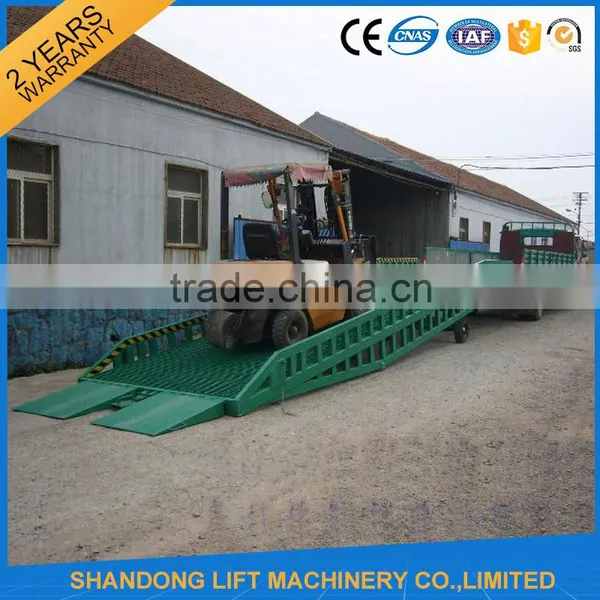

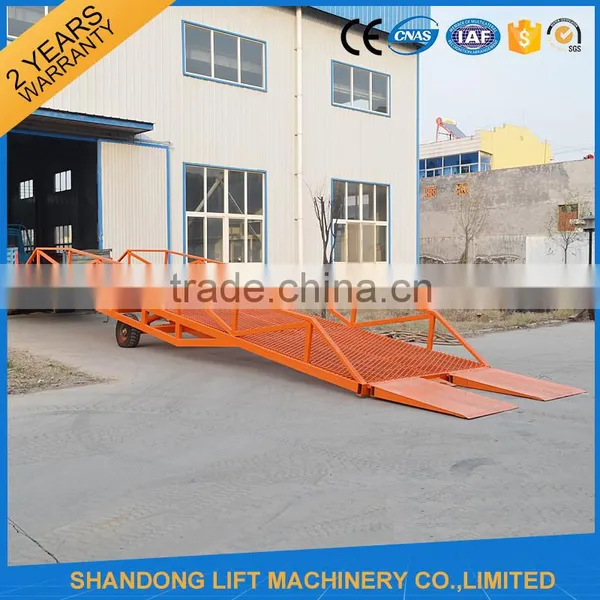

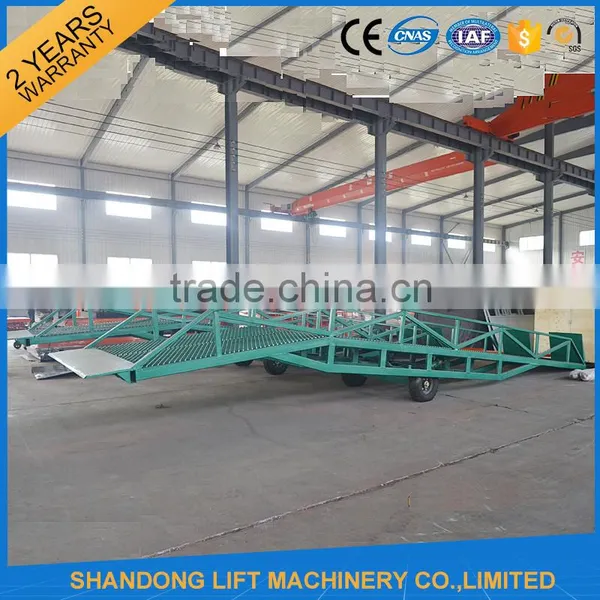

Mobile container yard loading ramp:
Application:
The mobile container yard ramp is an equipment associated with forklift to load and unload cargo.
The person can drive forklift directly to truck or container through the ramp. Only one person, the whole loading and unloading work can be done. It will reduce abundant labors, accelerate cargo transferring speed, improve the productivity greatly, and get more benefits.
The models list:
Model No. | Capacity(kg) | Length(mm) | Width(mm) | Min. Height(mm) | Max. height(mm) | Lift system |
YZCQ6-0.9 | 6000 | 10500 | 2080 | 900 | 1800 | hand pump or electrical |
YZCQ8-0.9 | 8000 | 10500 | 2080 | 900 | 1800 | hand pump or electrical |
YZCQ10-0.9 | 10000 | 10500 | 2080 | 900 | 1800 | hand pump or electrical |
YZCQ12-0.9 | 12000 | 10500 | 2080 | 900 | 1800 | hand pump or electrical |
YZCQ15-0.9 | 15000 | 10500 | 2080 | 900 | 1800 | hand pump or electrical |
Parameters:
Advantage:
1) Competitive price
2) Reliable quality
3) Good service, keep innovations
4) Easy operation with hand pump
5) Adjustable safety chain
6) High strength meshwork steel
7) Heavy-duty formed steel side girders
8) Collocate ding brake cushion
9) With strong landing leg for supporting load and unload for truck or container
Products showing:
The workshops:
The Certificates:
The customers visiting:Our services:
1) We can design the mobile container yard ramp as per your requirement.
2) The most suitable mobile container yard ramp will be recommended to you once we get your requirement.
3) Shipment can be arranged from our port to your destination port.
4) Operation video can be sent to you if needed.
5) User-friendly English manual for machine installation using and maintenance.
6) 2 years warranty for whole machine without man-made faults.
7) We will send you parts for free if there are any non-human factors faults during warranty time.
8) Supply 24-hours technical assistance by email, telephone or other communication online.
9) We could reply you in 2 hours after received your any questions even on weekend and holiday.
Engineers are available to your country if necessary.
