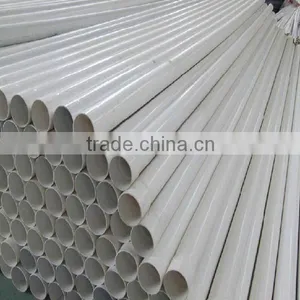

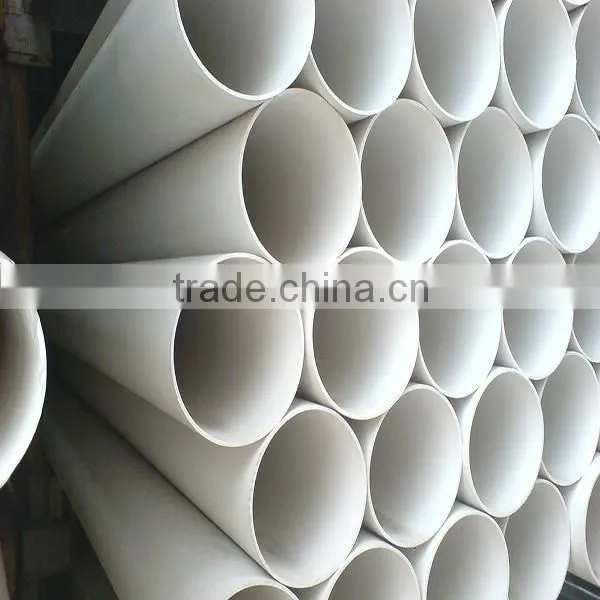

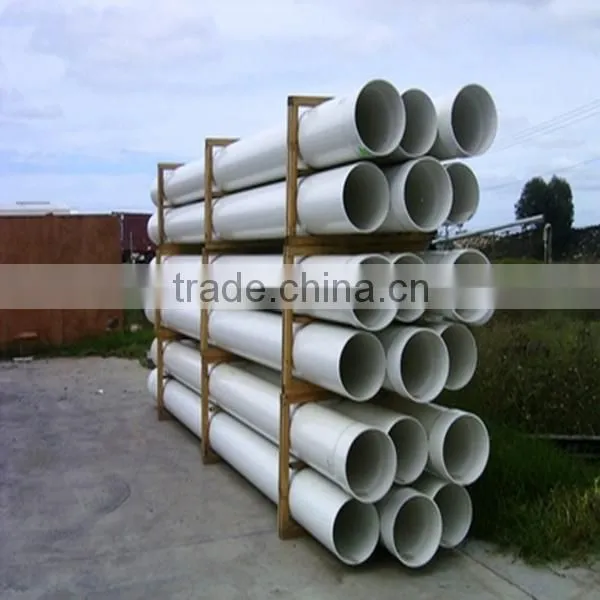

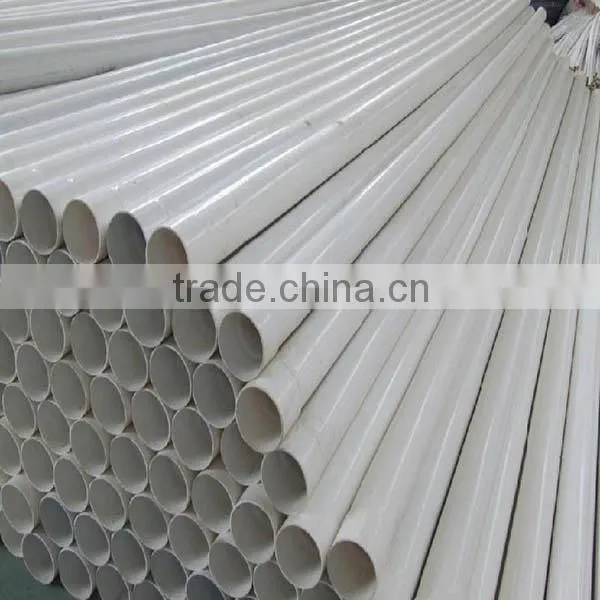

Environmental Standard 8 Inch Pvc Irrigation Pipe on Sale

Environmental Standard 8 Inch Pvc Irrigation Pipe on Sale photo-1
Environmental Standard 8 Inch Pvc Irrigation Pipe on Sale photo-2
Environmental Standard 8 Inch Pvc Irrigation Pipe on Sale photo-3
Environmental Standard 8 Inch Pvc Irrigation Pipe on Sale photo-4
Environmental Standard 8 Inch Pvc Irrigation Pipe on Sale photo-5
Environmental Standard 8 Inch Pvc Irrigation Pipe on Sale photo-6
US$ 0.04 - 0.1 MOQ: 3000 Meters
Key Specifications
Get Latest Price
Place of Origin:
Henan, China
Brand Name:
GM
Model Number:
8 inch pvc irrigation pipe
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Henan, China
Brand Name GM
Model Number 8 inch pvc irrigation pipe
Material PVC
Specification 20-200mm
Length 1m-6m
Thickness 0.8mm-3.0mm
Standard ISO9001
PVC drain pipe

Hot-sale PVC drain pipe & fitting

PVC drain pipe is sanitary grade polyvinyl chloride (PVC) resin as the main raw material, adding an appropriate amount of stabilizers, lubricants, fillers, coloring agents and the like through a plastic extruder and injection molding machine injection molding by cooling, curing, stereotypes, testing, packaging and other processes to complete the pipe, tube production.

Performance——PVC drain pipe

Project
Standards
Material
PVC
Size
20-800mm
Color
White,grey or asd your requirements
Media
Water
Tensile yield strength
≥40MPa
Vicat softening temperature
≥90℃
Flat test
no rupture
Drop hammer impact test
≤10%

Appearance
outer wall smooth, flat, it does not allow any air bubbles, cracks and visible scar patterns, depression, uneven color and discoloration decomposition line
Size
diameter wall thickness
GB/T5836.1-2006
 GB/T5836.1-2006
The same cross-sectional thickness deviation
≤14%
Longitudinal retraction rate
≤5%

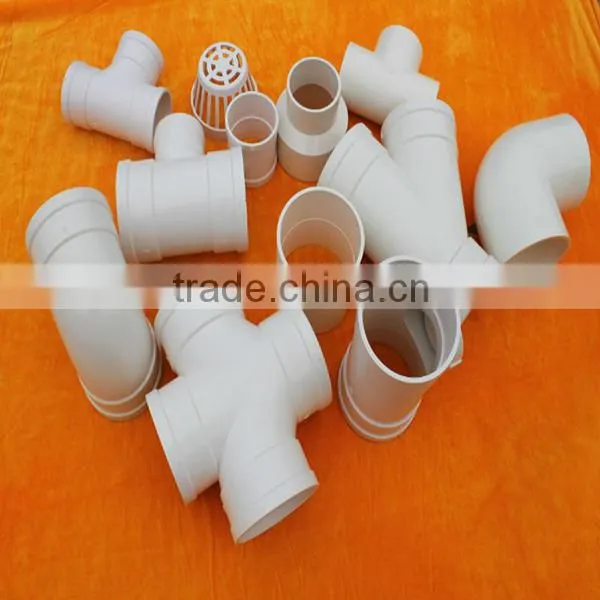

Performance——PVC drain pipe fitting

Project
standard requirement
Vicat softening temperature
≥74℃


Oven Test
Specimens shall be no blistering, chipping and cracking patchwork; around the injection site is not allowed to penetrate the thickness of the point defects 50%; at the patchwork line not used to allow the through-wall cracking
Drop test
No rupture


Exterior
Fittings inside and outside smooth surface, does not allow any air bubbles, cracks and visible scar patterns, depression, uneven color grade discoloration decomposition line, pipe fittings should be complete no defects, sprue and overflow edge should repair a flat, white color

Size (MM)
bearing inner diameter of the mouth portion of the wall thickness of the socket depth
Compliance with tolerance requirements in line with GB / T5836.2-2006 minimum wall thickness is greater than or equal to the same size pipe.
Product Application

Advantages


✪ Non-conductive: Good insulation, assuring a safe system.
✪ Smooth surface: Small friction coefficient to ensure the cables go through smoothly
✪ Fire resistance: Self-extinguishing, do not support combustion.
✪ Corrosion Resistance: Resistant to acids, bases and salts, assuring a lower maintenance
     cost and a longer performance life.
✪ Impact strengths: Resistant to compression and impact, suitable to be buried in concrete.
✪ Easy Installation: solvent cement and threading joining.

Application

♦ Municipal water supply.
♦ Commercial & Residential water supply.
♦ Garden, farm, agriculture irrigation.
♦ Industrial liquids transportation.
♦ Soil and waste discharge pipelines (low
    and high temperature) inside buildings.
♦ Rainwater pipelines inside the building.
♦ Farm, garden or agriculture irrigation.
♦ Buried drainage pipelines without pressure
    on the ground.
