Mobile Adjustable Scissor Suspended Electric Scaffolds Platform
- 3000 Unit / Units per Month
- Qingdao Port
- T/T
Product Details
Place of Origin: | Shandong, China | Brand Name: | OEM | Model Number: | SJY0.5-12 |
Material: | Steel | Feature: | Folding Ladders, Telescopic Ladders | Type: | Domestic Ladders |
Structure: | Combination Ladders |
Product Description
Shandong Lift Machinery 2 Years Warranty
Mobile Adjustable Scissor Suspended Electric Scaffolds Platform :
Application:
The electric scaffold platforms is widely used for aerial work, decoration, street lamp maintenance and building cleaning etc.
Product List:
Model | Capacity | Table size | Max height | Work height | Total dimension | Net weight |
SJY0.3-4 | 300Kgs | 1500×750mm | 4m | 5.7m | 1850×900×1900mm | 400Kgs |
SJY0.3-6 | 300Kgs | 1500×750mm | 6m | 7.7m | 1850×900×1970mm | 650Kgs |
SJY0.3-8 | 300Kgs | 1650×1000mm | 8m | 9.7m | 2100×1200×2460mm | 1200Kgs |
SJY0.5-8 | 500Kgs | 1980×1220mm | 8m | 9.7m | 2500×1550×2380mm | 1400Kgs |
SJY0.8-8 | 800Kgs | 2000×1220mm | 8m | 9.7m | 2600×1550×2640mm | 1700Kgs |
SJY0.3-10 | 300Kgs | 2100×1220mm | 10m | 11.7m | 2700×1550×2380mm | 1500Kgs |
SJY0.5-10 | 500Kgs | 2100×1220mm | 10m | 11.7m | 2700×1550×2380mm | 1600Kgs |
SJY1.0-10 | 1000Kgs | 2220×1220mm | 10m | 11.7m | 2820×1720×2850mm | 2380Kgs |
SIY0.3-12 | 300Kgs | 2550×1500mm | 12m | 13.7m | 3150×1860×2850mm | 2580Kgs |
SIY0.5-12 | 500Kgs | 2550×1500mm | 12m | 13.7m | 3150×1860×2850mm | 2780Kgs |
SJY1.0-12 | 1000Kgs | 2600×1500mm | 12m | 13.7m | 3200×2015×3090mm | 3580Kgs |
SJY0.3-14 | 300Kgs | 2990×1600mm | 14m | 15.7m | 3600×2000×2850mm | 3000Kgs |
SJY0.5-14 | 500Kgs | 2990×1600mm | 14m | 15.7m | 3600×2000×2850mm | 3200Kgs |
SJY0.3-16 | 300Kgs | 3230×1600mm | 16m | 17.7m | 3700×2000×3030mm | 3900Kgs |
SJY0.3-18 | 300Kgs | 3230×1600mm | 18m | 19.7m | 3700×2000×3250mm | 4500Kgs |
SJY0.3-20 | 300Kgs | 3230×1600mm | 20m | 21.7m | 3700×2000×3450mm | 5100Kgs |

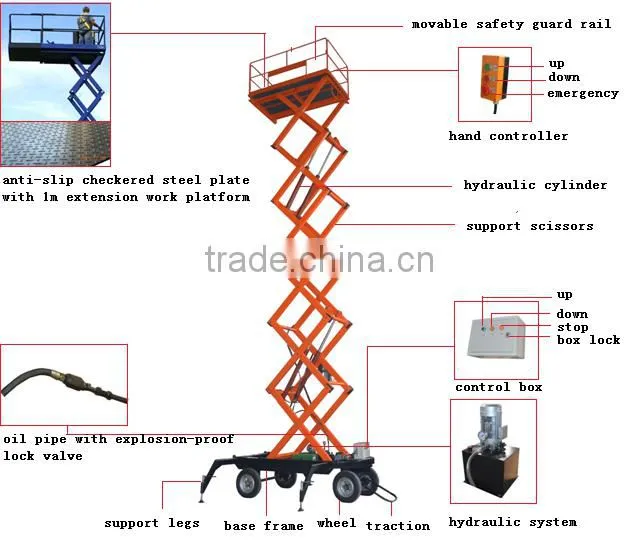

Parts Showing:
Configuration:
1) Platform Material:120mm*60mm rectangular tube +6mm checkered iron
2) Scissor material: 160mm*80mm*6mm high strength Manganese Steel.
3) Hydraulic system: 380V/3.0Kw
4) High Precision Hydraulic Cylinder: 90*4sets
5) Piston Rod: 50*4 hard chromium plating surface.
6) High-pressure oil pump
7) Hydraulic oil: summer 46#, winter 32#
8) Controller: 1 control box below, 1 control panel above platform
Safety:
1) Explosion-proof lock valve to avoid a sudden drop if emergency occurs.
2) The safety rails to guarantee safety of the people above work platform.
3) The limit switch system helps the electric scaffold platforms to stop at accurate position.
4) Electricity leakage protection device is equipped on, all electric components are CE certified.
5) All the electric scaffold platforms are passed 1.2 times loading test before leaving factory.

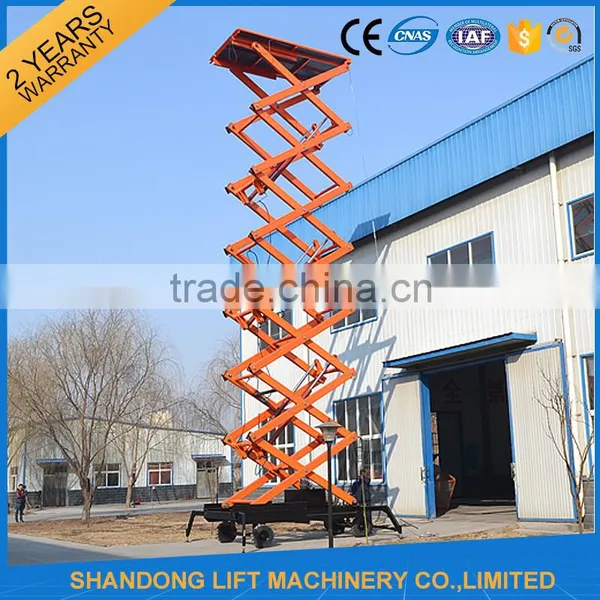

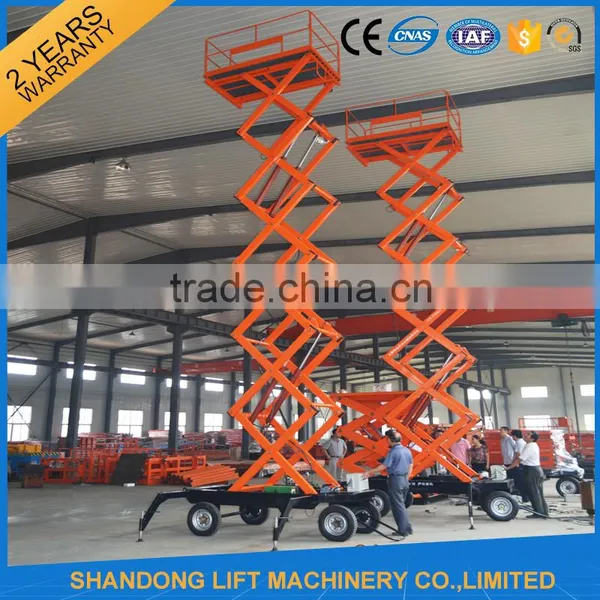

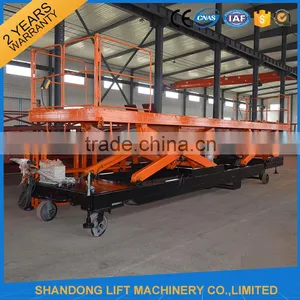

Product showing:

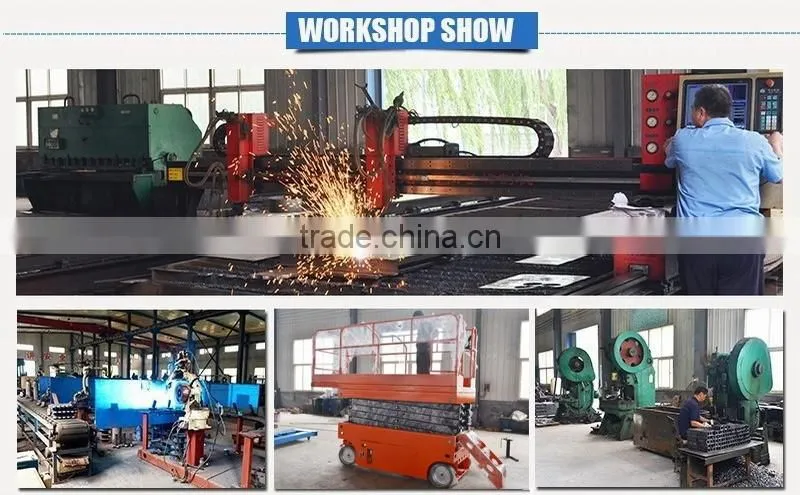

The workshops:
Packing and delivery:
The customers visiting:
The Certificates:
Our Services
1) We can design the customerized electric scaffold platforms as per your requirement.
2) The most suitable electric scaffold platforms will be recommended to you once we got your requirement.
3) Shipment can be arranged from our port to your destination port.
4) Operation video can be sent to you if needed.
5) User-friendly English manual for machine installation using and maintenance.
6) 2 year warranty for whole machine without man-made faults.
7) We will send you parts for free if there are any non-human factors faults during warranty time.
8) Supply 24-hours technical assistance by email, telephone or other communication online.
9) We could reply you in 2 hours after received your any questions even on weekend and holiday.
Engineers are available to your country if necessary.
