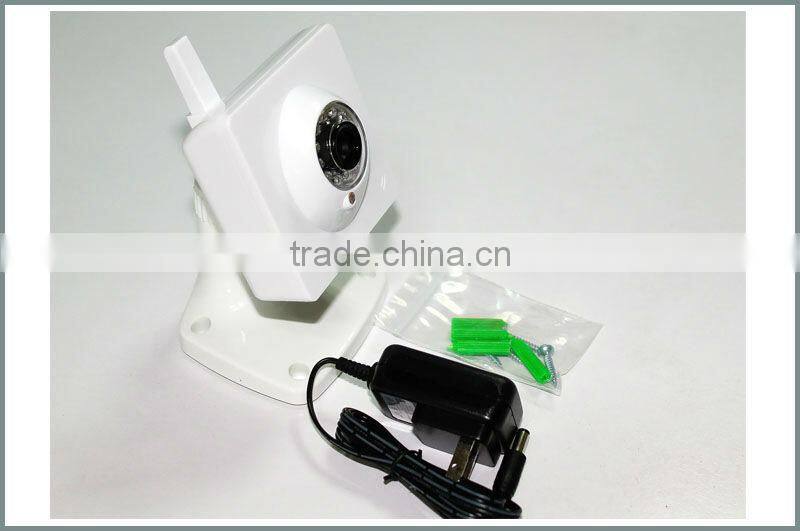

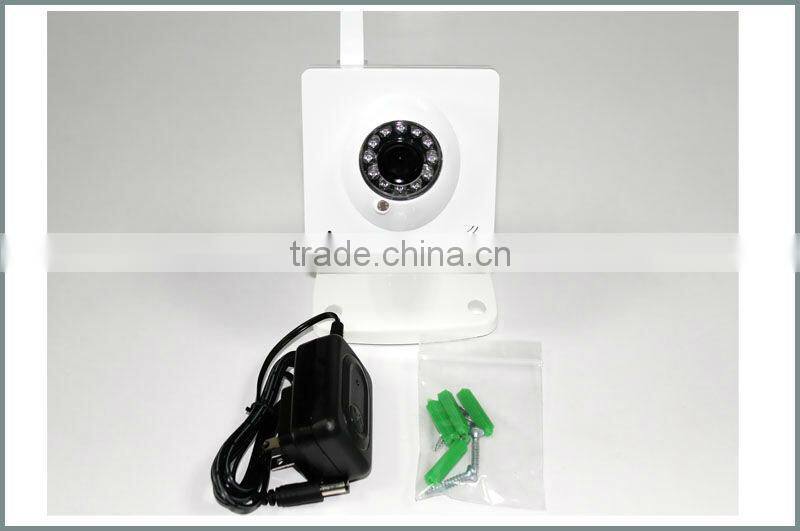

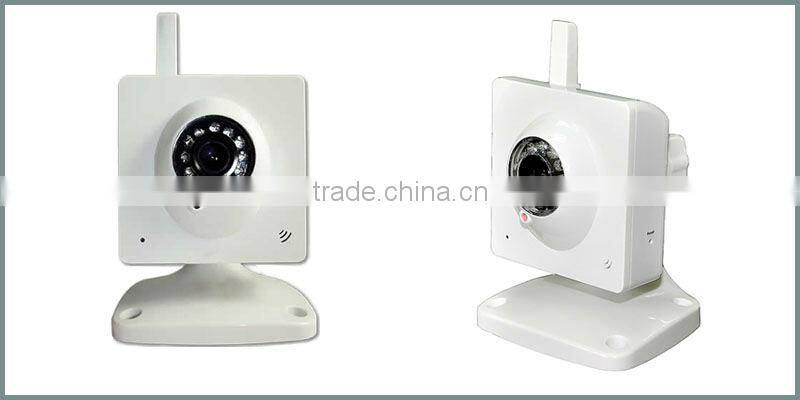

HVCAM HV-72PIC H.264 720p P2P IP Camera

Model

HV-72CIC

Platform

Smart Phones

Android, IOS app in CD


sensor

Sensor

1/4’’ CMOS sensor

Display resolution

1280*720P

Lens

F: 3.6mm,

Minimum illumination

0.5Lux, 0 Lux (IR ON)

Viewing Angle

67°, with universal bracket

Audio

Input/ output

Linear input/output, two-way voice intercom

Audio compression

ADPCM

Video

Video compression

H.264

Working frequency

50Hz, 60Hz

Image frame rate

25fps @ 1280*720P

Image resolution

1280*720P, 640*480(VGA), 320*240 (QVGA)

Image adjustment

Brightness, contrast, saturation and hue can be adjusted

White balance

Automatic

Infrared mode

Automatic / manual

Night vision

12*F5 infrared lights, infrared irradiation distance: 10-12 meters

Network

Supported protocol

HTTP,FTP,TCP/IP,UDP,SMTP,DHCP,PPPoE,P2P,UPnP,GPRS

Wireless standard

WIFI(IEEE802.11b/g/n)

P2P

No Need to do Port forwarding, Easy to USE

Support IP addresses

Static and dynamic IP address

Alarm

Alarm detection

Motion detection

Alarm notification

Support Email, FTP alarm notification

Hardware Interface

Power interface

DC 5V/2.0A (EU, U.S. adapter or other types optional), power consumption <5W

Audio input / output interface

1 built-in MIC, 1 audio output socket

Reset button

1 reset button

Wireless interfaces

1 WIFI external antenna interface

Environment

Operating temperature

0° ~ 55°C  (32°F ~ 131°F)

Operating humidity

10% ~ 80% (non-condensing)

Storage temperature

-10°C ~ 60° (14°F ~ 140°F)

Storage Humidity

0% ~ 90%(non-condensing)

Specification

Gross Weight

440g

Packing size

184 x150x 110mm (L*W*H)

PC Requirements

CPU

2.0GHz or above ( suggested 3.0GHz )

Memory size

256MB or above (suggested 1.0GB)

Graphics card

64MB or above

OS

Microsoft Windows 2000/XP, Vista, Windows7, Mac OS, Linux

Browser

Above IE6 ,Firefox or other standard browser

Trade Terms

Lead Time

sample in 2 days when receive deposit ,and in 10 days below 500pcs

Certificates

CE,FCC,ROHS
