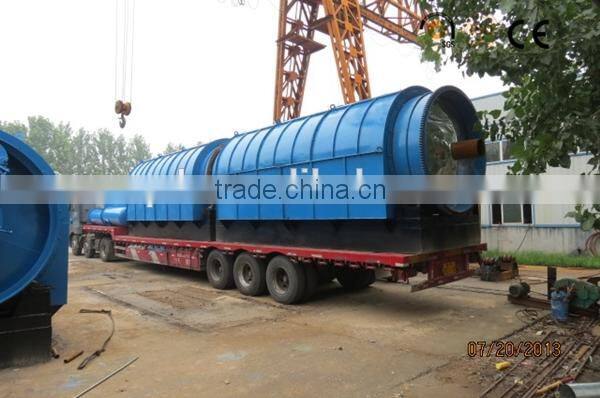

300 square meters need used tyre horizontal pyrolysis plant

1.vertical reator

2.feeding raw material machine

3.sub-package

oling dust system

5.2nd remove dust chamber

6.heavy oil tank

7.oil and water separate tank

8.water cooling system

9.water seal

10.test pressure and temperature system

11.electricity control system

ndensation system

13.waste gas burning system

14.remove dust and sulphur system

15.total area: 300 square meters

 horizontal pyrolysis plant

First, the raw materials are put into the furnace, then seal the feed inlet then the bottom of the reactor will slowly heat the wastes by coal or electricity. When the temperature reaches the degree of 250 to 280, we will get the crude oil, the oil steam will be continuous produced until the temperature reaches 300-400°C; oil steam will flow through light and heavy components separating device; light component will enter the condenser and meanwhile the residues will be discharged automatically in succession. But the liquefied part will be condensed to rubber oil, and the part that cannot be liquefied will be input into heating supply system for burning by way of combustion gas purification system.

The characters of Equipment--horizontal pyrolysis plant

a.horizontal pyrolysis plant--

This achievement essential equipment-plit processor adopts the horizontal type revolving structure, the catalyzed split craft and

the product chemistry extract technology.

b.horizontal pyrolysis plant--Provides the environmental protection equipment is perfect. For instance waste gas burner and smoke dust removal room.

c.horizontal pyrolysis plant-

Adopts the simple chemistry method, has solved the product color and the unusual smell.

d.horizontal pyrolysis plant--

The oil extraction rate of the pure waste plastic is not lower than 50%

e.horizontal pyrolysis plant--

This equipment design is reasonable, manufacture craft is advanced, high automatically, and the complete safety equipment .

f.horizontal pyrolysis plant--

feeding raw material and  Auto slag quickly ,300KG carbon black only need 30min

The Raw material and Industries--horizontal pyrolysis plant

    a. Waste tyre/scrap tire/wire (oil extraction 45%)

    b. Waste rubber and products based on rubber (oil extraction 65%)

    c. Waste plastic and products based on plastic (oil extraction 50%)

Final products(raw material: tyre)--horizontal pyrolysis plant

  a. Heavy crude oil: 45%

  b.Carbon black: 37%

  c.Steel wire: 13%

  d. Gas: 5%

 Security & Environmental friendly--horizontal pyrolysis plant

The main equipment is of high safety. The phase of the unliquefizable waste gas produced during the process is alkyl

from C1 to C4, which is dangerous when burning directly. In our process, it is transferred first through a water close

device and a safety device- burning air muzzle. Before burning, we should ensure the safety of production.
