Item |
Production Capacity |
|
Layer Counts |
1L-28L HDI |
|
Material |
CEM1, CEM3, FR-4 High TG FR4, Halogen-free FR4, |
|
aluminium, Ceramic(96%Alumina), Teflon.PTFE(F4B, F4BK) | ||
Rogers(4003.4350.5880), Taconic(TLX-8.TLX-9), Arlon(35N.85N) | ||
Material Mixed Laminate |
FR4 + Ro4350.FR4 + Aluminium.FR4 + FPC |
|
Board Size |
Maximum Size |
610mm*1200mm |
Minimum Line/Space |
0.10mm |
|
Board Thickness |
0.125mm--6.00mm |
|
Out Layer Copper Thickness |
17um-175um |
|
Inner Layer Copper Thickness |
17um-175um |
|
Mini Solder Mask Bridge |
0.05mm |
|
Board Tolerance |
Board Outline Tolerance |
±0.15mm |
Thickness Tolerance |
t≥0.8mm ±8% |
|
t<0.8mm ±10% | ||
Hole Position/hole Tolerance |
±0.05mm PTH: ±0.076mm NPTH: ±0.05mm |
|
Trace width Tolerance |
15%-20% |
|
Drilling |
Minimum Drilling Hole(Mechanical) |
0.2mm |
Minimum Laser hole |
0.1mm |
|
Mini hole ring(single) |
0.075mm |
|
Surface Finishing |
HASL, Lead free HASL, Immersion gold, Immersion tin, Immersion Silver, Plated gold, OSP, Carbon ink |
|
Acceptable File Format |
ALL Gerber Files, CAM-350, PROTEL, PADS2000, CAD, ORCAD, P-CAD, CAM2000, ect |
|
Quality Standards |
IPC-A-600F and MIL-STD-105D CHINA GB 4558 |
|

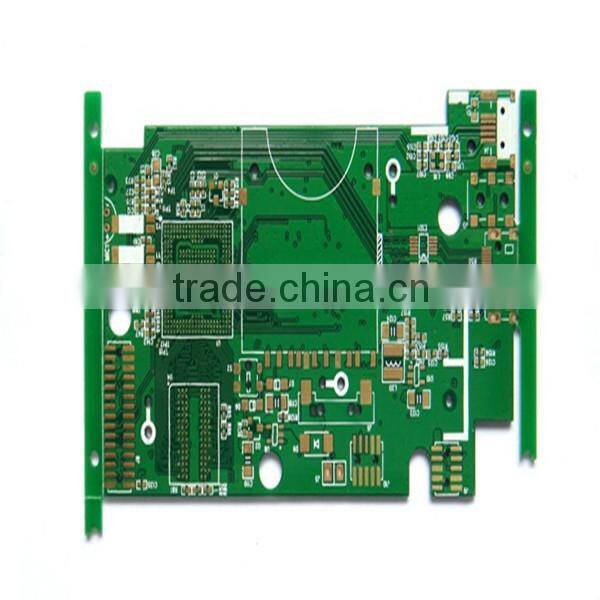

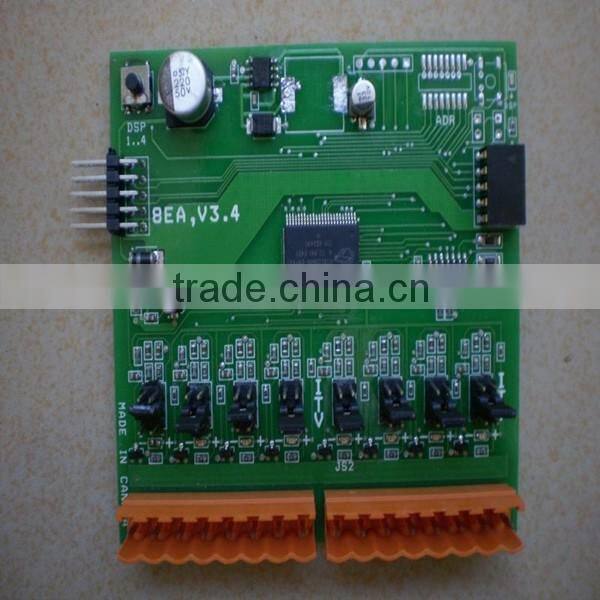

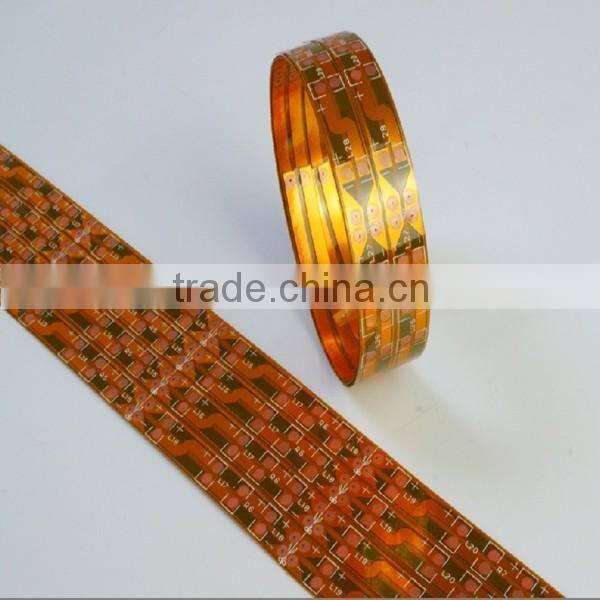

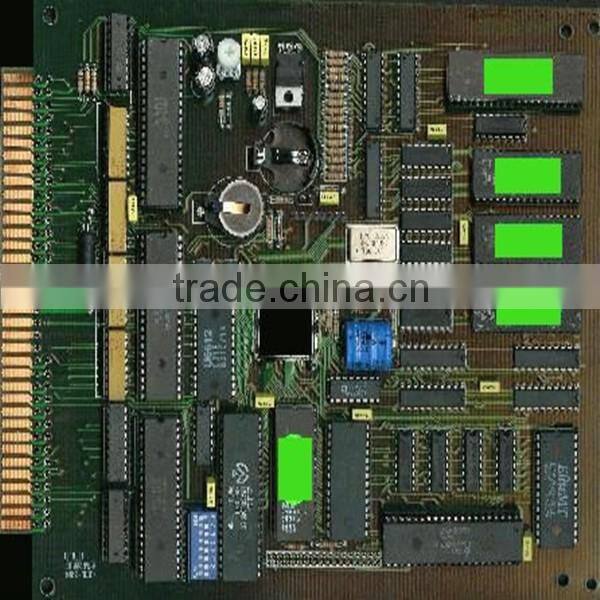

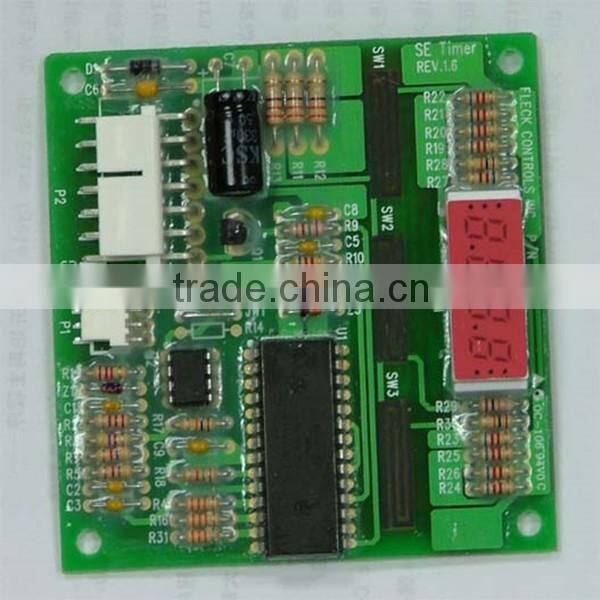

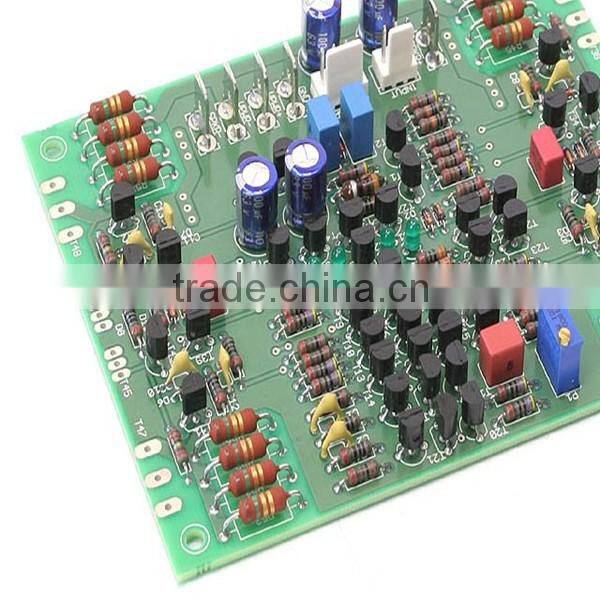

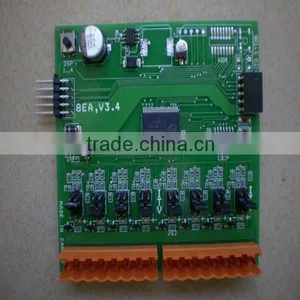

Images for China high quality forced tube pcba assembly , pcba manufacture
Sidereal technology corporation Ltd deals in the development and production of printed circuit boards (PCB) including HDI buried via and FPC as well as PCBA over years.
Our PCB products are widely used in telecommunications, industrial control area,consumer electronics, automotive electronics and other fields.
Our SMT factory has many assembly lines, including Professional SMT, DIP after welding and projects assembly so that we can offer you a quick quotation, fast mass production and delivery, especially for the samples and small orders. Our PCB Assembly Technology makes standard work flow, rapid response to the customer's requirement, on time assembly and effective lead time as well as customers' leading position in the market possible.
Having optimized manufacturer and electronic solutions company resources, our company business has reached the point of producing and manufacturing terminal electronic products at present! With the continuous competitiveness, it is our common choice and mutual goal to look for a path better in line with market rules!

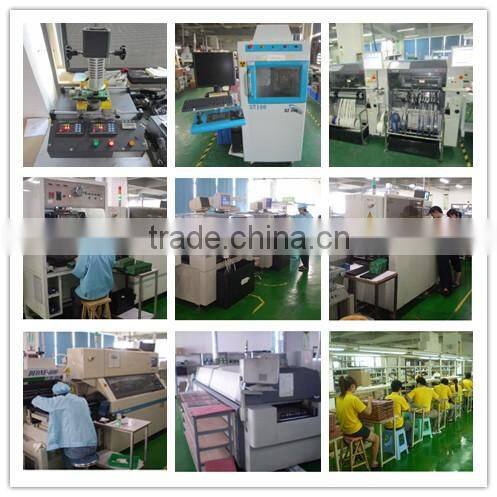

Factory Room
Our market
Q1: Are my PCB files safe when I submit them to you for manufacturing?
We respect customer’s copyright and will never manufacture PCB for someone else with your files unless we receive written permission from you, nor we'll share these files with any other 3rd parties.
Q2: What’s the lead time?
For sample, it’s about 3~7 days once everything was confirmed.
For mass production, it’s about 7~15 days once everything was confirmed.
Q3: What’s your payment term?
T/T, Western Union, L/C
Q4: How about the packaging?
Inner vacuum packing + outer standard carton box , your special packages requested is available.
Q5: How can I get the goods?
We will ship the goods to you by FedEx, DHL, UPS, EMS, door to door service, you can get the package at home. All depend on your request.
