Specifications

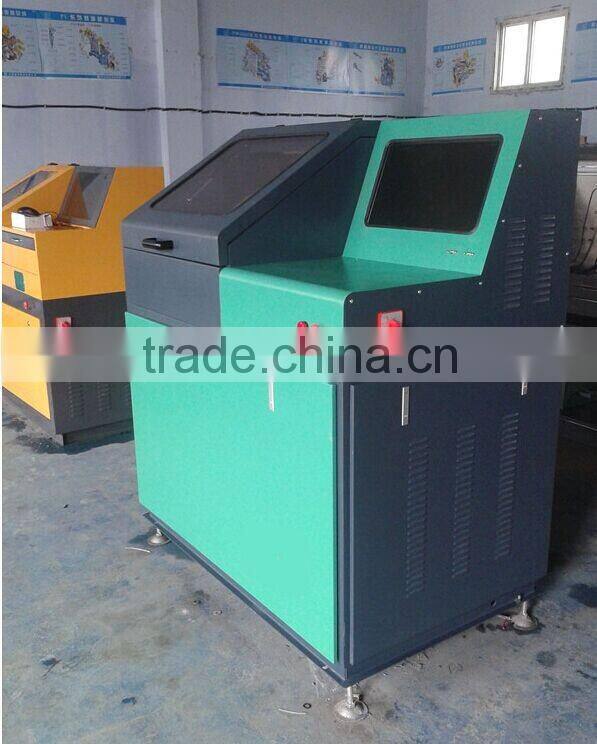

Common Rail System Test Bench1.Easy to operate
2.New design
3.Can fully test common rail injector
Brief Introduction
Our product adopts full-automatic control, and can perform maintenance test of Euro III, Euro IV, EuroV injector and high-pressure pump conveniently. It can test hundreds of kinds of injector and high-pressure pump including BOSCH, SIEMENS, DELPHI, DENSO, Caterpillar etc. with complete experimental data. This test bench, integrated with original imported high-precision flow sensor, has functions: automatic measurement of oil quantity and automatic generation of fuel pump nozzle maintenance report etc.. Product can add EUP/EUI test module.
Product Characteristics
1)Full Automatic Control
After installing the to-be-test pump or injector, click “Start”, the bench will automatically adjust each test condition and test such as measuring fuel, generating test reports, judging the qualification, etc.
2 )Automatic Calibration
When testing a new injector, the bench can automatically adjust the parameters of each working condition, collect and save the data, and generate standard data for repairing it, according to electrical characteristics of the new injector.
3) Intelligent Diagnosis
Via adopted intelligent troubleshooting mechanism, the bench can self-test harness connections, DRV blockage, working conditions, etc and prompts users.
4)Multiple Protection
Overheating, overvoltage, and overload protection; tank oil shortage tips; too high rail pressure protection; automatic shutdown as soon as operating room cover is set off; six filters protection; etc.
Injector Test
Equipped with Bosch original imported CP3 pump and high-pressure fuel rail with DRV, can drive 6- cylinder solenoid valve and Piezoelectric injector, to carry out injector test under different working conditions
Can select number of injector cylinder to carry out automatic measurement cylinder by cylinder, test bench RPM, Automatic steering control, and automatic rail pressure regulation, maximum up to 2000Bar, can stabilize within 10Bar, and can measure oil amount and generates report automatically.
After comparing experimental data of hundreds of kinds of injectors, it can automatically judge the injector to be tested is good or not via reports.
All injector drive channels have short circuit protection function.
Fuel Pump Test
Can drive different kinds of high-pressure pumps like Bosch CP1/CP2/CP3, Delphi CRSP, Denso HP3/HP4, Siemens DCP and Denso HP0 pump.
Test bench RPM, Automatic steering control, Automatic rail pressure regulation, the maximum can reach 2000Bar,can stabilize within 10Bar, and can measure oil amount and generates report automatically.
After comparing experimental data of hundreds of kinds of injectors, it can automatically judge the injector to be tested is good or not via reports.
All high pressure pump drive channels have short circuit protection function.
Affiliated features
Data backup, system software update and data upgrade functions.
With tens of accessories, it is ensured to install and test different types of injectors and high-pressure pumps conveniently.

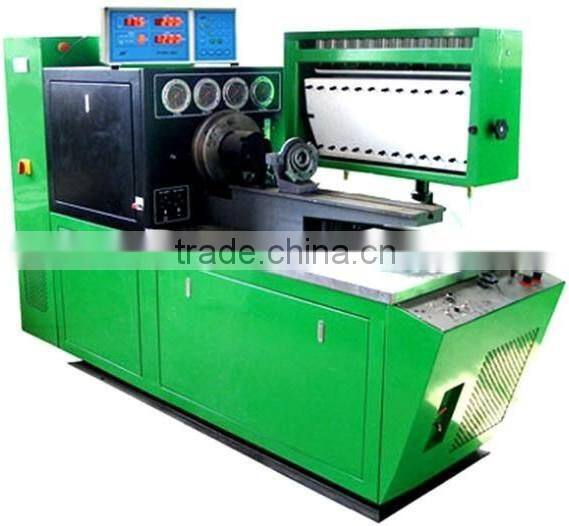

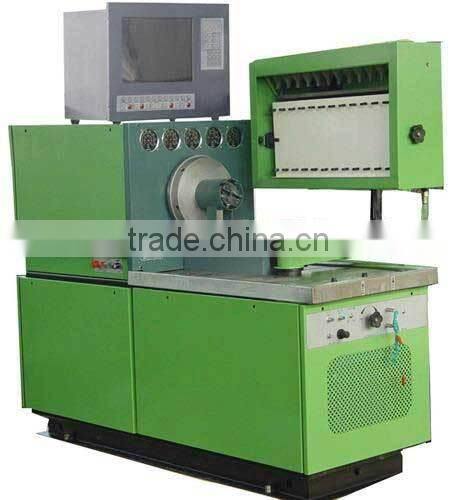

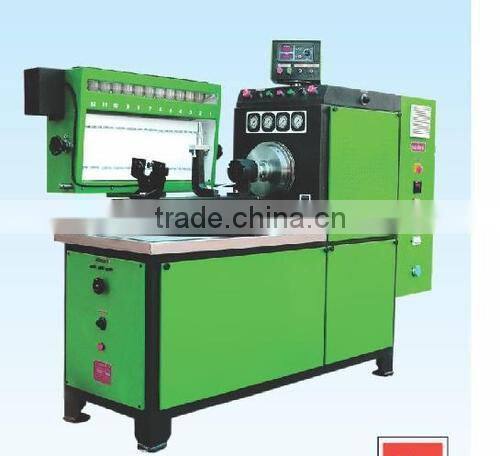

Introduction:
diesel fuel injection test bench is design for customer’s require. This series test bench adopt high quality frequency conversing device, and it has characteristic with hi-reliability, ultra-low-noise, energy save, high output torque,perfect auto-protecting function and operate easy. It is the kind of product with high quality and good price in our business.
Used for Bosch in line pumps of K,M,MW,A,B,BV,P(ZU,ZW,ZM) and BOSCH rotative distributor injection pumps EP/VA,EP/VM,VE….F…,
also used for Chinese pumps such as Ⅰ,Ⅱ,Ⅲ,K,P7,BQ.etc.
Characters
1.Variable frequency drive common rail oil pump produced the greatest pressure 250mpa
2.Rail pressure automatic loop control , shows the accuracy is 0.1mpa
3.Built-in common rail injector standard database , users can also automatically add data
4.Common rail injector standard database equipped with various types of wave data, output standard waveform signal to injector
5.Can detect the BOSCH, DENSO, DELPHI, SIEMENS, and so on each brand high pressure common rail injector
6.Industrial computer motherboard, embedded windows XP operating system
7.Injection quantity and back to the amount of oil to be automatic measurement, screens display
8.It can create a test data report, to be able to store and print (optional)
