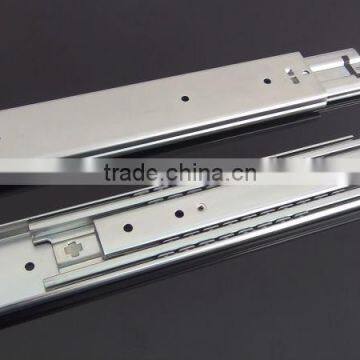

Help CenterBall Bearing Extra Heavy Duty Drawer Slide for Tool Cabinet
Related Products
-
76mm Wide Ball Bearing Extra Heavy Duty Drawer Rail for ATMUS$ 1 - 1.2MOQ: 1000 Sets -
90kg Loading(53/58mm Wide) Ball Bearing Extra Heavy Duty Drawer Track for Tool CabinetUS$ 1 - 1.2MOQ: 1000 Sets
-
76mm Wide Ball Bearing Extra Heavy Duty Drawer Slide for ATMUS$ 1 - 1.2MOQ: 1000 Sets
-
90kg Loading(53/58mm Wide) Ball Bearing Extra Heavy Duty Slide for Tool CabinetUS$ 1 - 1.2MOQ: 1000 Sets
-
90kg Loading(53/58mm Wide) Ball Bearing Extra Heavy Duty Draw Slide for Tool CabinetUS$ 1 - 1.2MOQ: 1000 Sets
Specifications
heavy duty slideLoading: Pass 90kg(53/58mm wide, 450mm long) 120kg(71mm wide, 450mm long) 220kg(76mm wide, 450mm)
Detailed info of ball bearing extra heavy duty drawer slide for tool cabinet
Name of slide |
ball bearing extra heavy duty drawer slide for tool cabinet |
Brand |
kav |
Model No. |
530, 580, 710, 760 |
Finish |
Black color, zinc color or as customer’s request |
material |
Cold rolled steel |
Length |
250mm—1200mm |
Material thickness |
1.8*1.8*2.0mm |
Load test |
Pass 90kg(53mm/58mm wide, 450mm long); 120kg(71mm wide, 450mm long); 220kg(76mm wide, 450mm long) |
Close-open test |
Pass 50,000 times |
Salt spray test |
Pass 48 hours |
Installation |
sidemount |
Application |
Furniture, cabinet, kitchen, bathroom, etc. |
OEM & Customizing |
OEM & Customizing is available. |
Product advantages:
1. Load capacity: Pass 90kg(53mm/58mm wide, 450mm long); 120kg(71mm wide, 450mm long); 220kg(76mm wide, 450mm long)
2. Easy put-in and take-out at a glance with 3 folds full extension design.
3. Our ball bearing slide has been sold more than 100,000,000 sets all over the world for now already, which proves that our products have high quality and competitive price.
4. With drawer connector, both installation and disassembling is easy and quick.
5. With special adjusting device, the difficulty of installation can be reduced by adjusting the construction error.
Why do you trust us?
1. Running business is as important as being an honest man. Therefore, honesty always comes first. Many clients have hesitation to choose suppliers on internet, because they are suspicious of the on-line suppliers’ honesty. Kingwen Liang is the leading figure of hinge-slide blog marketing, who owns “hinge expert explaining hinge” and “learning slide from expert”special columns, which catch the eye of many hinge-slide industry veterans, publishes several hundreds of industry related articles, which offer industry insiders and customer lots of valuable reference resources to learn more about marketing and installation and use of hinge and slide.
2. It’s another challenge for on-line supplier that customers will wonder if the supplier is an agent or manufacturer, can we get the hinge and slide with super quality and competitive price. Kav international Wantong factory is one of the earliest hinge-slide factories in China. In 1981, we started producing door&window hardware, window slide and electro plating. In 1991, we tried to focus on the research and development of powder coating slide. In 1995, we began to pay attention to the research and development of ball bearing slide, becoming the first Chinese factory which produced ball bearing slide. In 2000,we concentrated on the research and development of concealedhinge. In 2003, we were centered on the research and development of concealed slide. In 2006, we centered around the research and development of damperand launched soft close slide, double wall drawer slide and auto close hydraulic hinge. Our product has passed the international quality certification, SGS. What’s more, our products are exported to more than 100 countries and districts. If you want to knowmore about us, please review our company’s website: www.
3. Besides, there are more reasons you can trust us: several decades’ rich experience, launching market-oriented and high cost effective product, strong e-marketing promotion, lifetime warranty, perfect after-sale service, etc.
Kindly Reminder:
PAYMENT & SHIPPING & RETURN POLICY
More information:
1. If you want to know more about our hinge and slide or watch video for installation, please check our company’s website:
2. If you want to download our e-catalog, please check this link: /catalogue.html
