Specifications
1. cupboard meta door normal hinges2. 48h salt spray test
3. 50,000 close-open test
4. inset/half/full overlay

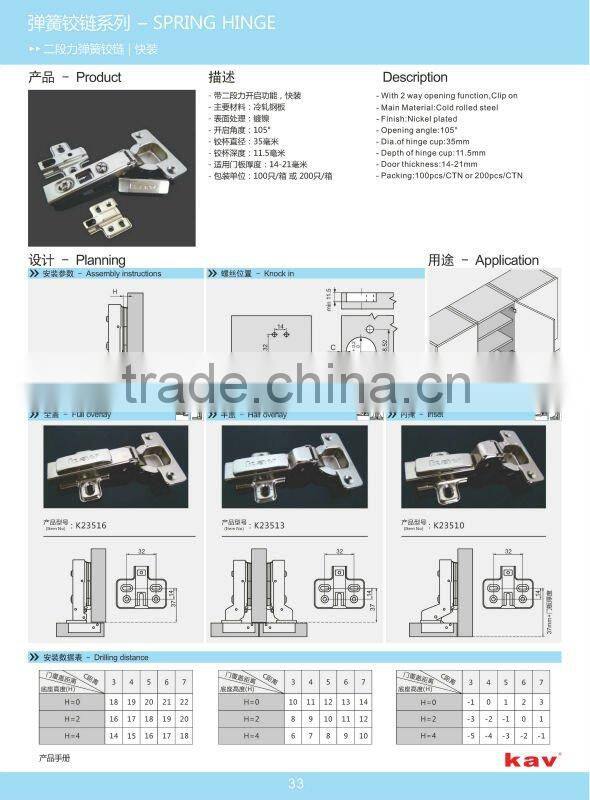

Detailed info of cupboard meta door normal hinges
Finish |
Nickel plated |
Material |
Cold rolled steel |
Load test |
7.5kg |
Salt spray test |
48 hours or 24 hours |
Open-close test |
50,000 times |
Dia. of hinge cup |
35mm |
Depth of hinge cup |
11.5mm |
Opening angle |
95—105 degree |
Pitch hole |
48mm, 45mm, 52mm |
Door of thickness |
12—29mm |
Type of hinge |
35mm cup slide on cabinet two way normal hinge |
Overlay |
Half overlay, full overlay, insert(embed, inset) |
Application |
Furniture, cabinet, kitchen, bathroom, etc. |
Product advantages:
1. Strengthened adjustable screw can widen the adjustable ranges and lengthen using life.
2. Widening manganese steel spring can disperse force when the hinge closed. Strengthened spring, thickness 2.5mm, Instead of common one thickness: 1.5mm
3. Adopting advanced hydraulic system, longer life time and smaller volume
800
