Home > Lights & Lighting > LED Lighting Decoration > LED Strip Light > Smd5050 Led Rigid Strip

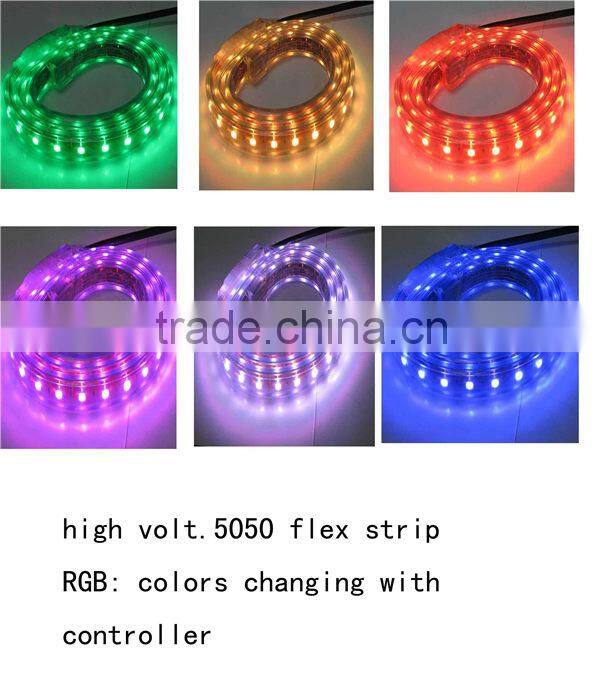

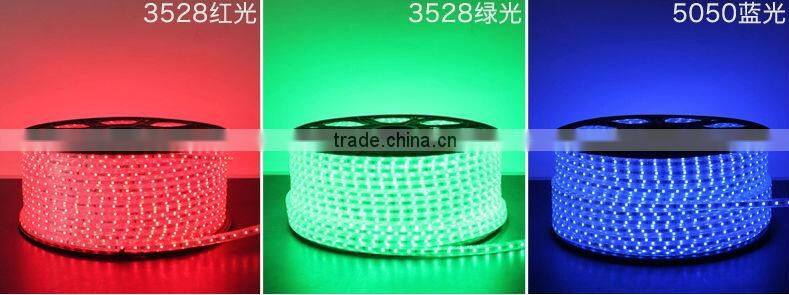

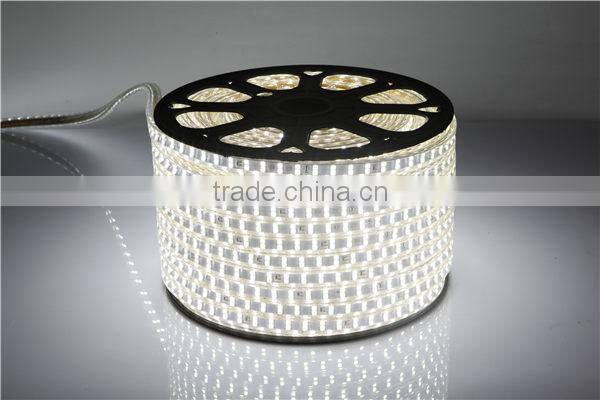

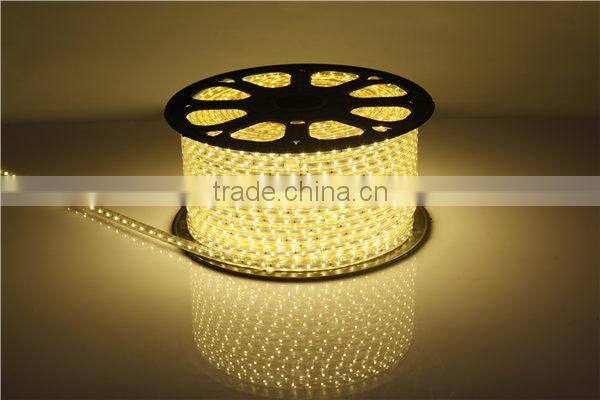

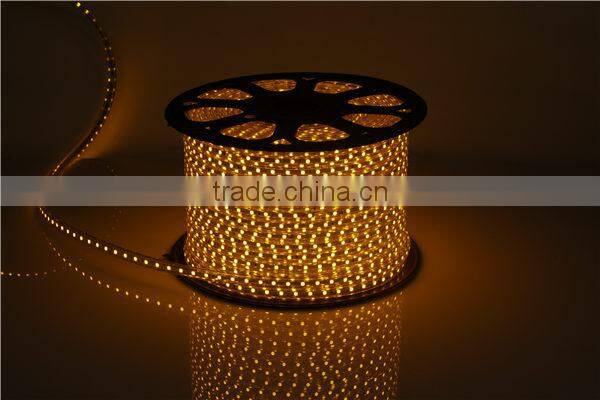

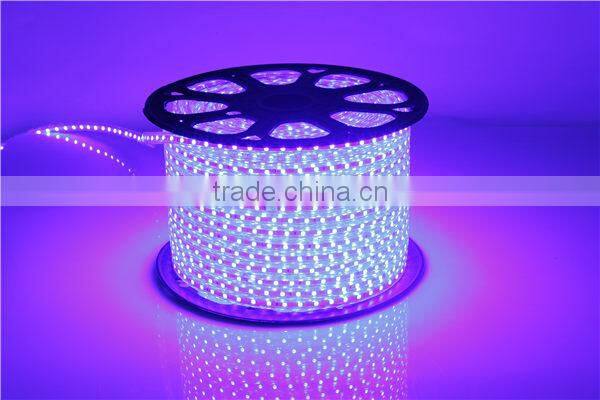

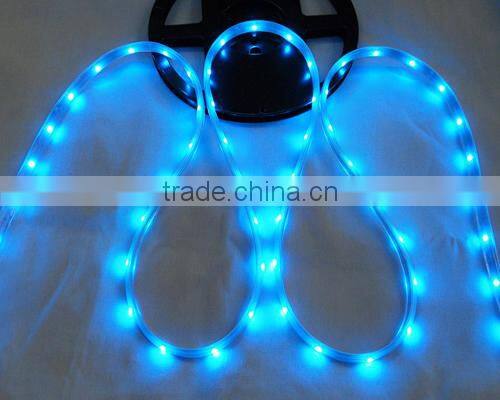

Smd5050 Led Rigid Strip

US$ 0.65 - 1.95 MOQ: 100 Meters

Key Specifications

Get Latest Price

LED Light Source:

Sanan /Epistar

Type:

Flex LED Strips

Input Voltage(V):

220

Contact Supplier Request Quote Chat Now

Zhongshan Guzhen Anli Lighting Factory

Payment & Shipping

Payment Methods:

Port of Shipment:

guangzhou

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

LED Light Source Sanan /Epistar

Type Flex LED Strips

Input Voltage(V) 220

Lamp Power 14.4

Lamp Luminous Flux(lm) 11-12

Color Temperature(CCT) 3000/6000

Working Temperature(℃) -20, 55

Working Lifetime(Hour) 50000

Lamp Body Material PVC

Certification CE

Emitting Color White

Place of Origin Guangdong, China

Brand Name JCL

Model Number JCL-5050-220V

Specifications

smd 5050 led strip
2.Extendable
3.outside Dia.7*13mm,inside Dia.6mm
4.High shock,water-resistance
5.CE&RoHs

led strip light 5050

Product Features:

Samsung smd 5050 led chip with high quality
Long lifespan, low maintenance cost, energy-saving and environmentally friendly;
NO UV, NO IR, especially applicable to radiation sensitive objects;
Wide-ranged input voltage, safe and reliable.

Tetechnical parameters

Sumsang smd 5050 with stablility performance

Emitting Color: R/G/B/W/WW/Y

Size:14cm*0.8cm

Light Source:SMD5050

LED QTY:60LEDs/M

Power:14.4W/M

Luminous Flux:10-12lum/led

Input Voltage:AC110-220V

Beam Angle>120°

IP rate:IP67(please seal the end wire of strip with hot melt glue)

PCB Color:White

Package: 1m/unit 50-100M/Roll

Condition Temperature:-40-50°C

Weight:7kg/roll(50m)

Model Number:led strip lighting 220v/110v

ItemNO.	Voltage	Powe (w/m)	Led lamps/m	Beam Angle	IP Rating	wile matrial	Lamp bead model
JCL-5050-48leds	AC220V / 110V	11.6	48	120 degrees	IP67	copper/ aluminium	5050
JCL- 5050-56leds	AC220V /110V	13.5	56	120 degrees	IP67	copper/ aluminium	5050
JCL-5050-60leds	AC220 V/110V	14.4	60	120 degrees	IP67	copper/ aluminum	5050
JCL-5050-72-leds	AC220 V/110V	17.2	72	120 degrees	IP67	copper	5050
JCL-5050-90leds	AC220 V/110V	21.6	90	120 degrees	IP67	copper	5050
JCL-5050-120leds	AC220 V/110V	28.8	120	120 degrees	IP67	copper	5050
JCL-5050-144leds	AC220V/ 110V	34.5	144	120 degrees	IP67	copper	5050
JCL-3014-72led	AC220V/ 110V	9.7	72	120 degrees	IP67	copper	3014
JCL-3014-120leds	AC220V/ 110V	17.5	120	120 degrees	IP67	copper	3014

Model	Voltage	color	Led lamp/Unit	Unit Length	Power (W)	meters/roll
JCL5050-30	DC12V/24V	RGB/R/G/B/Y/W	30pcs/unit	1m	7.2W	5
JCL-5050-60	DC12V/24V	RGB/R/G/B/Y/W	60pcs/unit	1m	14.4W	5
JCL-5050-30	DC12V/24V	dream color	30pcs/unit	1m	8.5W	5
JCL-3528-48	DC12V/24V	dream color	48pcs/unit	1m	11.2W	5
JCL-3528-30	DC12V/24V	R/G/B/Y/W/WW	30pcs/unit	1m	4.8W	5
JCL-3528-60	DC12V/24V	R/G/B/Y/W/WW	60pcs/unit	1m	4.8W	5
JCL-3528-120	DC12V/24V	R/G/B/Y/W/WW	120pcs/unit	1m	9.6W	5
JCL-3528-240	DC12V /24V	R/G/B/Y/W/WW	240pcs/unit	1m	19.2W	5

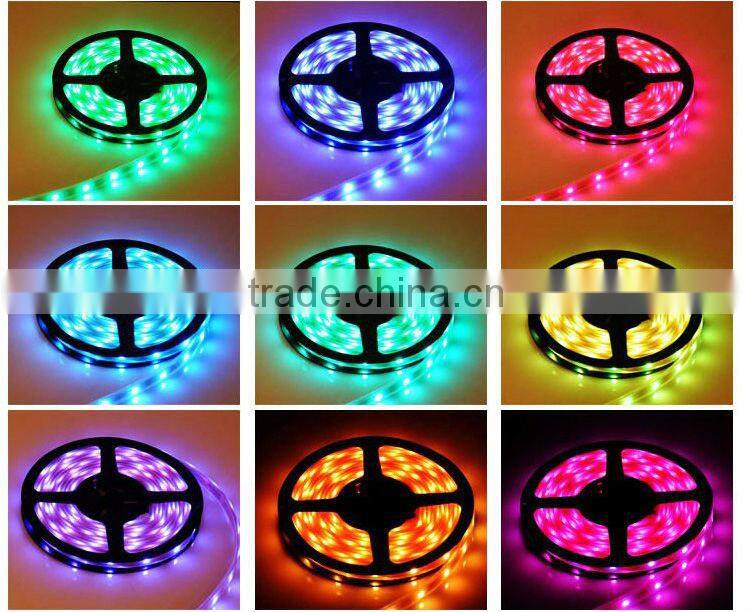

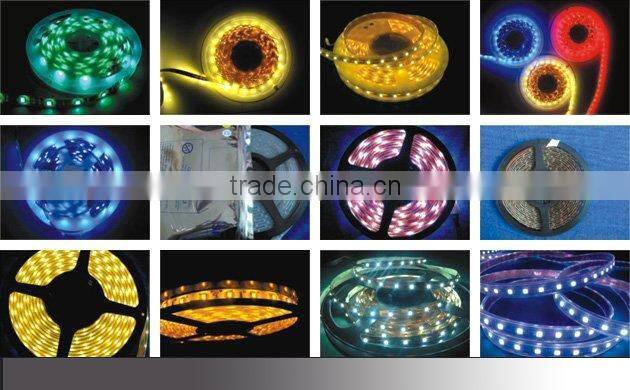

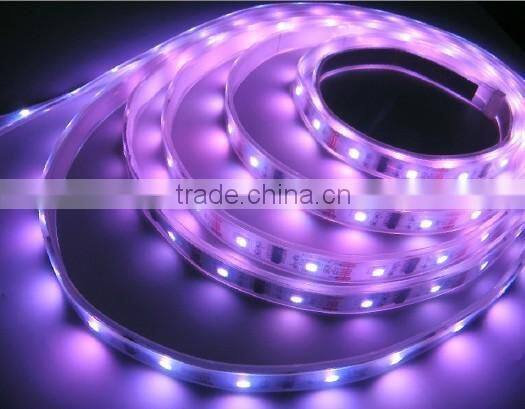

about low voltage led strip light

Certification:

Remarks:

1.MOQ:100 meters

2.the price excluding tax, excluding freight (if you need to value added tax invoice,please contact Customer Service.)period of validity:three months.

3.Payment: 30% advanced by T/T, the balance must be paid before shipments. Samples fee must be paid totally.

4.Delivery time:Depend on the quantity,normally 7-10days after the balanced payment. The samples will be deliveried in one week after the payment in the latest.

5.Product quality assurance 2 year above, this offer if you have an unknown place,welcome to inquire.
