Home > Products > Cabinet Hinge > pneumatic hinges and soft close hinge has a similar function
pneumatic hinges and soft close hinge has a similar function
- 300000 Piece / Pieces per Month
- SHENZHEN
- T/T
You May Like
Product Details
Place of Origin | Guangdong, China | Brand Name | kav brand hinge | |

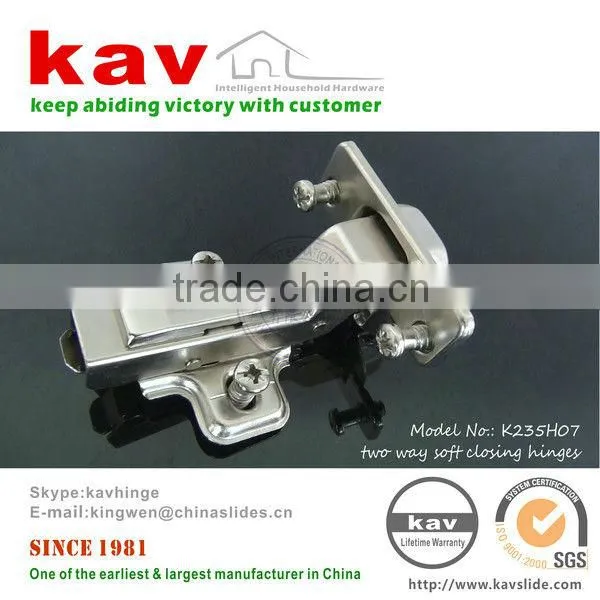

Model Number | K235H07,K235H08,K235H09 kav soft close kitchen cabinet hinge |
Product Description
Specifications
1.pneumatic hinges and soft close hinge has a similar functionft close hinge
3.full overlay hinge for cabinet

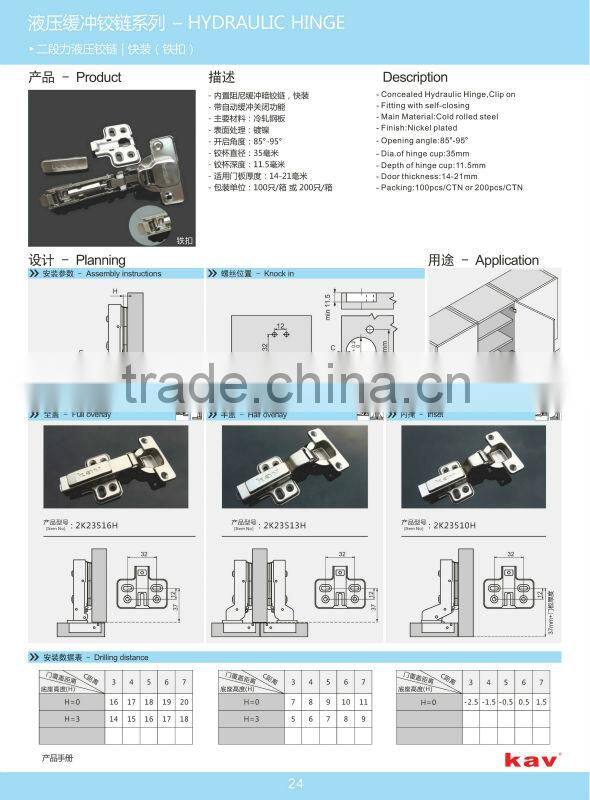

Detailed info of pneumatic hinges and soft close hinge has a similar function
Name of hinge | pneumatic hinges and soft close hinge has a similar function |
Brand | kav |
Model No. | K235H07, K235H08, K235H09 |
Finish | Nickel plated |
Material | Cold rolled steel |
Load test | 7.5kg |
Salt spray test | 48 hours |
Open-close test | 50,000 times |
Dia. of hinge cup | 35mm |
Depth of hinge cup | 11.5mm |
Opening angle | 95—105 degree |
Pitch hole | 48mm, 45mm, 52mm |
Door of thickness | 14—21mm |
Overlay | Half overlay, full overlay, insert(embed, inset) |
Application | Furniture, cabinet, kitchen, bathroom, etc. |
Production ability | This hinge has been sold more than XXX pcs for now already. |
Packing | 100 pcs/ctn, 200 pcs/ctn or as customer’s demand |
Product advantages:
- Strengthened adjustable screw can widen the adjustable ranges and lengthen using life.
- Widening manganese steel spring can disperse force when the hinge closed. Strengthened spring is 2.5mm thick, while the thickness of normal ones is 1.5mm.
3. Adopting advanced hydraulic system, longer life time and smaller volume.
Why can you trust us?
- Doing business is as important as how to be an honest man. Therefore, honesty always comes first. Many clients have hesitation to choose suppliers on internet, because they are suspicious of the on-line suppliers’ honesty. Kingwen Liang is the leading figure of hinge-slide blog marketing, who owns “learning hinge from expert” and “slide expert saying slide” special columns, which catch the eye of many hinge-slide industry veterans, publishes several hundreds of industry related articles, which offer industry insiders and customer lots of valuable reference resources to learn more about marketing and installation of hinge and slide.

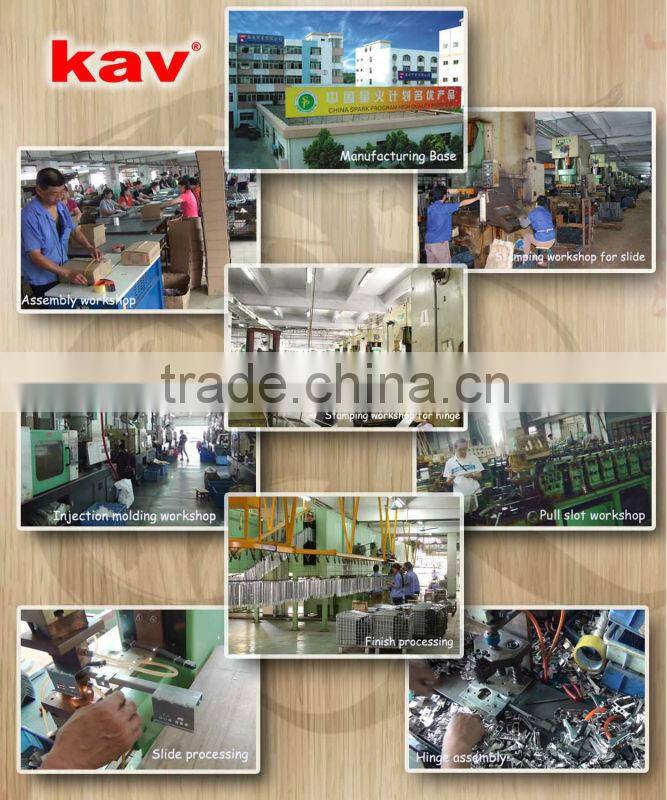

- It’s another challenge for on-line supplier that customers will wonder if the supplier is an agent or manufacturer, can I get cost effective hinge and slide. Kav international Wantong factory is one of the earliest hinge-slide factories in China. In 1981, we started producing door&window hardware, window slide and electro plating. In 1991, we tried to focus on the research and development of powder coating slide. In 1955, we began to pay attention to the research and development of side mount ball bearing slide, becoming the first factory which produced ball bearing slide. In 2000,we concentrated on the research and development of hinge. In 2003, we were centered on the research and development of concealed undermounted slide. In 2006, we centered around the research and development of soft closing slide and damper. Our product has passed the international quality certification, SGS. What’s more, our products are exported to more than 100 countries and districts. If you want to learn more about us, please check our company’s web:
- Besides, there are more reasons you can trust us: several decades’ rich experience, renowned international brand image, launching market-oriented and cost effective product, strong e-marketing, lifetime warranty, perfect after-sale service, etc.
More information:
- If you want to learn more about our hinge and slide or watch video for installation, please check our company’s website:
- If you want to download our e-catalog, please check this link:
Recommend for hinges and slides:
