TONVA Machine Manufacturer for Kinds of Bottle Plastic Extruder Machine

Standard Series Brief Introduction:

1) TVHD series Double station machine is adopted pure hydraulic system.With compact                structure,running stable and easy to control;

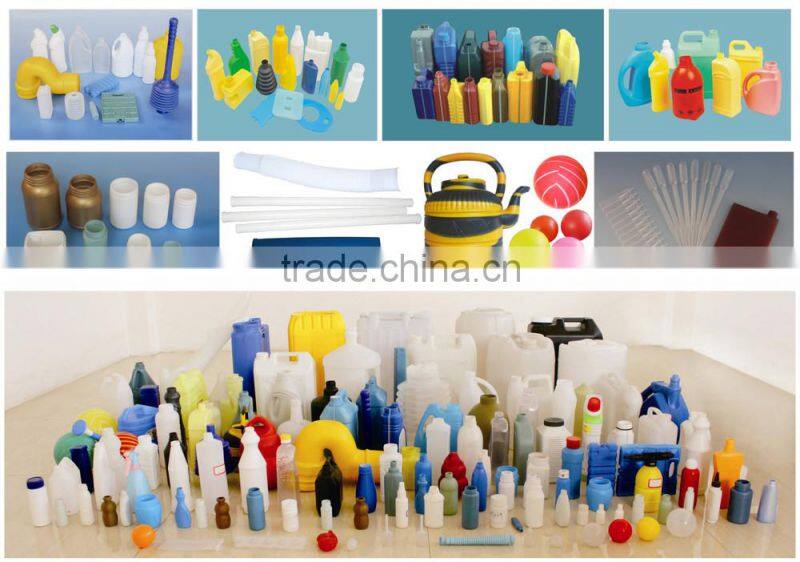

2) Products size range:suitable for 5ml to 5L all kinds of hollow products;

3) Application range:can be used as packing for food,medical,cosmetic,autoparts,tools and          toys etc;

4) Suitable for raw materials of PE,PP,PA,PC,PS,ABS,TPU,EVA,PETG stc;

5) Pure hydraulic system:Optimized hydraulic oil loop design gains a stable,fast,power saving      property;

6) All parts adopts international famous brand,easy for installation and matainence;

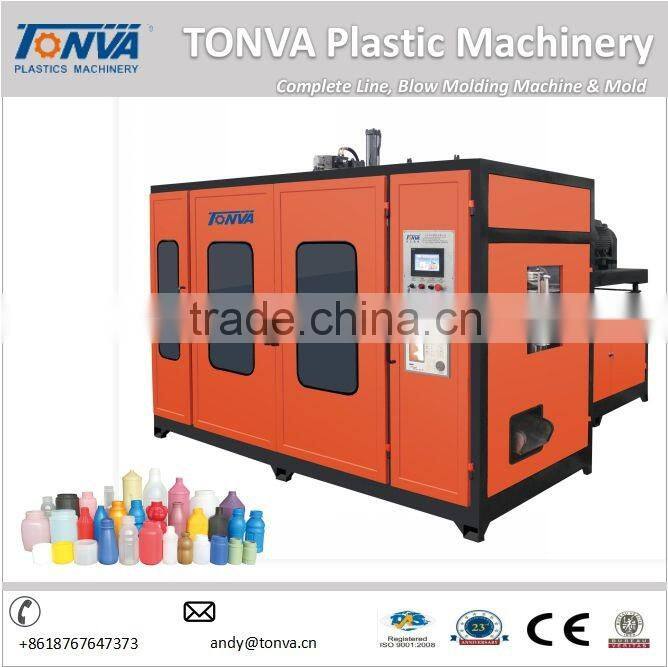

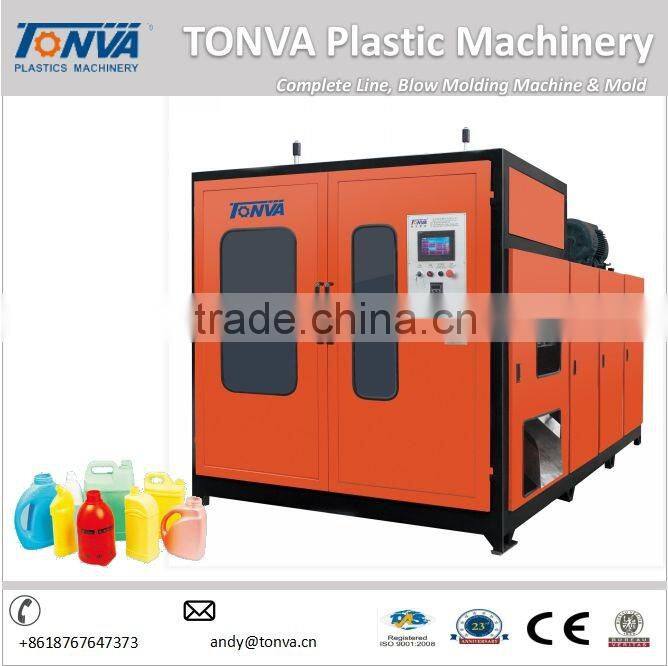

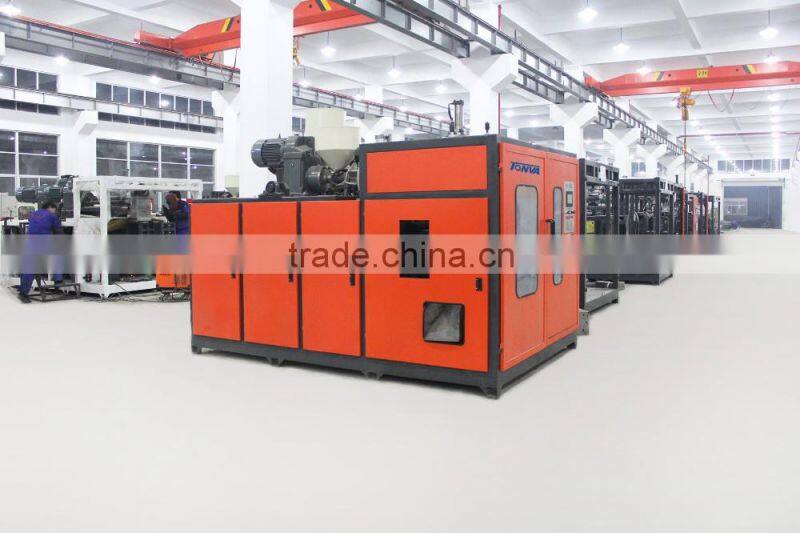

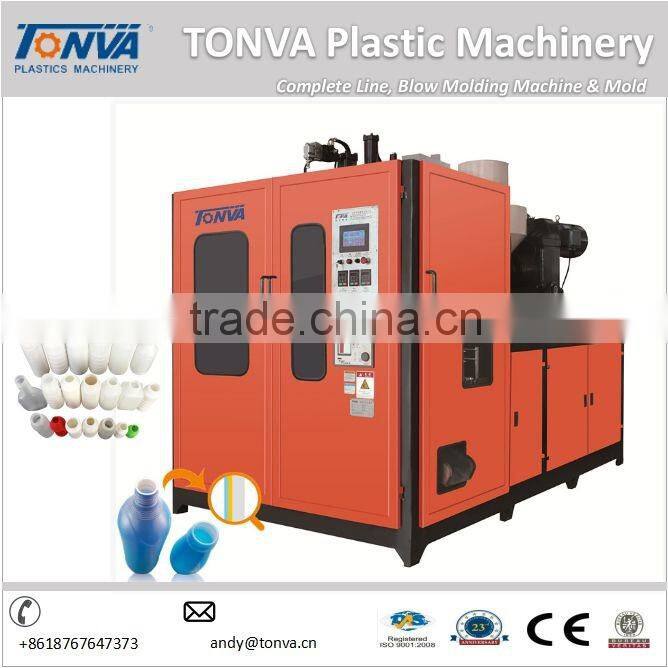

1 Liter Hydraulic System Extrusion Blow Moulding Machine

TVHD-1L Basic Specification:

* Double Station
* 55mm screw / 7.5kw motor;
* PE etc material;
* Automatic Trimming: Neck/Bottom/Handle/Slides;
* Die-heads for choosing:
   Single die-head ( 500ML to 1L) ---at 500pcs per hour;

   Double die-heads ( 300ML to 500ML)---at 1100pcs per hour;

   Triple die-heads ( 50ML to 300ML)---at 800pcs per hour;

   Four die-heads ( up to 50ML)---at 3000pcs per hour;

* Center distance:

    Four die-heads---60mm;Triple die-heads---80mm;Two die-heads---120mm;

TVHD-1L Working Condition:
* Power supply: 380VAC/50Hz (depending on client's country)
* Water Cooling: 20℃(5HP Water chiller)
* Air source: 0.6Mpa, 0.4m³/min (1.0 m³/min air compressor)

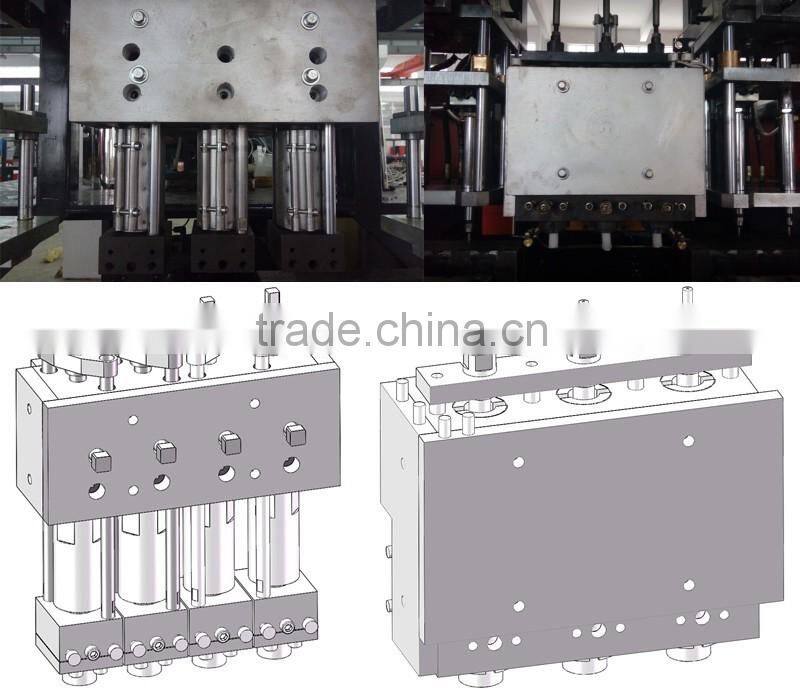

Die-head

The die head is made by stainless steel S136H or high quality alloyed steel 38CrMoAIA with high hardness, strong corrosion resistance and long operating life after nitrogen treatment.

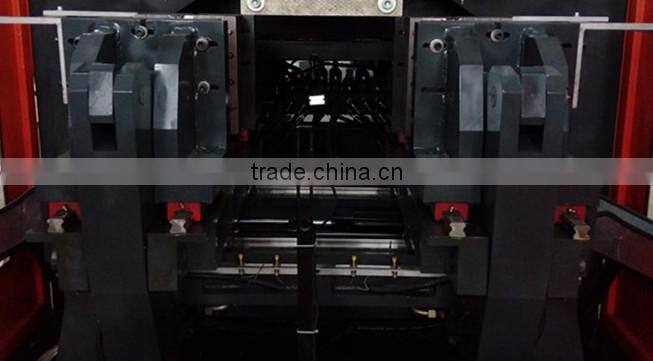

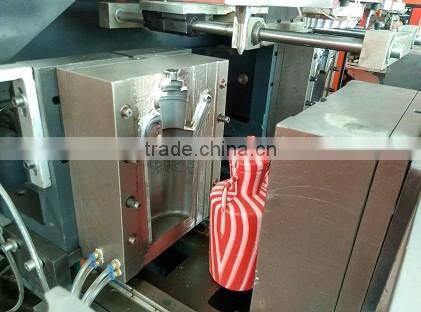

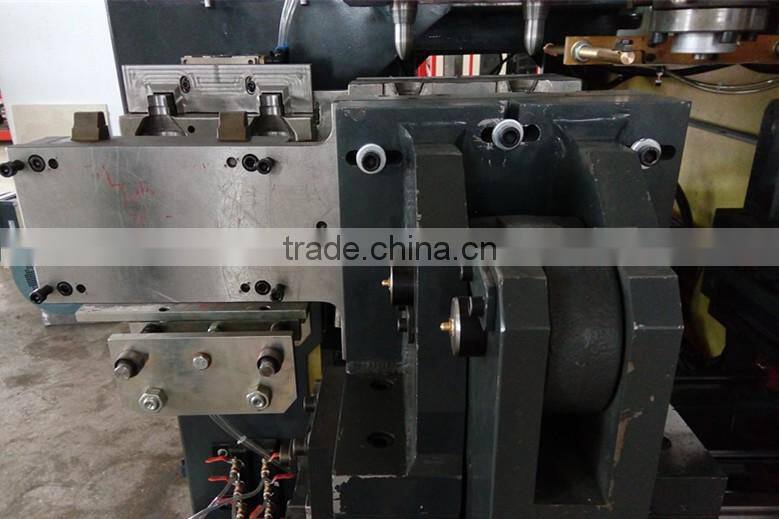

Clapming system

The clamping unit adopts clamp-style with two platens, forced by hydraulic cylinders with proportional valves at the bottom. This special structure ensures the rigid feature of the platen and also keeps equal force distribution of platens, without deformation.

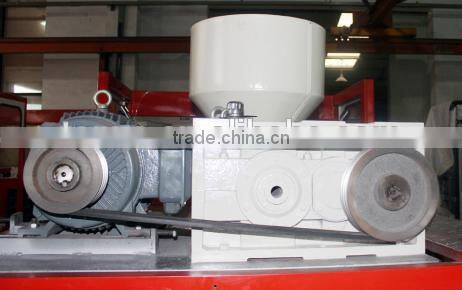

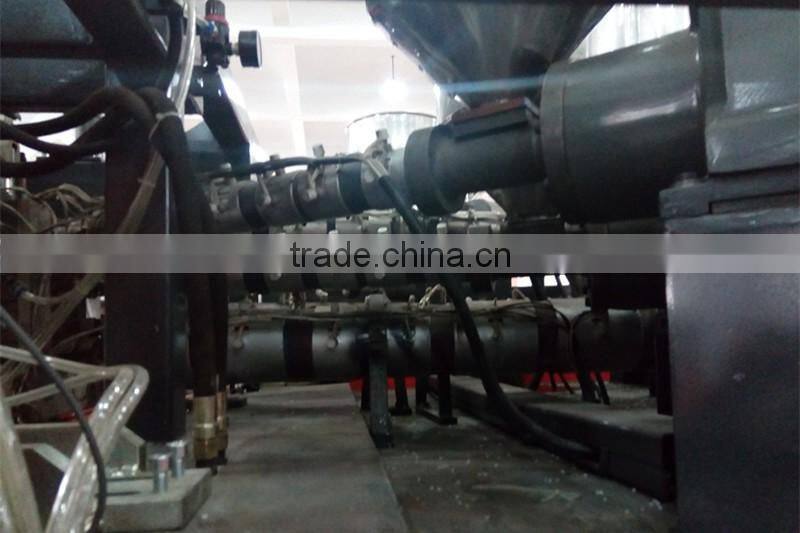

Drive System

Adopting the inverter controlling and alloy hard gear surface decelerator driving.

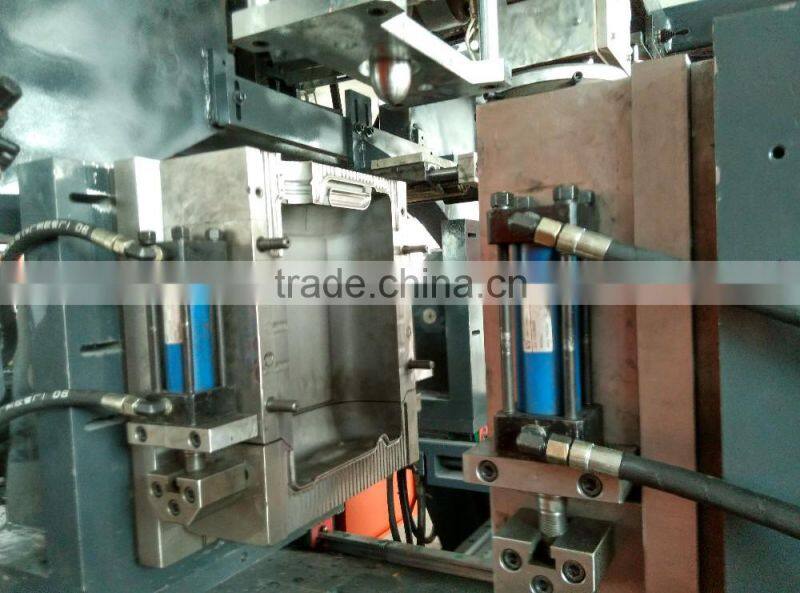

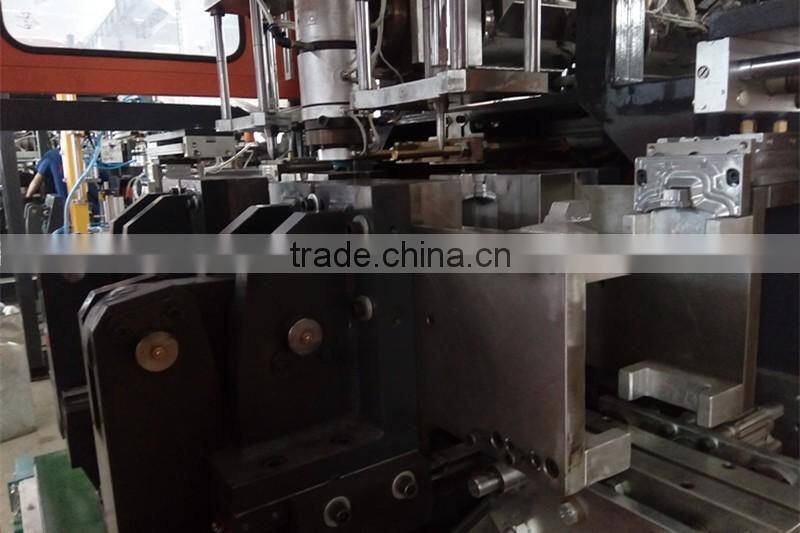

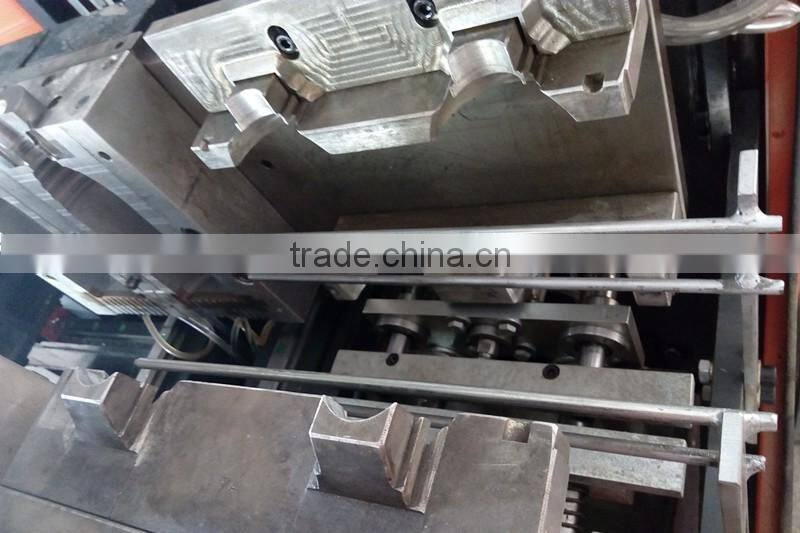

Automatic trimming

The machine equipped with automatic trimming system, resulting saving the labor cost at least 75% for one machine and guarantee the good quality continuously.

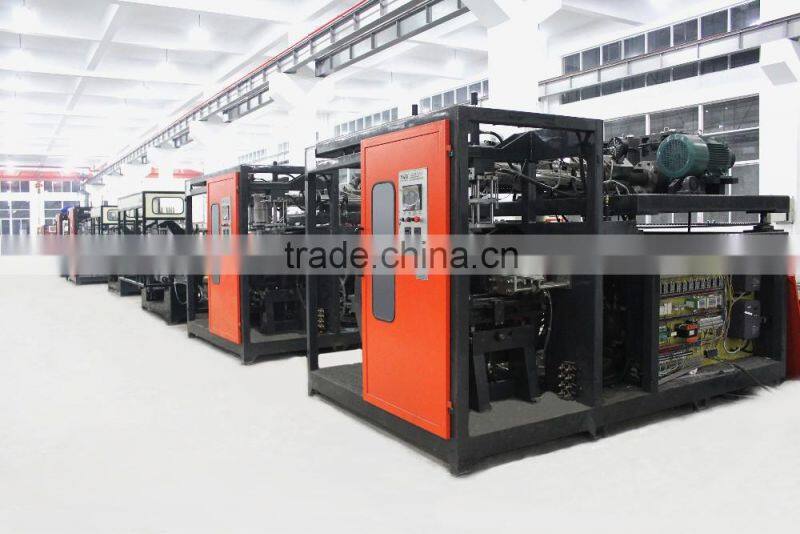

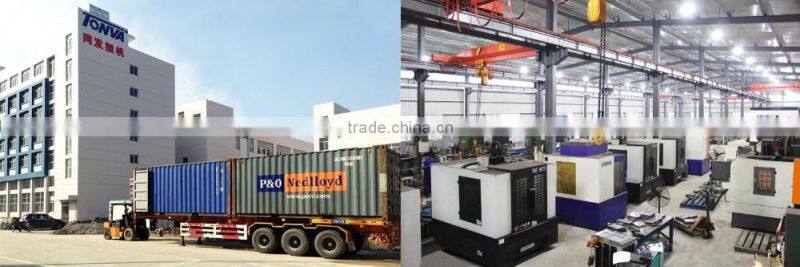

TONVA Plastic Machine Co.,Ltd was established in 1993,and specialized in producing Extrusion Blow Molding Machines,PET Blow Molding Mahcines and moulds.Company has a group of experienced engineers who contribute more than twenty years in Blow Molding Machine industry and a team who good at after-sale service.Based on fabulous reputation and favorable service,our products reach great sales in dometic market and more than 80 countries.We produce more than 400 sets machines each year,while being highly valued and trusted by our customers.
