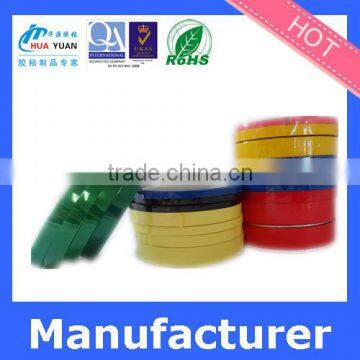

mylar insulation tape for transformer

FOB Price

USD $0.8 - $2 / Roll

500 Rolls(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Material	Other, Polyester, Polyester	Use	Masking
Adhesive Side	Single Sided	Adhesive	Acrylic
Adhesive Type	Hot Melt, Pressure Sensitive, Water Activated, Water Activated	Feature	Heat-Resistant
Design Printing	No Printing	Place of Origin	Guangdong, China
Brand Name	Huayuan	Model Number	HY100

Insulation Mylar Tape for transformer Mylar Tape

Description	With polyster film as basement,coated with flame retardant acrylic adhesive.
Application	It's mostly applied for the transformer,motor, capacitor and other electronic parts insulation wrapping.
Feature	great performance on flame resistance and chemical solvent resistance
Technique Data

Item	Unit	Data			Test Method
1.Basic info.
a.base		PET
b.Thickness	mm	0.058	0.055	0.085
c.Color		Light Yellow/Dark Yellow	Transparent	Light Yellow/Dark Yellow	Red,Blue,Yellow,White and Black
2.Physical and Chemical Characteristics
a.180°Peel Adhesion	KN/m	0.4	0.3	0.46	GB/T 2792-1998
b.Tensile Strength	N/10mm	46	46	84	GB/T 7753-1987
c.Elongation	%	109	109	127	GB/T 7753-1987
d.Breakdown Vottage	KV	5	5	7.5	GB/T 7752-1987
e.Temperature Resistance	°C	130
f.Grade of Temperature Resistance	(a)	B
3.Remark	reach requirements of UL510 flame-retardant performance
(a)Clasification: “A”105°C,“E”120°C,“B”130°C, “F”155°C,“H”180°C, “N”200°C,“R”220°C,“S”240°C.
Package	66 meters per roll

Description:

Mylar tape using polyester film as backing, coated with acrylic adhesive.

Features:

1. high conformity

2. chemical resistance

3. solvent resistance

4. abrasion resistance

5. different colors for your option

Application:

1. coil wrapping

2. covering of motor stator coil

3. wrapping of transformer coil
