Conductive nylon 66 raw material, 30% Carber Fiber reinforced PA66 Nylon price per kg
Properties:
(1) High permittivity, filled with Carbon fiber;
(2) Technology process: Injection molding;
(3) Surface resistivity: <103Ω ;
(4) Mechanical properties: high impact resistance, good toughness, and not easily deformed;
(5) Security and reliability: low halogen flame retardant, can provide SGS test report (ROSH, Reach).
Applications:
High-frequency phase shifter formation PBX communications equipment accessories .
Customized:
Fire retardant: UL94 / UL8750 V0-5VA with the thickness is 0.5-3.2mm, our default thickness is 1.0mm.
Ultraviolet light resistant: F1 and F2,
Glow wire ignitability: 750 ℃ - 960 ℃
High temperature resistant: can be 180 degree.
Color: Pure white and Milk white in Default.
Others: According to customer's request.
International certification: IS0-9001, UL, ROHS, REACH.
|
Guangzhou Gangyangda Plastic Co.,Ltd. Website: Alibaba Website: http://gangyangda.cn.china.cn Address: No. 6, No. 7 Line, Caohe Industry Zone, Panyu Dist., Guangzhou TEL: +086-020-34612058 |
||||
| PA66-CF30 | |||||
| Property item | Test condition | Test method | Pa66-CF30 | Unit | |
| Physical properties | Specific gravity | ASTM D792 | 1.27 | ||
| Water absorption rate | 24 hours | ASTM D570 | 1.75 | % | |
| Mould contraction rate | ASTM D955 | 2.85 | % | ||
| Strength enhanzed | Carbon fiber | - | 30 | % | |
| Mechanical properites | Tensile strength (yield point) | ASTM D638 | 1850 | Mpa | |
| Tensile strength (rupture point) | ASTM D638 | 1720 | Mpa | ||
| Tensile rate (yield point) | ASTM D638 | 1.6 | % | ||
| Tensile rate (rupture point) | ASTM D638 | 1.8 | % | ||
| Tensile modulus | ASTM D638 | 187000 | Mpa | ||
| Flexural yield strength | ASTM D790 | 2600 | Mpa | ||
| Flexural modulus | ASTM D790 | 147600 | Mpa | ||
| Impact strength (notched) | 23℃ | ASTM D256 | 9 | KJ/m2 | |
| Impact strength (no notched) | 23℃ | ASTM D4812 | 65 | KJ/m2 | |
| Instrumented Impact Energy@peak | 23℃ | ASTM D 3763 | 69 | J/m | |
| Hardness | Rockwell | ASTM D785 | - | R | |
| Thermal properties | Heat deflection temperature HDT/A | 0.45Mpa | ASTM D648 | - | ℃ |
| Heat deflection temperature HDT/A | 1.8Mpa 3.2mm | ASTM D648 | - | ℃ | |
| Vicat softening point | ASTM D1525 | - | ℃ | ||
| Linear Expansibility | E831 | - | 1/℃ | ||
| UL RTI (impact) | UL746B | - | ℃ | ||
| Inflaming reatarding | UL94 | HB | |||
| Electrical properties | Dissipation factor | 60Hz | ASTM D150 | - | |
| Dissipation factor | 1MHz | ASTM D150 | - | ||
| Permittivity | 60Hz | ASTM D150 | - | ||
| Permittivity | 1MHz | ASTM D150 | - | ||
| (Ohm-cm) Volume residtivity | ASTM D257 | 1.E+02-1.E+06 | Ω-cm | ||

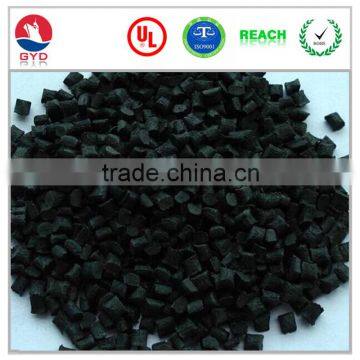

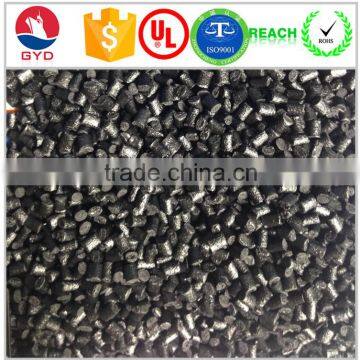

Here are some pictures of our products:
