Battery Cell Tape

FOB Price

US$ 2 - 5 / Roll

2000 Rolls(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Material	Polyimide	Use	Bag Sealing
Adhesive Side	Double Sided	Adhesive	Acrylic
Adhesive Type	Hot Melt, Pressure Sensitive, Water Activated	Feature	Antistatic
Design Printing	No Printing	Place of Origin	Guangdong, China
Brand Name	huayun	Model Number	hy200

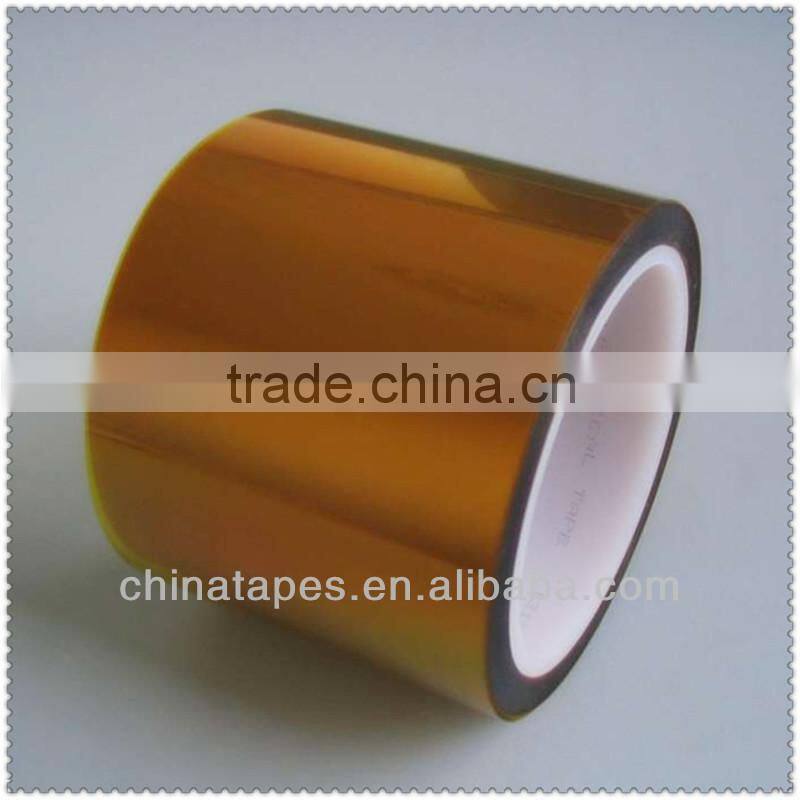

battery cell Tape

Polyimide (PI) adhesive tape,Insulation material for tansformer.

Application: Polyimide (PI) adhesive tape, Insulation material for tansformer. This item is used for SMD packing and transformer manufacturing.

Specification: 1. Polyimide base film coating with high temperature Silicone adhesive;

2. High temperature and corrosion resistance;

3. Strong adhesion;

4. Soft and proper and no residue after peeling off.

5. For electronic manufacturing industry.

Backing	Polyimide	Polyimide	Polyimide	Polyimide	Polyimide	Polyimide	Polyimide	Polyimide	Polyimide
Adhesive type	Silicone	Silicone	Silicone	Silicone	Silicone	Silicone	Silicone	Silicone	Silicone
Backing Thickness(mm)	0.02	0.025	0.025	0.025	0.05	0.05	0.075	0.1	0.125
Adhesive thickness(mm)	0.025	0.025	0.035	0.045	0.03	0.05	0.045	0.05	0.055
Total Thickness(mm)	0.045	0.05	0.06	0.07	0.08	0.1	0.12	0.15	0.18
Color	amber	amber	amber	amber	amber	amber	amber	amber	amber
Adhesive strength(kg/25mm)	0.5~0.6	0.6 ~0.7	0.6~0.7	0.6~0.7	0.6~0.7	0.6~0.7	0.6~0.7	0.6~0.7	0.6~0.7
Elongation (%)	14	14	14	14	26	26	40	68	85
Corrosion resistance	1	1	1	1	1	1	1	1	1
Heat resistance(°C)	258°C	258°C	258°C	258°C	258°C	258°C	258°C	258°C	258°C
Length(m)	50	50	33	50	33	33	33	33	33
Width(mm)	2~500 according to the customers’ requirement

We are one of the most professional Chinese tapes' manufacturers and leaders.

A. Part of Office&Customer visiting

B. Working shop& Equipments

C. Packing&Delivery

Certifications:

Our products:

If you are interested in any products, please don't hesitate to contact us!
