Specifications
Glow wire ignitability 750 Degree Celsius Flame retardant PC/ABS alloy plastic resin / GWIT 750 PC and ABS Mixed plastics pelletGlow wire ignitability 750 Degree Celsius Flame retardant PC/ABS alloy plastic resin / GWIT 750 PC and ABS Mixed plastics pellet
According to the requirements of customers ( sparks, fire height, flame combustion time, drop, thickness of product, etc.)
International certification: IS0-9001, UL, ROHS REACH
| |
Guangzhou Gangyangda Plastic Co.,Ltd. Address: No. 6, No. 7 Line, Caohe Industry Zone, Panyu Dist., Guangzhou TEL: +86-020-34612058 |
|||||
| PC/ABS-B110F-GWF750 property parameter table (GWIT 750°C) | ||||||
| Property item | Test condition | Test method | PC/ABS-B110F-GWF750 | Unit | ||
| Physical properties | Specific gravity | ASTM D792 | 1.15 | |||
| Water absorption rate | ASTM D570 | 0.1 | / | |||
| Mould contraction rate | 3.2mm | ASTM D955 | 4-6 | E-3 | ||
| Mechanical properties | Tensile strength (yield point) | ASTM D638 | 57 | Mpa | ||
| Tensile rate (rupture point) | ASTM D638 | 20 | / | |||
| Tensile modulus | ASTM D638 | 2270 | Mpa | |||
| Flexural strength | ASTM D790 | 88 | Mpa | |||
| Flexural modulus | ASTM D790 | 2340 | Mpa | |||
| Impact strength (notched) | 23°C | ASTM D256 | 587 | J/m | ||
| Hardness | Rockwell | ASTM D785 | 120 | R | ||
| Thermal properties | Heat deflection temperature | 0.45Mpa | ASTM D648 | 129 | °C | |
| Heat deflection temperature | 1.8Mpa | ASTM D648 | 112 | °C | ||
| Coefficient linear thermal expansion | E831 | 4.00E-05 | 1/°C | |||
| UL long-term using temperature with impact | UL746B | 85 | °C | |||
| Glow wire ignitability | ASTM D2863 | 750 | °C | |||
| Flame retardant | UL94 | V0 | ||||
| Electrical properties | Permittivity | 1MHz | ASTM D150 | 2.95 | ||
| volume resistivity | 1MHz | ASTM D257 | 1.00E+17 | Ω-cm | ||

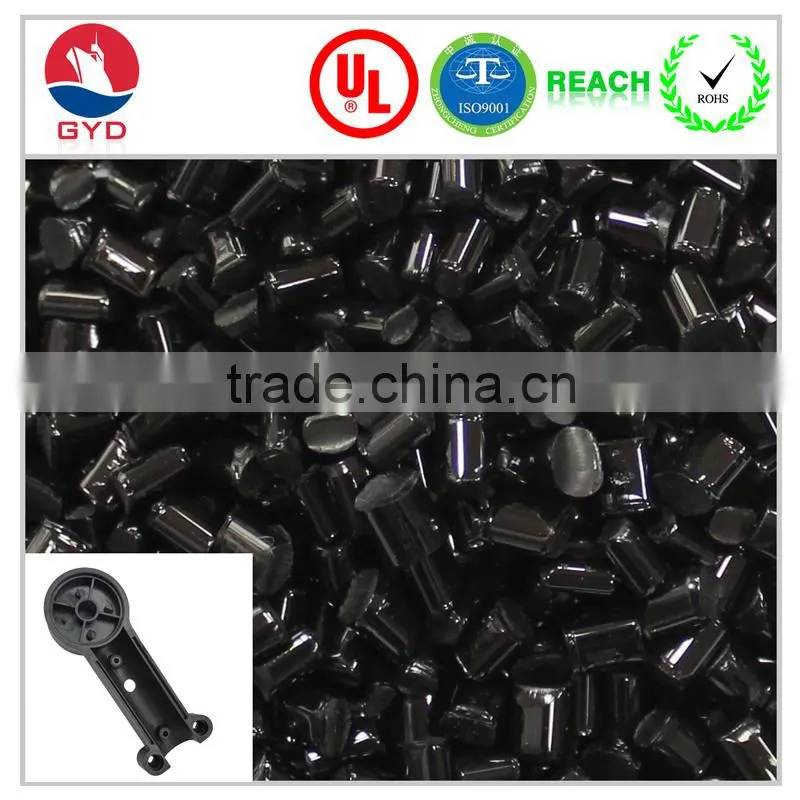

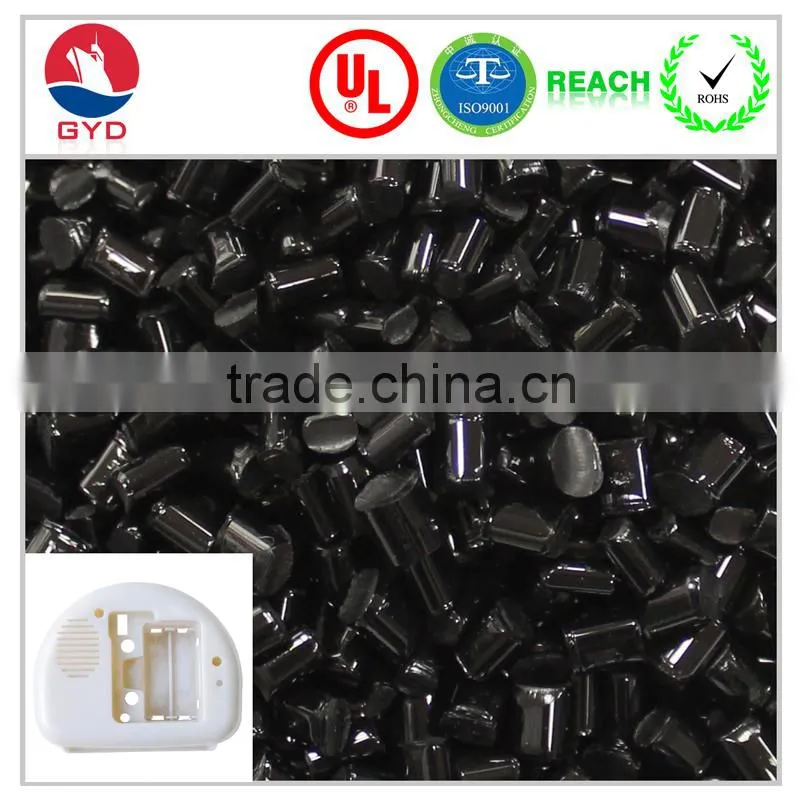

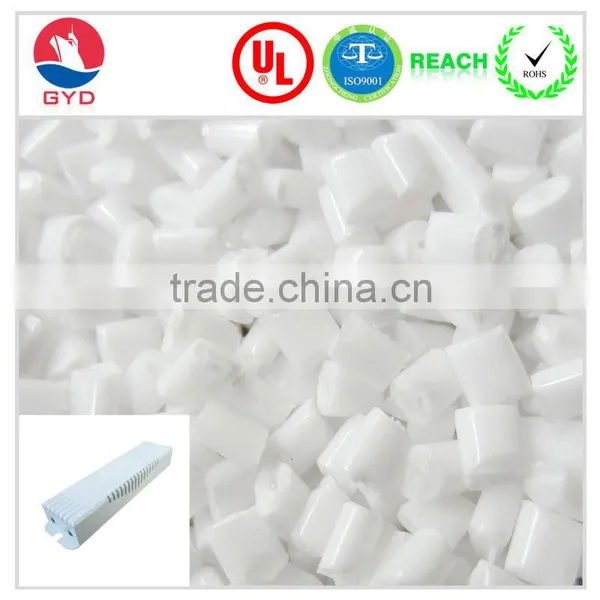

Here are some pictures of our products:
Company Slogan: Brand; Innovation; Green; Service
Company Commitment: Top quality; Constant innovation; Demand-oriented; Best services.
Guangzhou Gangyangda Plastics Co., Ltd. was set up by a group of industry-reputed Chinese Professors and Experts jointly with American returned PhD holders in June, 1996
Show you some photos of our company:
Corners of our factory:
We adhere that If the praise are the same, the quality of our products are better than others; if the qualities are the same, our praise is lower than others!
For more information about our products and our company, please visit our website .
We have great interest in developing business with you.
Or any questions, please contact us any time.
We will try our best to satisfy your requirements. To more...
