Decorative/interior Wall Paneling/panels

Specifications

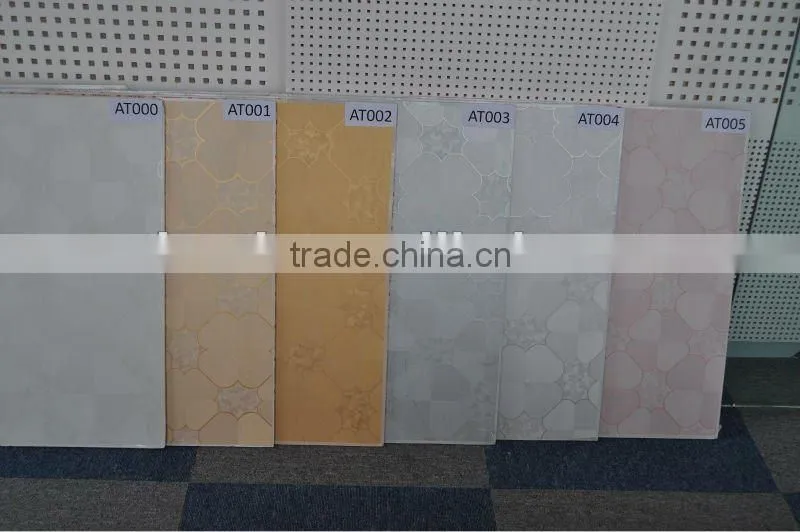

1.PVC Laminated Gypsum Ceiling Tiles

1) Material: paper-faced gypsum board PVC facing + aluminum foil backing

2) Thickness:7mm, 7.5mm, 8.0mm, 8.5mm,9.0mm, 9.5mm,10mm,12.0mm,

3) Sizes:

     595mmX595mm

   600mmX600mm(2'X2')

   603mmX603mm

   595mmX1195mm

   600mmX1200mm(2'X4')

   603mmX1210mm

4) Size tolerance: Length <+/-1.0mm, width < +/-1.0mm, thickness <+/-0.5mm

5) Weight: 7.5mm=5.7kg/sqm, 8.0mm=5.9kg/sqm, 8.5mm=6.2kg/sqm, 9mm=6.8kg/sqm, 9.5mm=7.1kg/sqm, 12mm=9.2kg/sqm, 12.5mm=9.5kg/sqm

6) Strength: >100N

7) Characters: Non-flammable B1, in accordance with Chinese standard GB8624-1997

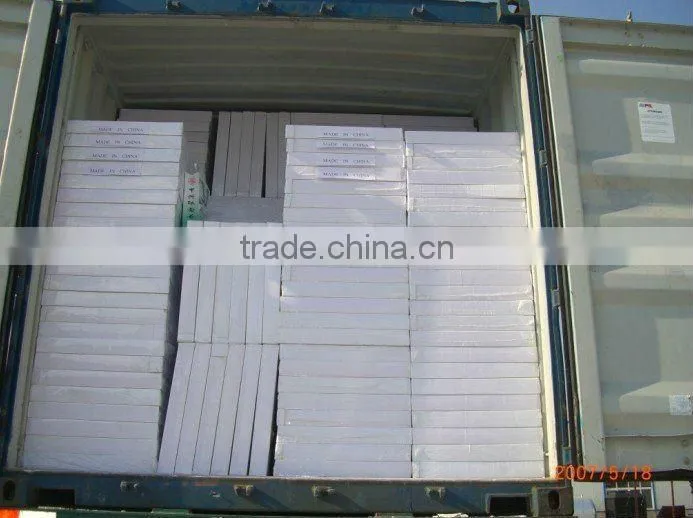

8) Installation: Match with ceiling T-bar Packing: Export carton(6pcs,8pcs or 10 pcs per carton with film)

 Certification:

China national quality standard; ISO9001:2000.

2.Acoustic PVC Ceiling Board

Perforated gypsum board acoustic ceiling board

It has sound absorbing functions besides the advantages of gypsum board.

Advantages of perforated gypsum board

*The perforated ceiling production line is a European technique and uses European equipment.

*It uses digital industrial technology which precisely controls the   geometric patterns.

*It meets United States ASTM C1396 standards high-density gypsum board.

*Its painting uses a computer controlled system and low reflective coating to ensure no difference in color.

*It passes the national JCT803-2007 sound absorption of perforated gypsum board.

*Using a large laminating machine and sound-absorbing cloth of various colors.

*Standard packaging, excellent packaging design.

Common specification:

For other styles, we can customised according to quantity.

Square perforated style sheet

Type:G2400

Size of Square holes: 5x5mm, 10x10mm,12x12mm

Size(H*W*L): 12.5x1200x2400mm 12.5x600x600mm 12.5x600x1200mm

Back cover material: white, black, blue sound absorbing cloth

Punch area: H1,H2,H2L,H4,H4L,H6,H8 other punch can be ordered.

Weight: 9.4kg/punch

Punching rate: 13.4%

Acoustic performance: aw0.65 NRC 0.70 RH 70

3.Round-shape perforated style sheet

Type:Q2400

Diameter: 6mm,8mm,12mm,15mm

Size(H*W*L): 12.5x1200x2400mm 12.5x600x600mm 12.5x600x1200mm

Surface treatment: plain

Back cover material: white, black, blue sound absorbing cloth

Punch design: H1,H2,H3,H4,H6,H8 other designs can be ordered.

Weight: 9.4kg/square meter

Punching rate: 19.6%

Acoustic performance: aw0.65   NRC 0.70 RH 70

Atlantis Decoration&Building Material CO.LTD is your best choice.

YOUR SUCCESS IS MY BUSINESS!!!
