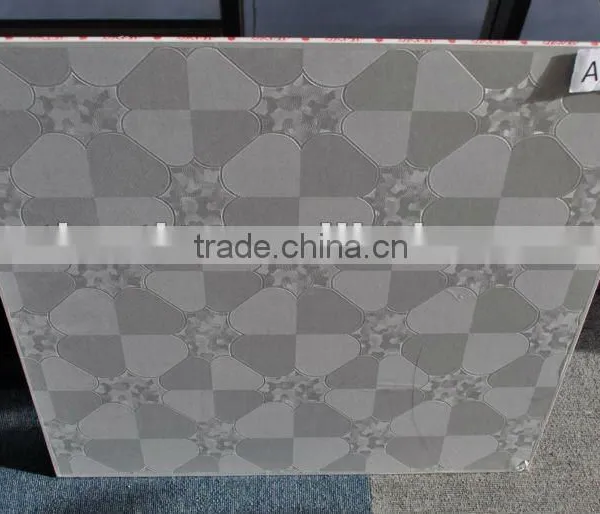

PVC Laminated Gypsum Ceiling Tiles

Specifications

PVC false ceiling tiles are widely used in toilet, kitchen and other damp places with much humidity variation

ATLANTIS superior PVC laminated gypsum ceiling board adopts ATLANTIS paper-faced gypsum board as the base board, and imported good quality latex painting, polythene compound pellicle, aluminum foil as the surface veneer material, through a high technological manufacturing process. It has characteristics of safe, environmental, healthy, non-dust, noxious-free, moisture-proof, sunken proof, and easy clean and easy installation.

It is a economical, elegant, fashionable, ceiling decorative material. This superior material is mainly used in the indoor decoration of super class buildings such as hotels, restaurants, shopping malls, theaters, cinemas, stations, auditoriums, offices, sitting rooms, business buildings, electronic workshops, precision apparatus rooms and industrial or residential buildings.



Specifications:

1) Material: paper-faced gypsum board



2) Thickness:7mm,7.5mm,8.0mm,8.5mm, 9mm,9.5mm,12mm,12.5mm



3) Sizes: 595 x 595mm, 600mmX600mm, 595 x 1195mm, 603 x 603mm, 605mmX605mm, 603mm x1212mm, 610mmX1220mm (2’X4’)



4) Size tolerance: length <±2mm, width < ±2mm, thickness <±0.5mm



5)Weight:7mm=5kg/sqm,7.5mm=5.7kg/sqm,8.0mm=5.9kg/sqm,8.5mm=6.2kg/sqm,9mm=6.8kg/sqm,9.5mm=7.1kg/sqm,12mm=9.2kg/sqm,12.5mm=9.5kg/sqm



6) Strength: >160N



7) Characters: non-flammable B1, in accordance with Chinese standard GB8624-1997



8) Installation: match with ceiling T-bar



9)Packing: Export carton(8pcs or 10 pcs per carton with film)
