Sound Absorption Plasterboard 35/20/12

Specifications

Perforated acoustic gypsum board/ceiling

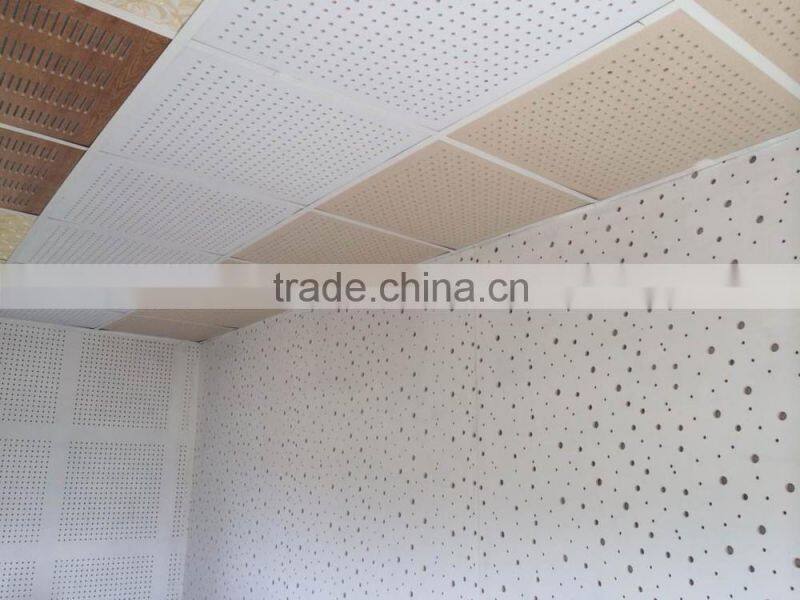

1.Perforated type:Round(circular) holerated type:Round(circular) hole

a.Standard size:2400*1200*12.5mm,3000*1200*12.5mm,600*600*9.5/12.5mm

b.Round hole dia.: Φ6mm, Φ8mm, Φ12mm, Φ15mm

c.Back non-woven fabric colour:white,black,blue

d.Weight:9.4kg/m2

e.Perforation rate:8.7-19.6%

f. Acoustic performance

aw:0.65

 NRC:0.70

 RH70

g.Application:drywall, ceiling

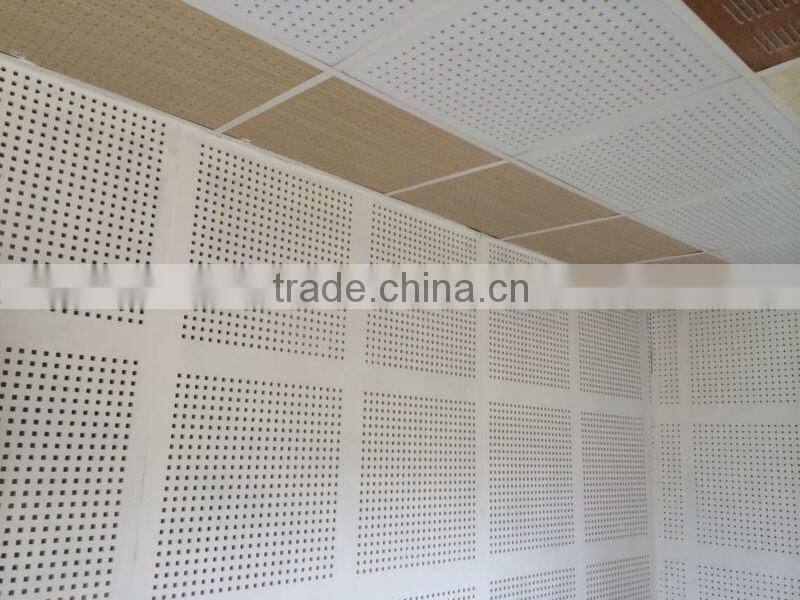

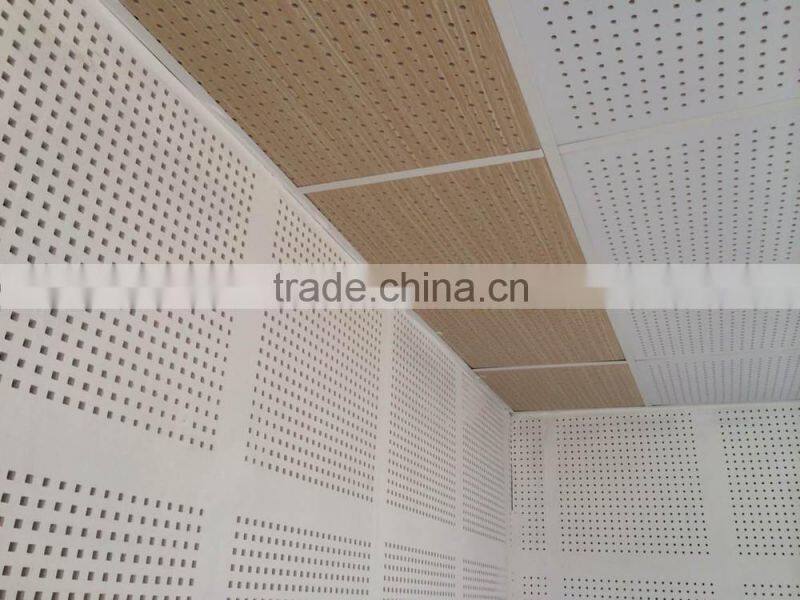

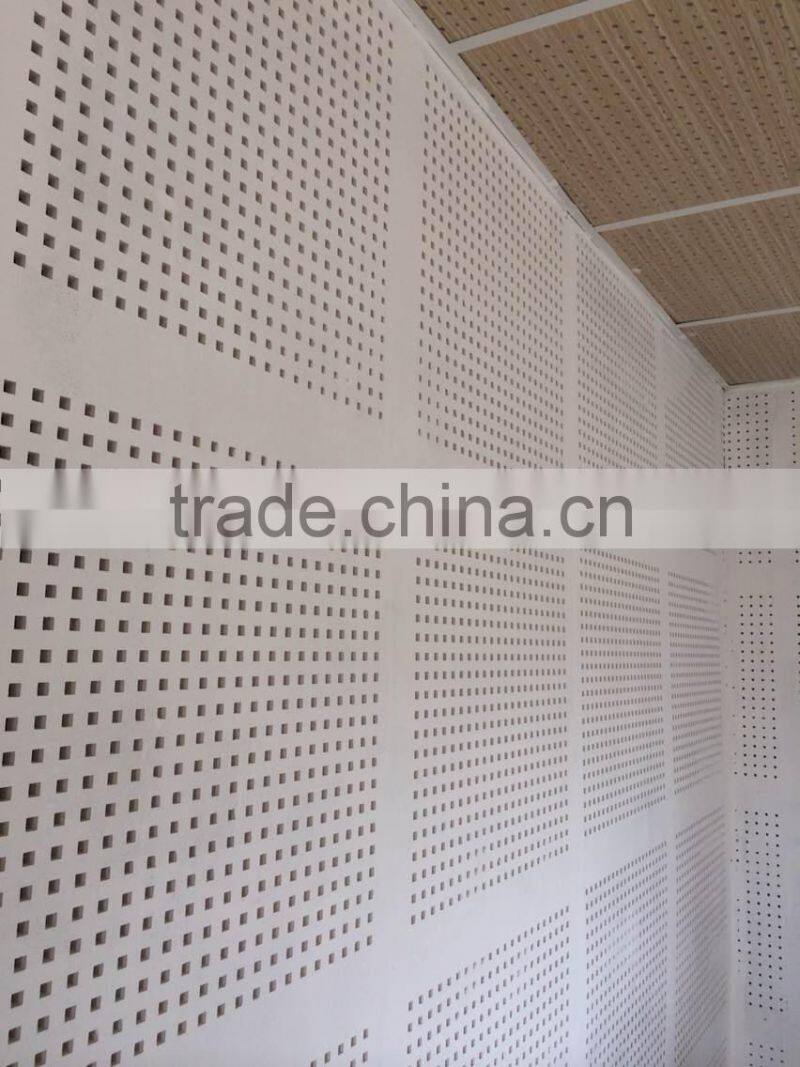

 2.Perforated type:Square hole

a.Standard size:2400*1200*12.5mm,3000*1200*12.5mm, 600*600*9.5/12.5mm

b.Square hole size:5*5mm,10*10mm,12*12mm

c.Back non-woven fabric colour:white,black,blue

d.Weight:9.4kg/m2

e.Perforation rate:9%-17.2%

f.Acoustic performance

aw:0.65

 NRC:0.70

 RH70

g.Application:drywall, ceiling

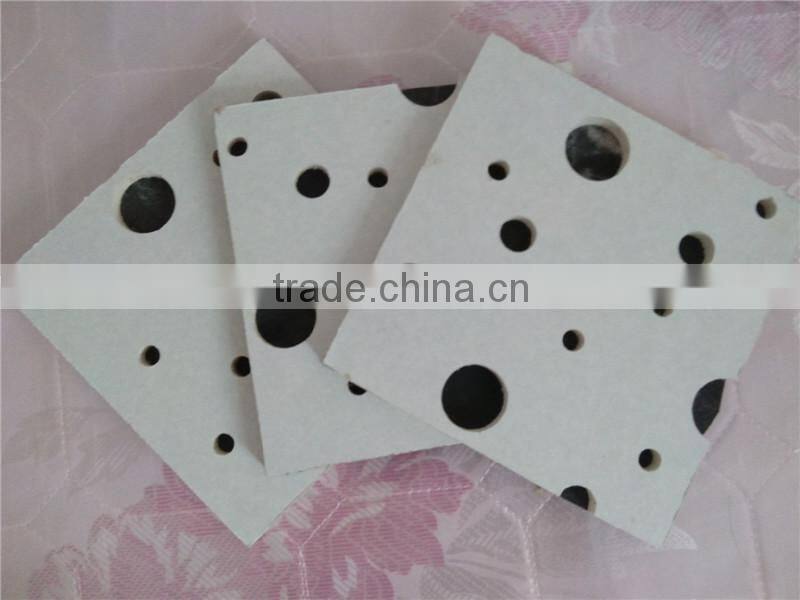

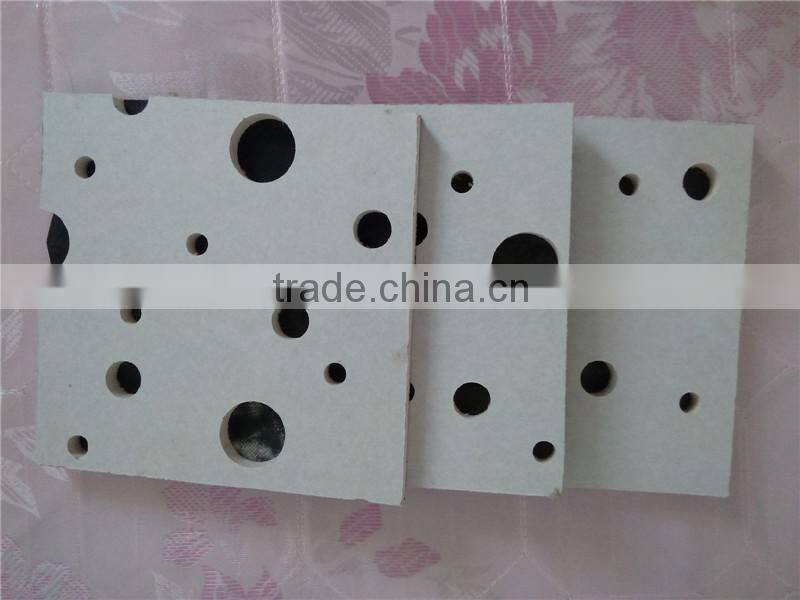

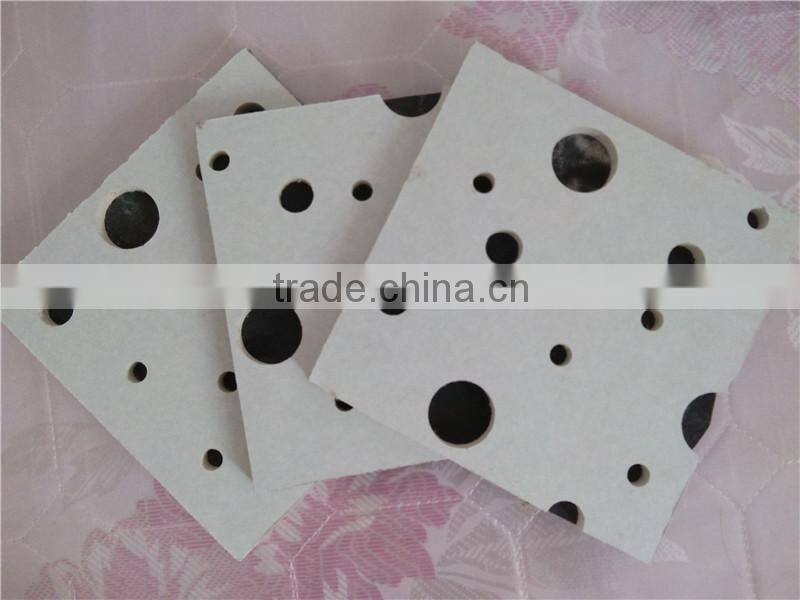

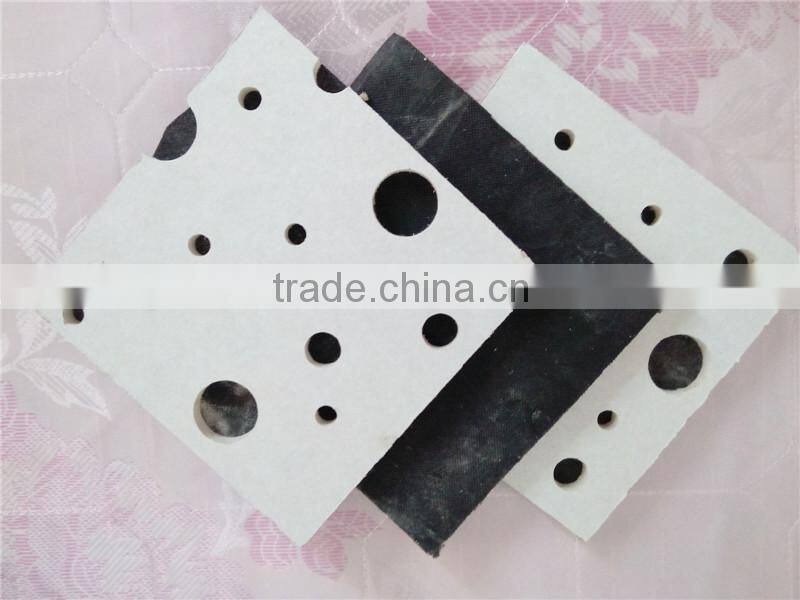

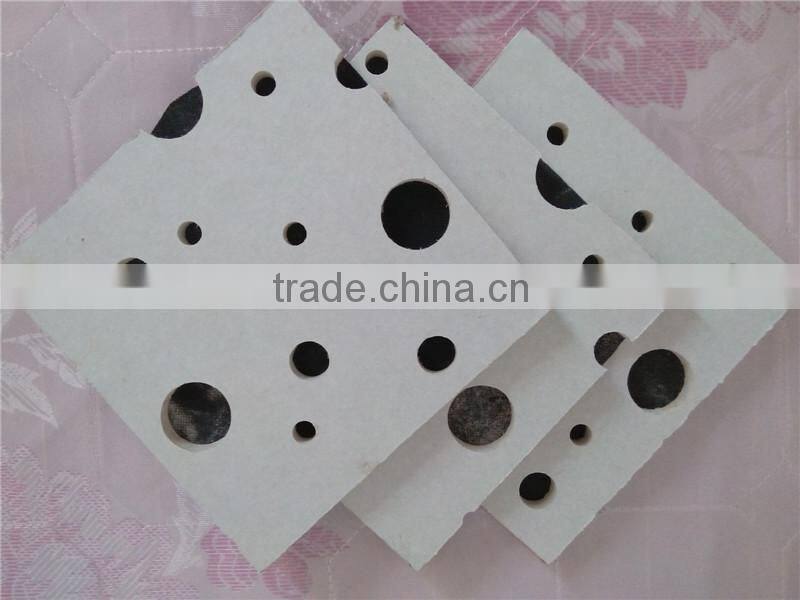

 3.Perforated type:Irregular circular hole

a.Standard size:2400*1200*12.5mm, 600*600*9.5/12.5mm

b.Hole type: Φ6/10, Φ12/20, Φ35/20/12, Φ20/12/8

c.Back non-woven fabric colour:white,black,blue

d.Weight:10.7kg/m2

e.Perforation rate:8.7%-18.1%

f.Acoustic performance

Installation: Match with ceiling T-bar  (we can supply)

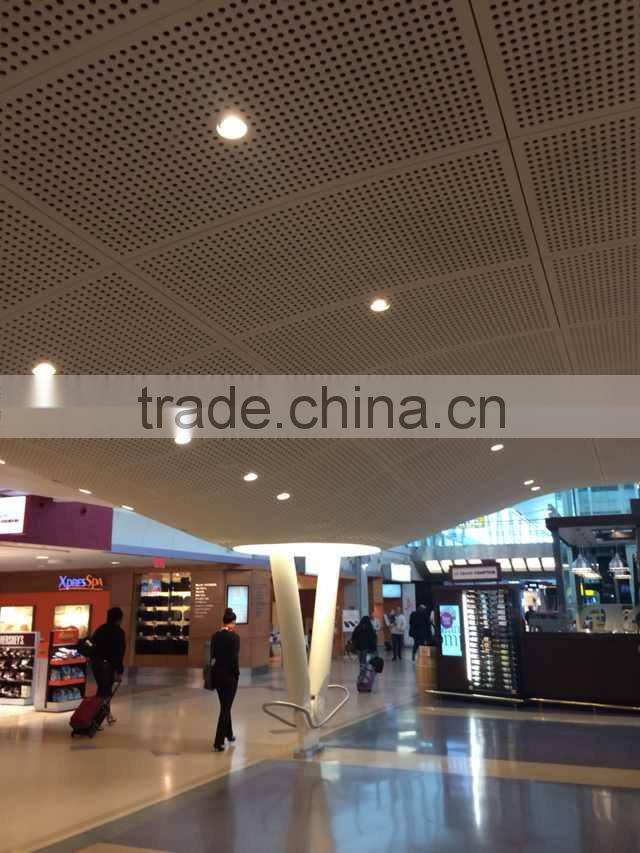

Application

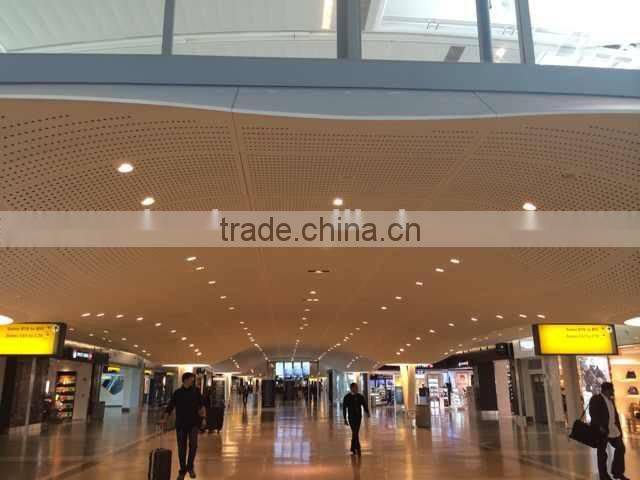

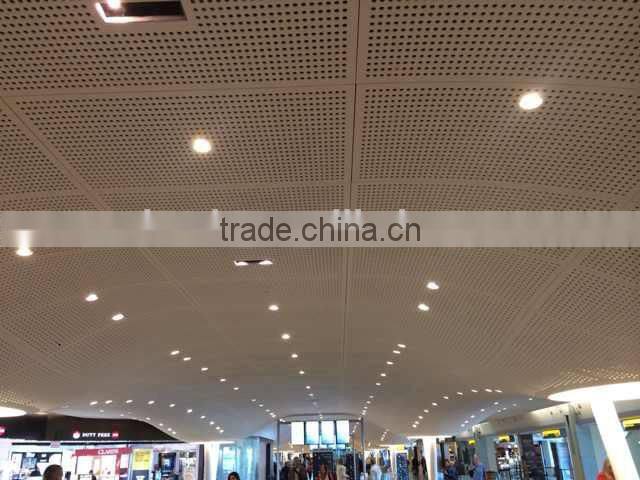

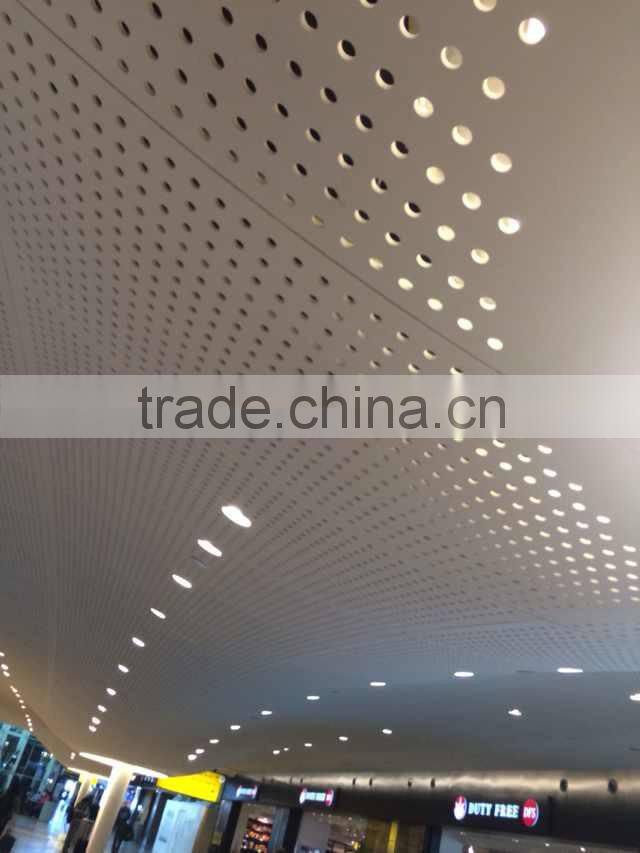

Widely used as suspended ceiling of super class buildings such as restaurants,shopping malls, hospital room,ballroom,hall, theaters, cinemas, railway stations, auditorium, offices, living rooms, offices, electronic room, precise equipment room and the residential construction industry
