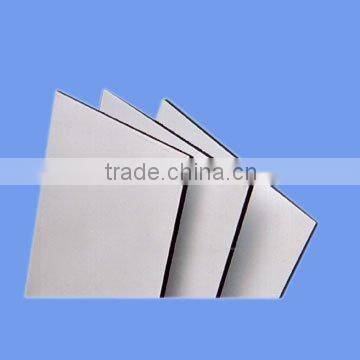

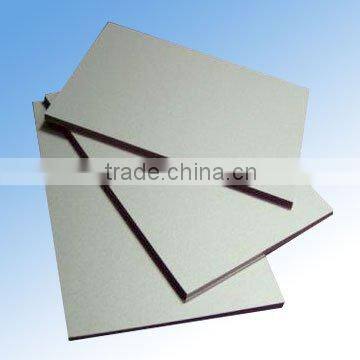

PVDF/PE composite panel

Specifications

PVDF/PE composite panel
1)PVDF coating and ployster coating
2)Total thickness:3mm-5mm
3)Aluminium thickness:0.15mm-0.5mm

 HIGH QUALITY AND LOW PRICE

 PVDF/PE composite panel  Aluminum panel is composite material processed in special equipment ,which uses chemically treated aluminum sheet as the surface of the coating material and polythylene for the core material.

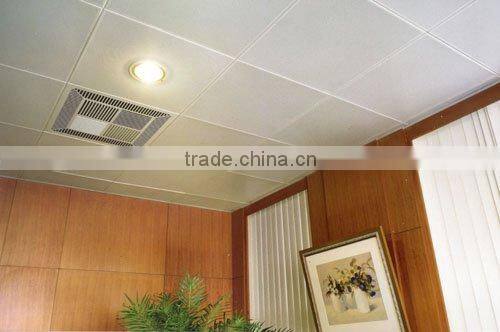

    Its unique performance determines its broad purpose:it can be use for building facades,curtain wall panels,the transformation of building renovate ,interior walls and ceiling decoration ,advertising signs,aircraft Showcase,and purification dust project.



 The characteristics of aluminum composite panel are as follow:



1)Excellent weather ability high strength,easy maintenance

2)Convenient construction,short construction period

3)Excellent process ability,insulation,andante-noise and excellent fire performance

4)Good plasticity,impact resistance,reduces the  building load,shock-proof

5)Formation of good,strong light

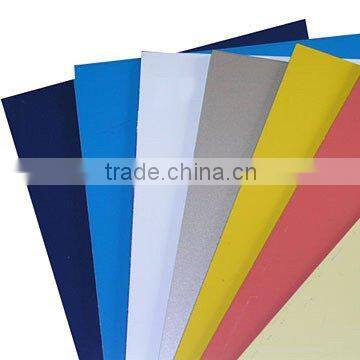

6)Multi-color option

7)Processing machinery and simple,processing the scene



Features:

1)PVDF coating and ployster coating

2)Total thickness:3mm-5mm

3)Aluminium thickness:0.15mm-5.0mm

4)Size:1220*2440

SIZE(mm)	QTY/20'
width*length*total thickness*coil thickness	SHEET
1220*2440*3*0.15*0.15	1600
1220*2440*3*0.18*0.18	1600
1220*2440*3*0.20*0.20	1600
1220*2440*4*0.15*0.15	1550
1220*2440*4*0.18*0.18	1509
1220*2440*4*0.20*0.20	1492
1220*2440*4*0.25*0.25	1408
1220*2440*4*0.30*0.30	1351
1220*2440*4*0.35*0.35	1298
1220*2440*4*0.40*0.40	1269
1220*2440*4*0.45*0.45	1223
1220*2440*4*0.50*0.50	1176
1220*2440*5*0.15*0.15	1350
1220*2440*5*0.18*0.18	1309
1220*2440*5*0.20*0.20	1292
1220*2440*5*0.25*0.25	1208
1220*2440*5*0.30*0.30	1151
1220*2440*5*0.35*0.35	1098
1220*2440*5*0.40*0.40	1069
1220*2440*5*0.45*0.45	1030
1220*2440*5*0.50*0.50	980
