Wheeled Guide
US$ 32.6 - 48.9
MOQ: 200 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Inner Mongolia, China
Brand Name:
LD
Model Number:
5/8" 3/4" 7/8" 1"
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Place of Origin
Inner Mongolia, China
Brand Name
LD
Model Number
5/8" 3/4" 7/8" 1"
Type
Stabilizer
Machine Type
Drilling Tool
Certification
Other, ISO 9001:2008
Material
Other, Chromium molybdenum alloy steel
Processing Type
Other, Machining
Use
Well Drilling
Specifications
1 Identified by ISO 9001:20082 R & D Ability
3 100% Inspection
4 0 Defect
Wheeled rod guide
Our advantages:
1 Identified by ISO 9001:2008
2 R & D Ability
3 100% inspection
4 0 defect
5 Five years' exporting experience
Components of single wheeled rod guide
| NO | COMPONENT NAME | QTY | MATERIAL |
| 1 | Wheel | 4 | Nylon 66 |
| 2 | Roll pin | 4 | Stainless steel |
| 3 | Coupling body | 1 | 35CrMo or other special steel |
wheel

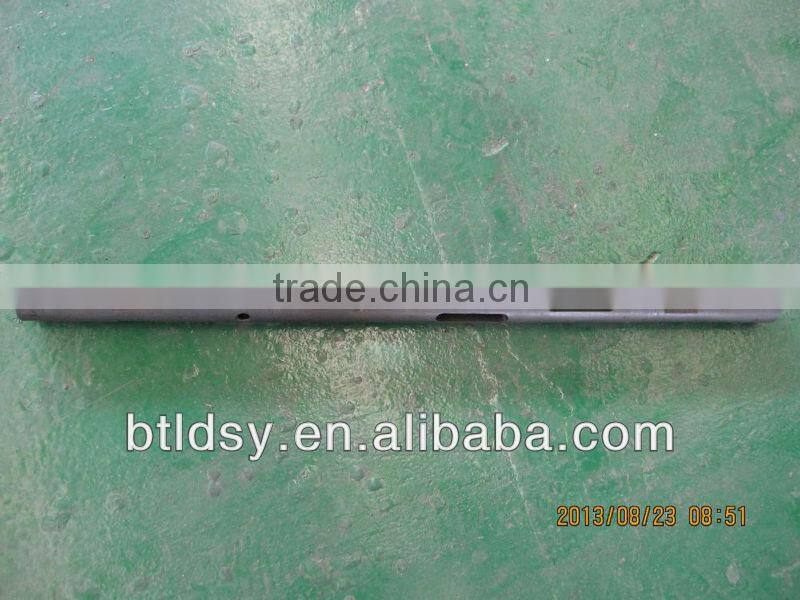

Coupling body
Wheeled rod guide parameters
| NO. | Rod Dimension | Adapted tubing | wheeled rod guide dimension | ||
| Diameter | Length | Length of groove | |||
| 1 | 5/8" | 2-3/8" | 1.5" | 27" | 1.8" |
| 2 | 2-7/8" | 1.5" | 27" | 2.25" | |
| 3 | 3/4" | 2-3/8" | 1.5" | 27" | 1.8" |
| 4 | 2-7/8" | 1.5" | 27" | 2.28" | |
| 5 | 3-1/2" | 1.5" | 31" | 2.75" | |
| 6 | 7/8" | 2-7/8" | 1.625 | 27" | 2.28" |
| 7 | 3-1/2" | 1.625 | 31" | 2.75" | |

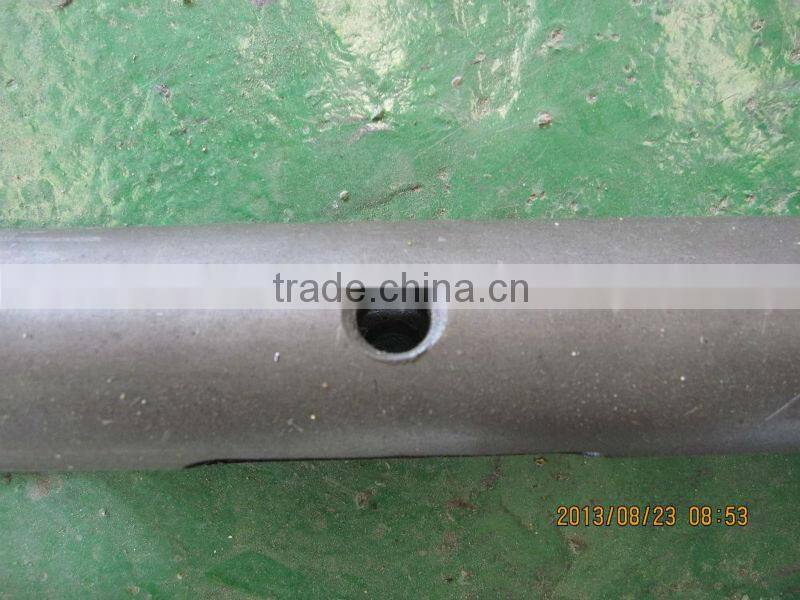

Hole

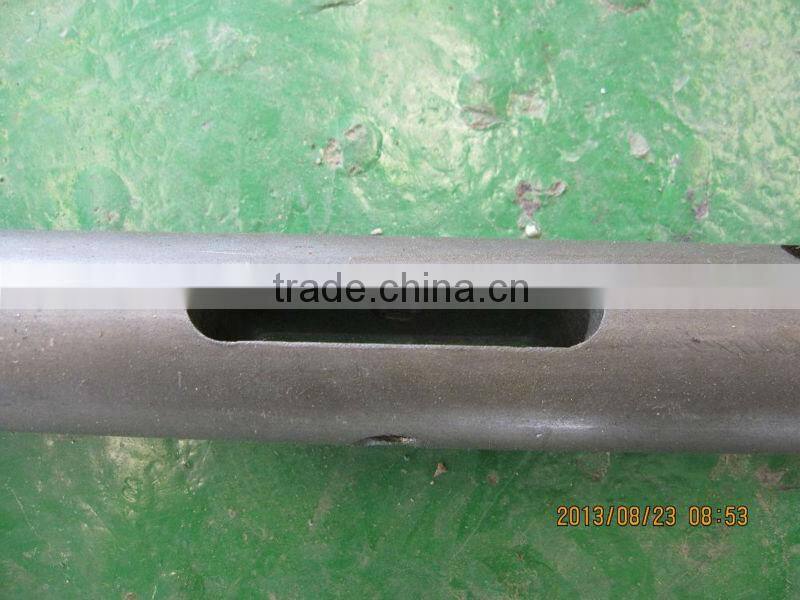

Groove

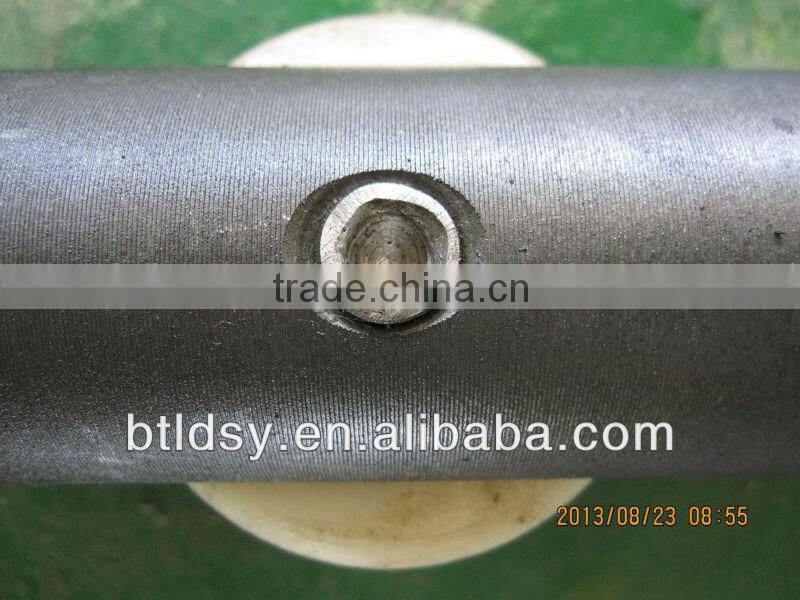

Wheel is set on by steel juarnal and pin

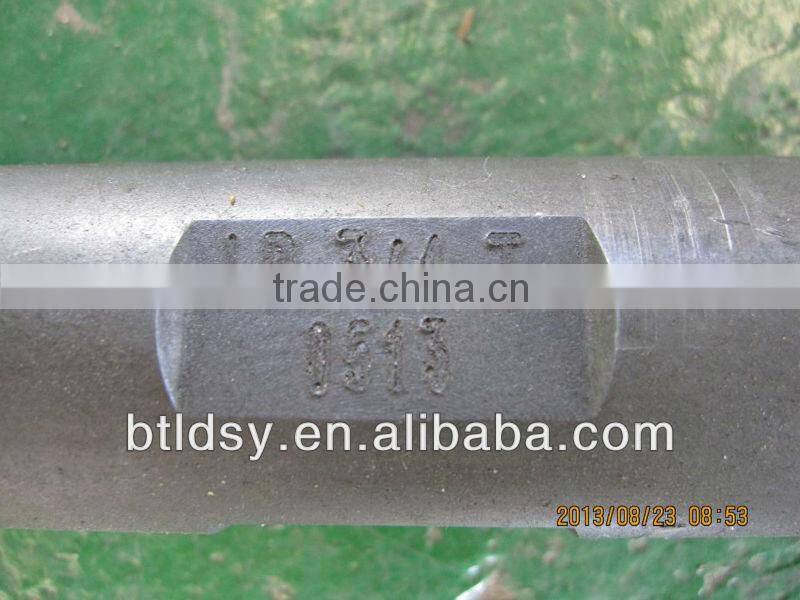

Factory marks and dimension marks

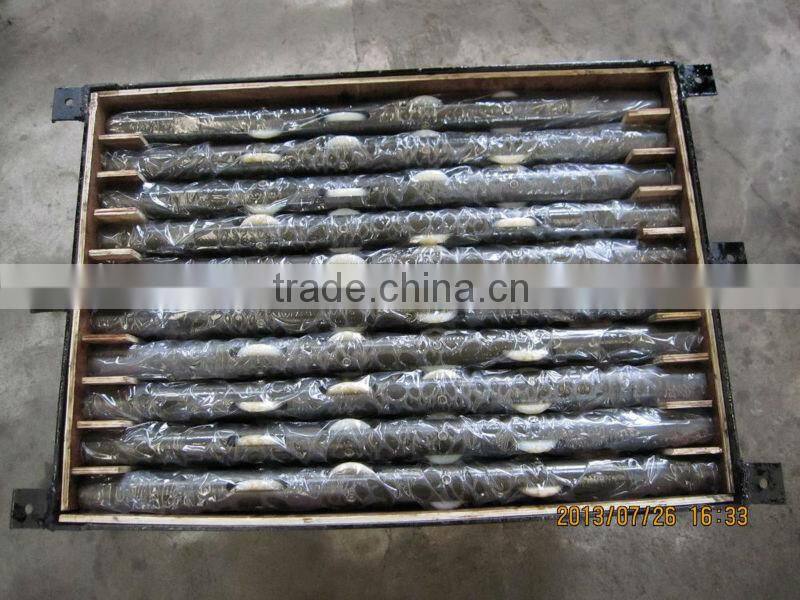

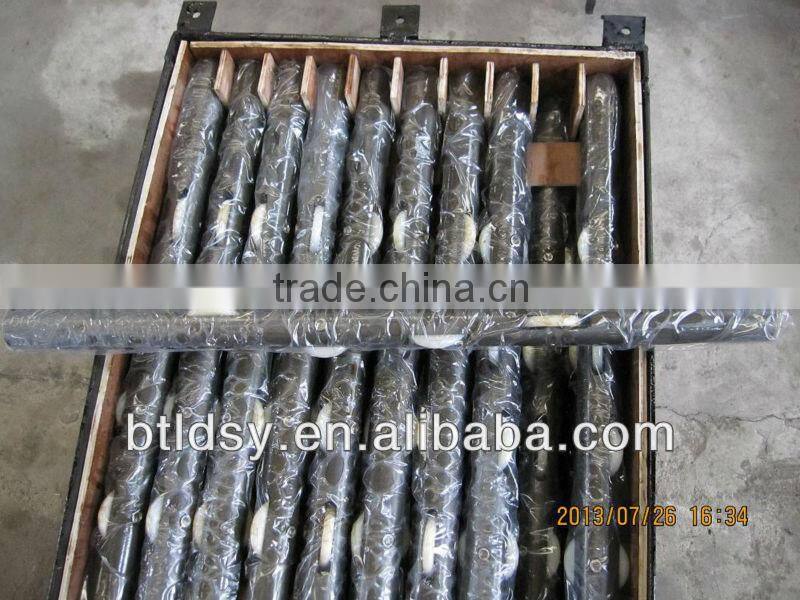

Packaging
We manufacture the wheeled rod guide conform to customers' requirements totally, meanwhile ,we welcom the customers from the countries all over the world to come up wiht precious suggenstions for us, and make the further business cooperation.
