Related Products
Sucker Rod Coupling
Our Advantages:
1 API Certificate
2 R&D Ability
3 100% Inspection
4 0 Defect
5 Many years' exporting experience
Technical Parameters
Full Size Coupling
| Size(in) | Coupling O.D W(mm) (+0.13,-0.25) |
Length L(mm) (+1.57,-0.00) |
Thread D.(in) | Length of Wrench Square (mm) |
Hardness(HRA) |
| 5/8" | 38.10 | 101.6 | 15/16" | 31.8 | 56-62 |
| 3/4" | 41.28 | 1-1/16" | |||
| 7/8" | 46.00 | 1-3/16" | |||
| 1" | 55.60 | 1-3/8" | 38.1 | ||
| 1-1/8" | 60.33 | 114.3 | 1-9/16" |
Slim Hole Coupling
| Size(in) | Coupling O.D W(mm) (+0.13,-0.25) |
Length L(mm) (+1.57,-0.00) |
Thread D.(in) | Length of Wrench Square (mm) |
Hardness(HRA) |
| 5/8" | 31.75 | 101.6 | 15/16" | 31.8 | 56-62 |
| 3/4" | 38.10 | 1-1/16" | |||
| 7/8" | 41.30 | 1-3/16" | |||
| 1" | 50.80 | 1-3/8" | 38.1 |
Full Size Sub-coupling
| Size(in) | Coupling O.D W(mm) (+0.13,-0.25) |
Length L(mm) (+1.57,-0.00) |
Small End Thread D. | Big End Thread D. | Hardness(HRA) |
| 5/8"-3/4" | 41.28 | 101.6 | 15/16" | 1-1/16" | 56-62 |
| 3/4"-7/8" | 46.00 | 1-1/16" | 1-3/16" | ||
| 7/8"-1" | 55.60 | 114.3 | 1-3/16" | 1-3/8" | |
| 1"-1-1/8" | 60.33 | 127.0 | 1-3/8" | 1-9/16" |
Slim Hole Sub-coupling
| Size(in) | Coupling O.D W(mm) (+0.13,-0.25) |
Length L(mm) (+1.57,-0.00) |
Small End Thread D. | Big End Thread D. | Hardness(HRA) |
| 5/8"-3/4" | 38.10 | 101.6 | 15/16" | 1-1/16" | 56-62 |
| 3/4"-7/8" | 41.30 | 1-1/16" | 1-3/16" | ||
| 7/8"-1" | 50.80 | 114.3 | 1-3/16" | 1-3/8" |
Full Size Polished Connection
| Size(in) | Coupling O.D W(mm) (+0.13,-0.25) |
Length L(mm) (+1.57,-0.00) |
Thread D.(in) | Vanish Cone | Hardness(HRA) |
| 5/8" | 38.10 | 101.6 | 15/16" | 9O | 56-62 |
| 3/4" | 41.28 | 1-1/16" | |||
| 7/8" | 46.00 | 1-3/16" | |||
| 1" | 55.60 | 1-3/8" | |||
| 1-1/8" | 60.33 | 114.3 | 1-9/16" |
Slim Hole Polished Connection
| Size(in) | Coupling O.D W(mm) (+0.13,-0.25) |
Length L(mm) (+1.57,-0.00) |
Thread D.(in) | Vanish Cone | Hardness(HRA) |
| 5/8" | 31.75 | 101.6 | 15/16" | 9O | 56-62 |
| 3/4" | 38.10 | 1-1/16" | |||
| 7/8" | 41.30 | 1-3/16" | |||
| 1" | 50.80 | 1-3/8" |
Coupling Mechanical Properties
| Tensile Strength Rm(Mpa) | Yield Strength Rel(Mpa) | Elongation Percentage A(%) | Reduction Percentage of Area Z(%) |
| ≥655 | ≥405 | ≥16 | ≥48 |

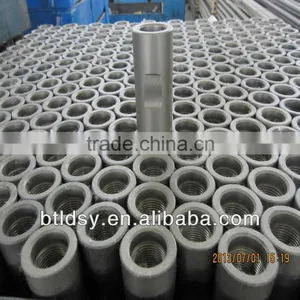

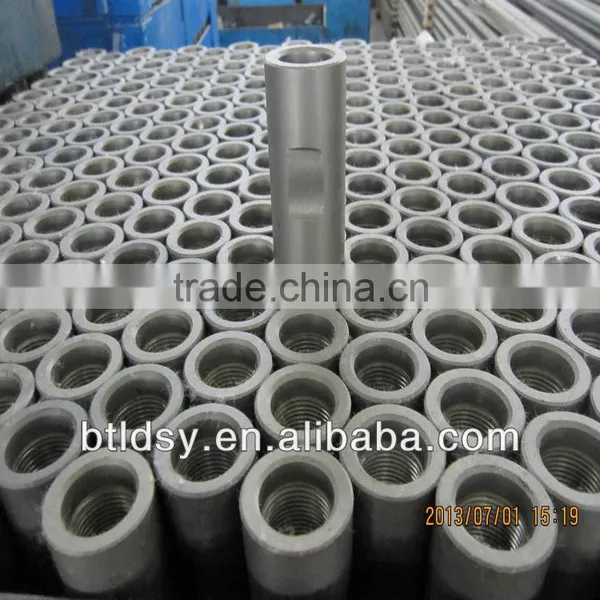

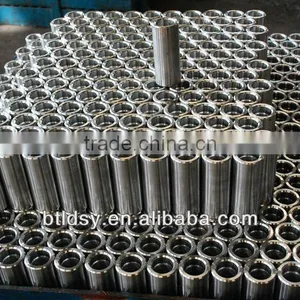

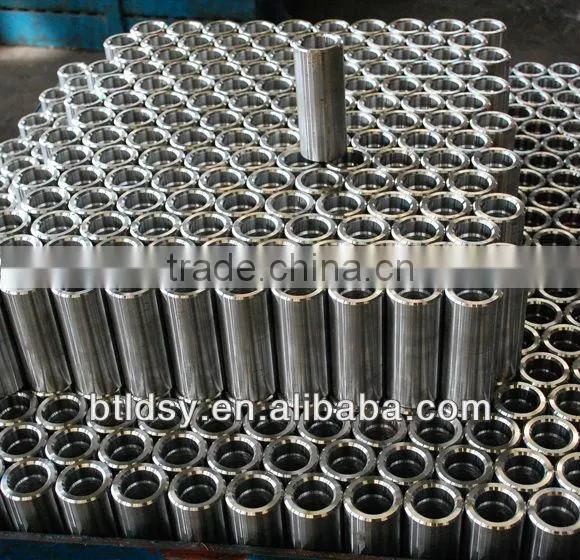

Manufacturing Workshop of coupling

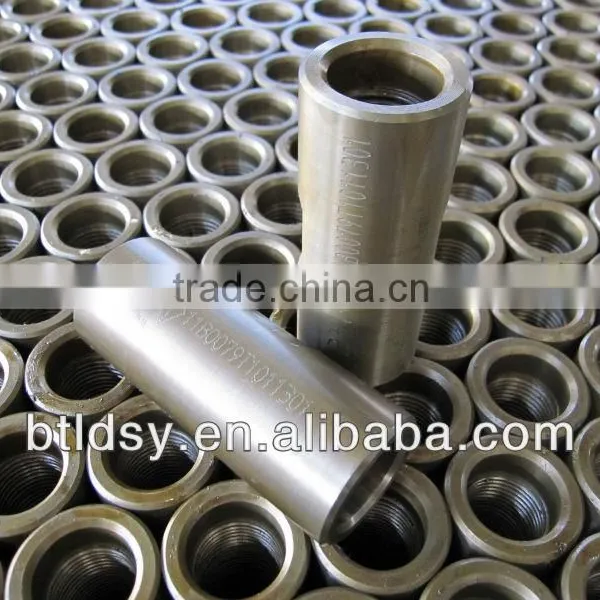

sucker rod coupling

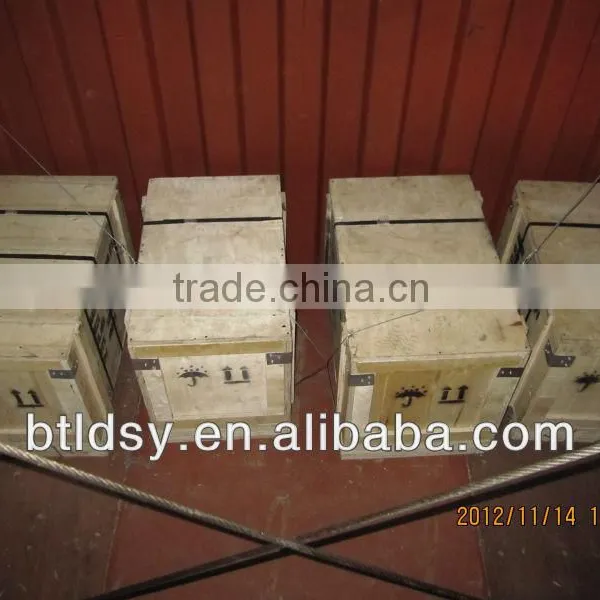

Sucker Rod Coupling Packaging
We are wiling to cooperate with customers from all the places and countries all over the world ,and it will be appreciated if you can provide us with precious suggestions. Looking forward to cooperating with you .
