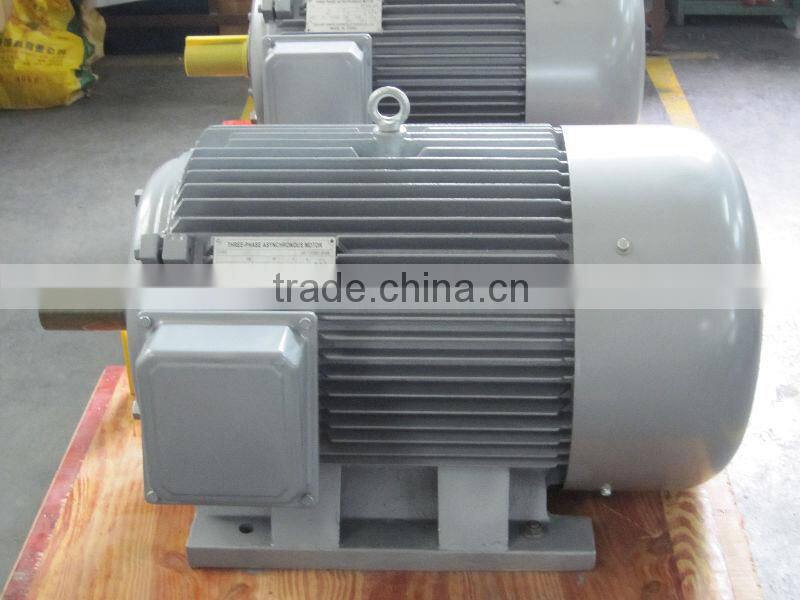

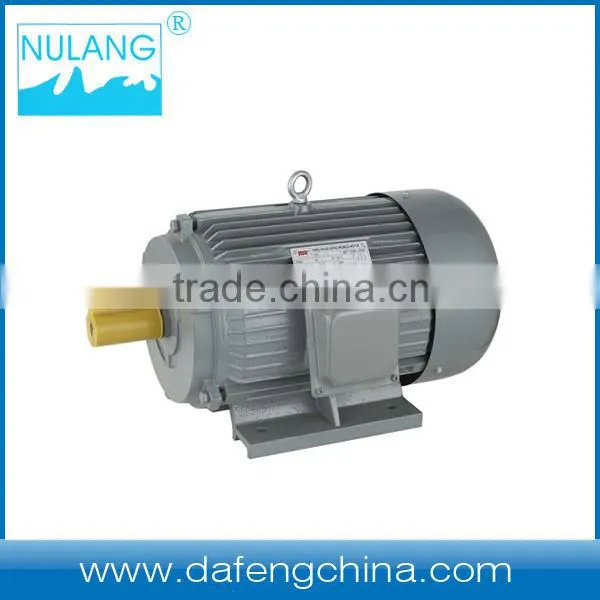

Y Series Three Phase Induction Motor:
Brief:
Y series motors are widely used in many places, where there doesn't exist combustible, explosive or corrosive gas, and without any special requirements, such as machine tools, pumps, fans, transport machinery, mixer, agriculture machinery and food machines, etc.
Detailed information:
1) Frame sizes: 63-315 2) Rated power: 0.12-200kw
3) Rated voltage: 220/380v,380/660v
4) Frequency: 50Hz, 60Hz
5) Protection class: IP44 ,IP54
6) Insulation class: B,F
7) Materials: Cast iron, aluminum (FRAME 63-160)
8) EFF: EFF3, EFF2, EFF1
9) Poles: 2, 4, 6, 8
10) Cooling method: IC411 (total-enclosed fan-cooled type)
11) Mounting types: IMB3 ,IMB5,IMB35,IMB34,IMB14
12) Operating mode: S1
13) Connection: "Y" type for 3kW and downwards, "D"type for 4kW and upwards
14) Ambient temperature: -15C < θ < 40C
15) The altitude should be lower than 1, 000m
16) Relative humidity: Not higher than 90%
17) Special motors can be designed according to
Inner packing:
1) Frame 63-112: Foam boxes
2) Frame 132-315: Wooden boxes
