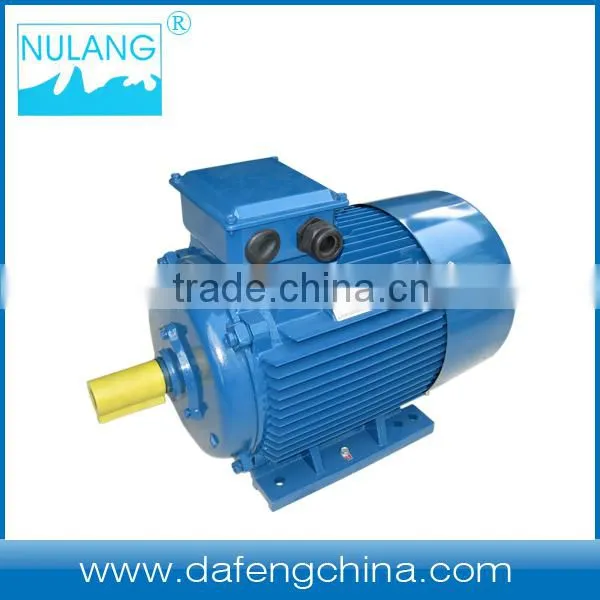

Y2 Series Three Phase Induction Motor:
Brief:
Y2 series three-phase ac motor is specially designed for European market, whose terminal box is located on the top. This motor has a very compact structure and attractive appearance. The sizes and mounting dimensions are produced according to the IEC standard. The motor has some good features, such as high efficiency, energy-saving, high starting torque and easy maintenance.
Detailed information:
1) Frame sizes: 160
2) Rated power: 11 kW
3) Rated voltage: 220 - 660V
4) Frequency: 50Hz, 60Hz
5) Protection class: IP54
6) Insulation class: E, B, F
7) Materials: cast iron
8) EFF: EFF2
9) Poles: 4
10) Cooling method: IC411
11) Mounting types: IMB3
12) Color: blue
13) Operating mode: S1
14) Ambient temperature: -35 oC< &theta < 40oC
15) The altitude should be lower than 1,000m above the sea level
16) Relative humidity: not higher than 90%
17) Special motors can be designed according to customers' requirements
18) Export markets: Europe, North America, the Middle East, Africa, Southeast Asia, East Asia, South America
