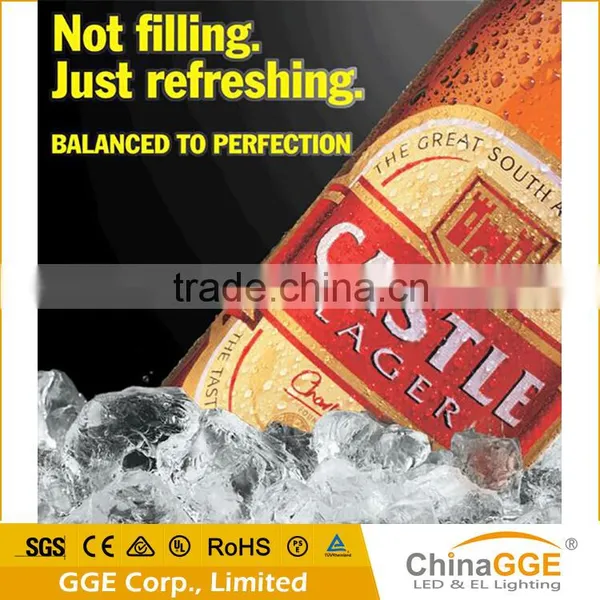

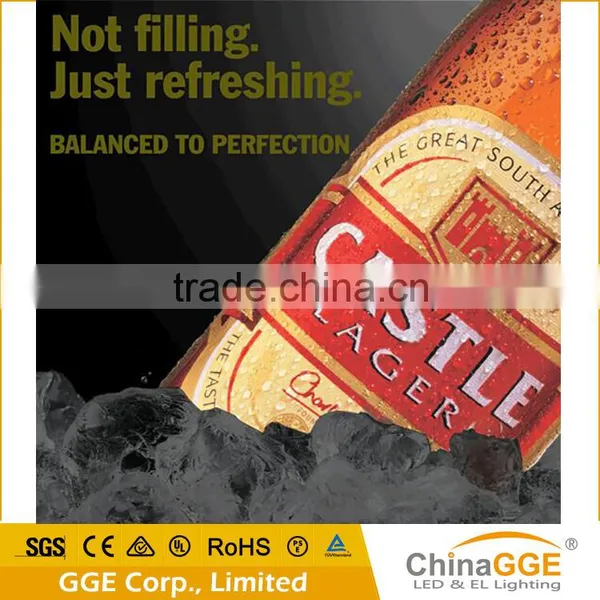

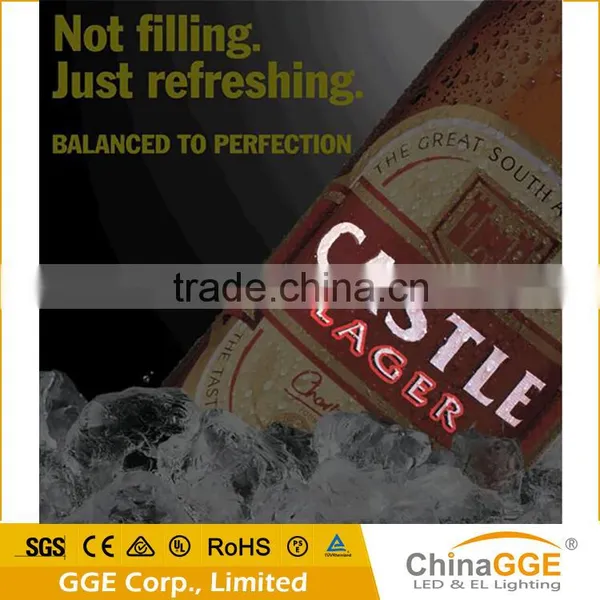

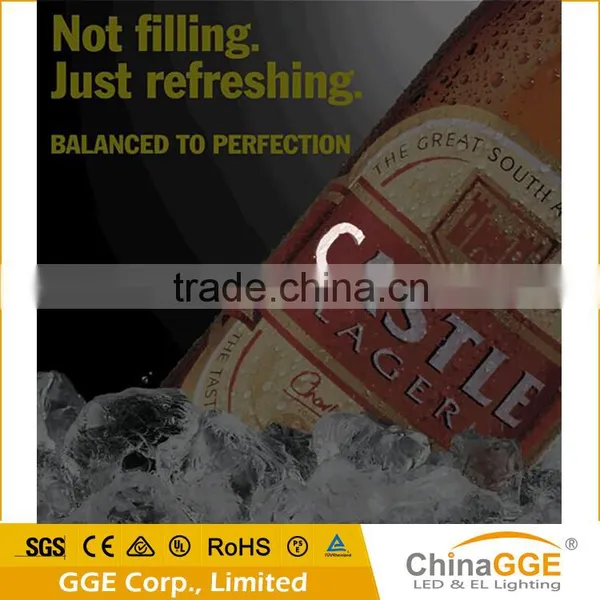

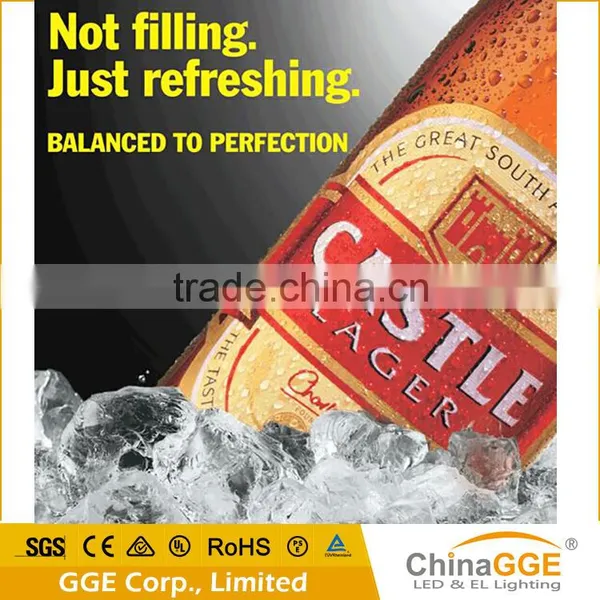

EL backlight flashing light poster advertising display light up el animated panel
EL (Electro Luminescent) display
Electroluminescent Displays are paper thin, flexible panels that can be produced to any size or shape and can be customized to either statically illuminate or animate to any sequence. Prices are dependent upon size, quantity and the illuminated area.

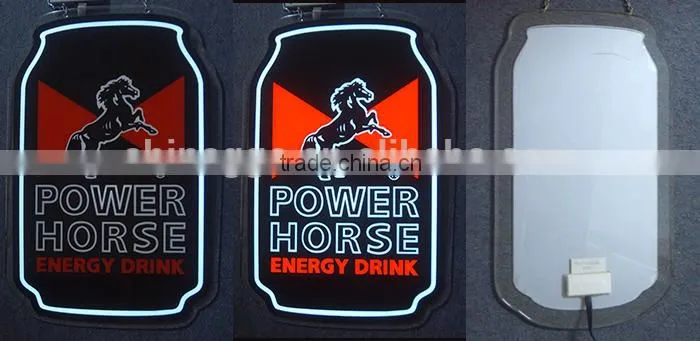

Electroluminescent panels are paper thin panels that illuminate when an electrical current is applied to the panel. A print overlay (clear graphics layer) is laminated on top of the Phosphor layer, which is sandwiched between conductors. When an electrical current is applied to the relevant segment, the Phosphor crystals charge and emit light, which would then illuminate the printed overlay.

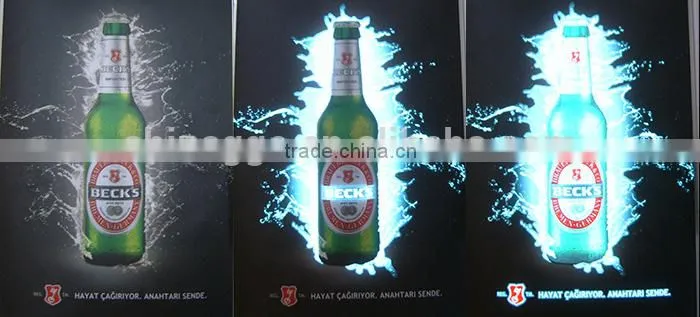

The Electroluminescent panel is connected to an inverter which would control which segments to illuminate and at different intervals, in order to create fantastic eye-catching animations even in bright ambient lighting conditions.

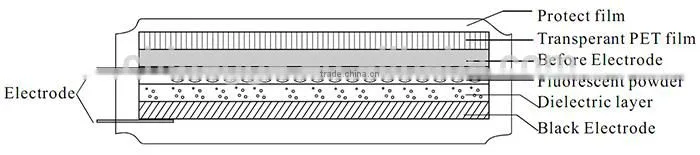

Structure
Characteristics
- Super-thin well-proportioned lightening
- High brightness but low power consumption and environment friendly

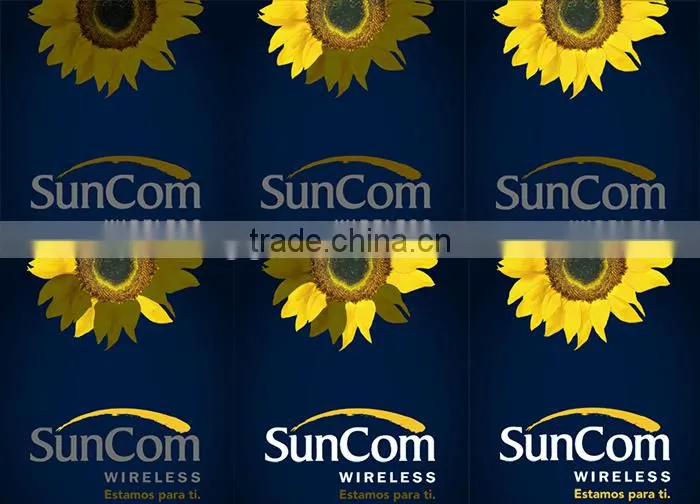

- Flashing in sequences with vivid animation
- Resist high humidity
- Bending Shakeproof
- Use life: over 8,000 hours
- Easy install and wide appliacation
Specificatoins
Name |
EL poster / EL Display |
Components |
EL panel, Inverter and Power cord |
Design |
Flash in sequences according to the customer’s requirement |
Size |
A6 to A0, 1m X 2m (max. single piece size) and any customized size |
Super thin |
0.3 – 0.5mm |
Brightness(100vrm/800Hz) |
70 to 150cd/Square meter |
Life span |
5000 – 20000 hours, depending on the display's environment, driving condition and duty cycle. |
Low consumption |
0.008w/square cm |
Inverter |
AC90 – 220V / DC 12V inverter |
Best Applied Voltage |
100~120VAC |
Best Applied Frequency |
800HZ~1200HZ |
Power(100vrms/800Hz) |
50W/sq m(±5) |
Operating Temperature |
-30°C~50°C(Nor.)/ 80°C(Max) |
Storage Temperature |
-30°C~70°C |
Operating Humidity |
0%~90% |
Bend Radius |
0.25"-Normal 2nd Generation Foil-Foldable |
Soldering Heat Resistance |
250°C 3sec>3mm distance from EL panel with extra force applied. |
Bending range |
Rolled in diameter of 10cm (Min) |
Price |
Base on overall size, light size, flash sequences and quantity |
Production time |
3 to 12 workdays |
Warranty |
6 months |

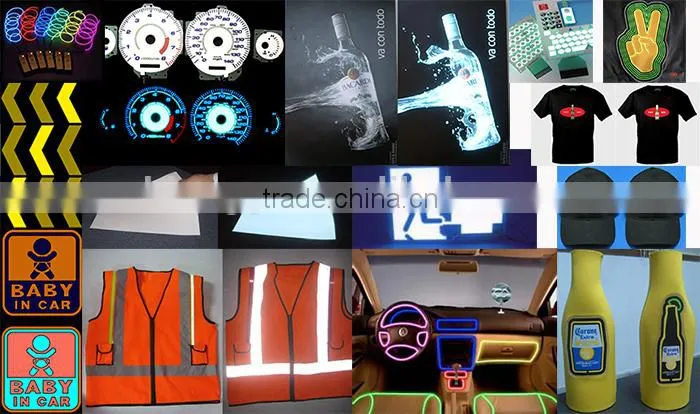

Uses of EL
- LCD back illuminant
Use to series of home electrical appliances, sound equipment, notebook PCs, electric notebooks and notepads, calculators, telephones, apparatuses and instruments.
- Products back illuminant
Safety helmets, safety gilets, safety belts, clocks, watches.
- Motorcar industry
Motor and engine cars meter faceplates, motorcars caution light, the third brake lights.
- Indication sign
Caution signs, road signs, inter passageway signs, traffic signs, project practicing signs, road separated lines, lift floor signs, stair escape sign.
- Advertisement
The carriages outside and inside of buses and trains, advertise lightening box, poster, company-indoor signboard, lay out plat.
- Presents and toys
Design about lightening album, Xmas light decorates, presents, toys.

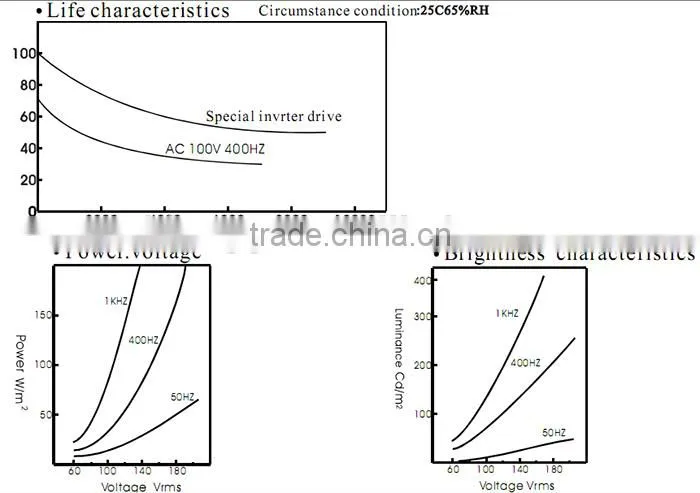

Representative characteristics
Prevention and Protect
The least bending radius of 1 EL is 5mm, don’t give any pressure on the interface.
With the soft alcohol-dipped clothes wipe the lightening face.
The jointing area is metal electrode top (keep the distance from edge 5mm), under the temperature 320℃, time less than 3s/times.
Packing
Carton/wooden case+bubble pack
Shipping
1). FedEx/DHL/UPS/TNT for sample order, Door-to-Door;
Our Services
What we can offer?
1. If any inquiry on our products, we would reply to you within 12 hours!
2. We have experienced, enthusiastic sales team and service team who can speak fluently in English.
3. We offer OEM services. We can make your own logo design on the product, can provide customized retail box packaging, meet all your needs.
4. FREE SAMPLE in small size available for quality testing.
* ISO 9001:2008, SGS, more than 10 years Alibaba Gold Supplier certificated
* Monthly Production Capacity -- 50,000pcs lightboxes
* All goods examined before delivery by 10 QC staff
* Prompt Reply Within 12 Hours

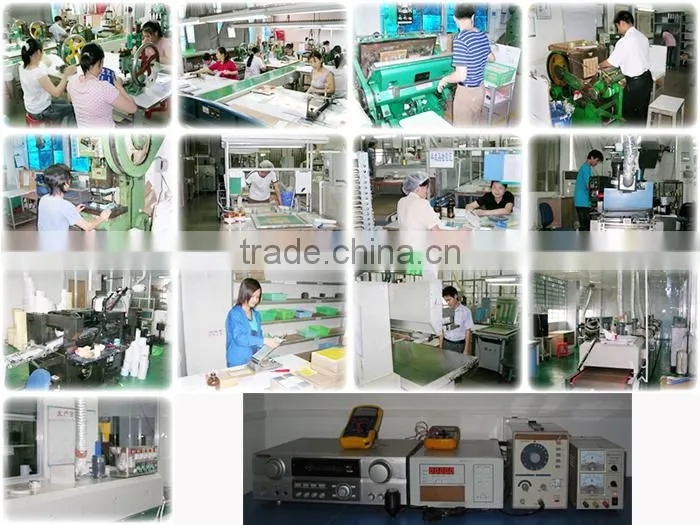

* 3000 square meters workshop area
Until now, we have attended three trade shows: 2012 Hong Kong Electronic Fair(Oct.13-16th) held in Hongkong, 2014 Guangzhou Sign China Expo(Feb. 23-26th) held in Guangzhou and 2014 ISA International Sign EXPO(Apr. 24-26th) in Orlando, USA.
1. Are you the factory or trading company?
We are a factory located in Bao'an District, Shenzhen. Thus we have a good control on the quality and lead time. Will quote to you very good price. OEM order welcomed.
2. May I make the sample order fist?
Sample order welcome. Free sample available.
3. What's the MOQ of the light box?
We accept order with 1pc MOQ.
4. How long is the lead time?
Usually, the production time would take about 6-8 days, depends on your qty of the order.
