CE Europe II Approve 168f-1 Gasoline Engine

Specifications

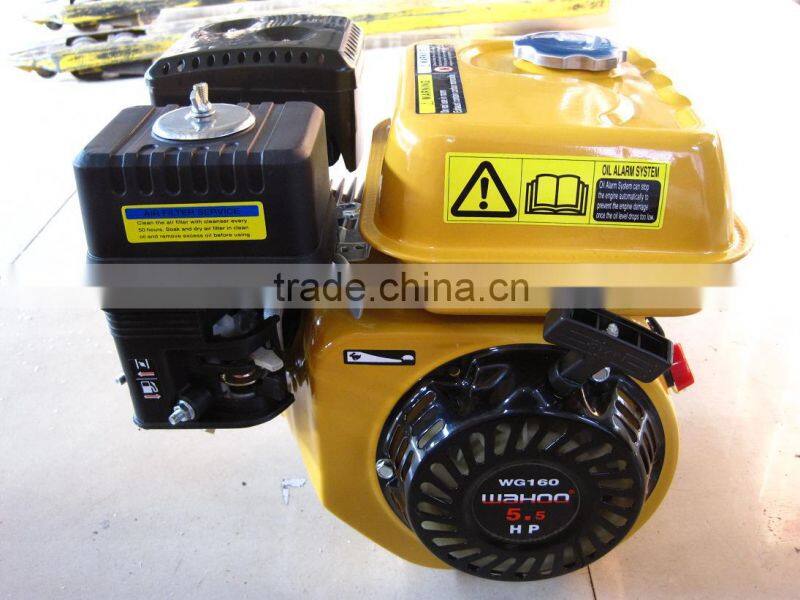

4 Stroke Gasoline Engine WG160(5.5Hp)
1.5.5Hp gasoline engine
2.4-stroke gasoline engine
3.non-contact transistorized ignit

WG160	Wahoo 11hp gasoline engine specification
Engine type:	4-stroke 25°inclined single cylinder,air-cooled
Bore×stroke:	68mm×45mm
Displacement:	163cc
Compression ratio:	8.5:1
Max.Power output:	5.5Hp/3600rpm
Max.Torque:	9.5N·m/2500rpm
Ignition system:	Non-contact transistorized ignition (TCI)
Start mode:	Recoil and hand-operated
Air cleaner:	semi-dry.Oil bath.Dual.Double silent and cyclone type
Fuel tank capacity:	3.6L
Fuel consumption:	295g/Hp·h
Engine oil capacity:	0.6L
Net weight/Gross weight:	15/16kg
Dimension(L×W×H)(mm):	405×335×370





CE certificate

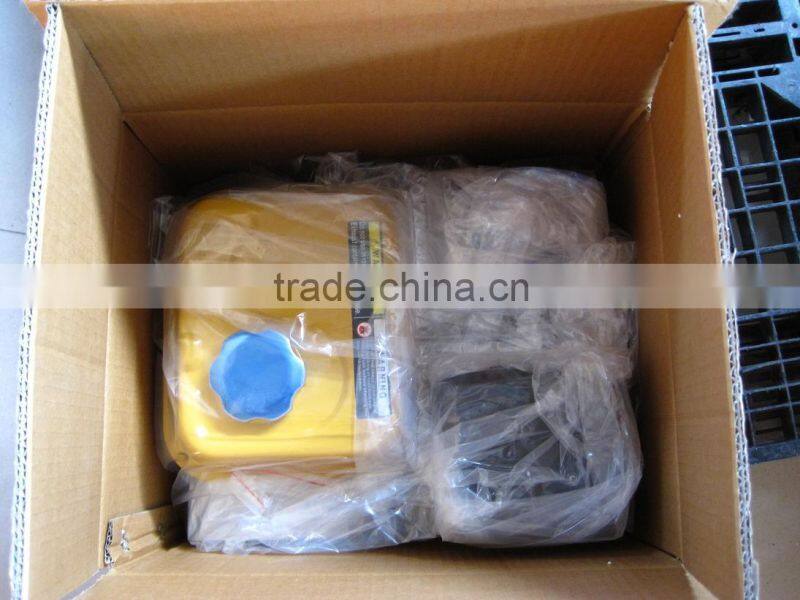

Every sides of goods

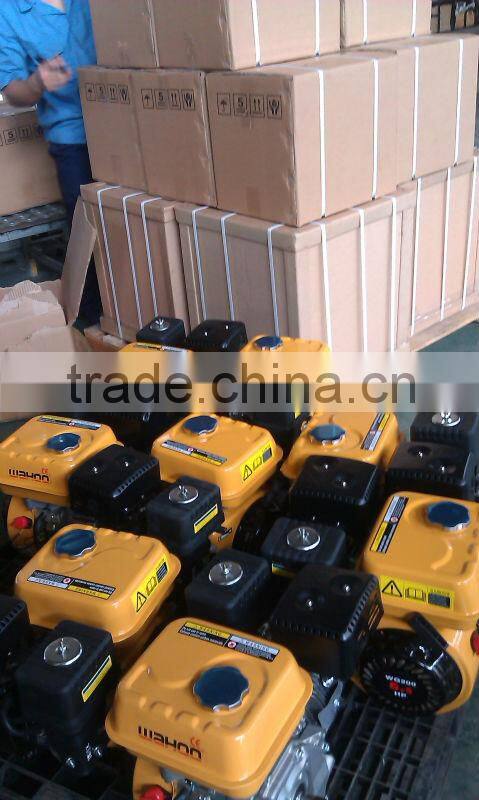

Container loading

Wahoo showroom

Wahoo Factory

Canton fair booth



• We inspect every machine before packing.
• All orders are shipped directly from our warehouse.
• Protective packing materials will be added in your goods at no cost if needed.
• Welcome to contact us if you have any question before you make an order.
• We will inform you and tracking for you in time after shipped the order.
• Feel free to contact us if you have any problem to use the machine when you received it.































Remarks:















• The specification and function are in accordance with our catalogue.
• Payment term: 30% T.T deposit in advance,the balance payment before delivery.
•  Delivery time:20-25days after received  deposit
• Validity of price: with 30 days after quotation.
• Price Basis: FOB Ningbo.
