Glass Bottle Alcohol Wine Bottling Machine
wine filling machine Equipment description:
1.This kind of wine filling machine combines washing,filling and rotary capping functions in one unit.It is a fully automatic and high efficiency liquid packing equipment.
2. wine filling machine is suitable for packing beverage containing gas. wine filling machine 's performance is as following all parts,for instance, filling valve, which directly contact medium are made of stainless steel or harmless material. So it conforms to the requirements of Food sanitation. Sealing parts are made of heat-proofing rubber, in order to meet the technique requirements of users to sterilization at high temperature.
3. wine filling machine Using programmable controller to realize fully automatic control from bottles entering to finishing packing, wine filling machine Using transducer as speed regulator, so the user can regulate the machine easily to suit different power requirements, Adopting equal pressure filling principle and current spring valves in order to assure beverage quality, Using advanced magnetic coupler to regulate cap-screwing torque, in order to assure capping quality.
glass Bottle Alcohol Wine Bottling Machine model list :
Model |
DCGF18186 |
DCGF24248 |
DCGF323212 |
DCGF404015 |
DCGF505018 |
DCGF606020 |
Head of washing, filling, sealing |
18-18-6 |
24-24-8 |
32-32-8 |
40-40-10 |
50-50-18 |
60-60-20 |
Production capacity (bottle/hour) |
5000-6000 |
6000-7000 |
8000-9000 |
10000 |
11000 |
15000 |
Suitable bottle diameter(mm) |
φ=50-100 H=150-310 330-1500ml |
φ=50-100 H=150-310 330-1500ml |
φ=50-100 H=150-310 330-1500ml |
φ=50-100 H=150-310 330-1500ml |
φ=50-100 H=150-310 330-1500ml |
φ=50-100 H=150-310 330-1500ml |
Filling precision |
≤±5mm |
≤±5mm |
≤±5mm |
≤±5mm |
≤±5mm |
≤±5mm |
Motor power |
3.84kw |
4.1kw |
5.6kw |
7.5kw |
9kw |
11kw |
Filling pressure |
≤0.4 |
≤0.4 |
≤0.4 |
≤0.4 |
≤0.4 |
≤0.4 |
Overall dimension (mm) |
2400×1900×2300 |
2800×2100×2300 |
4200×2300×2300 |
5000×2800×2400 |
5900×3100×2400 |
6500×3500×2400 |
Weight(Kg) |
3000 |
4000 |
5000 |
7500 |
9000 |
11000 |

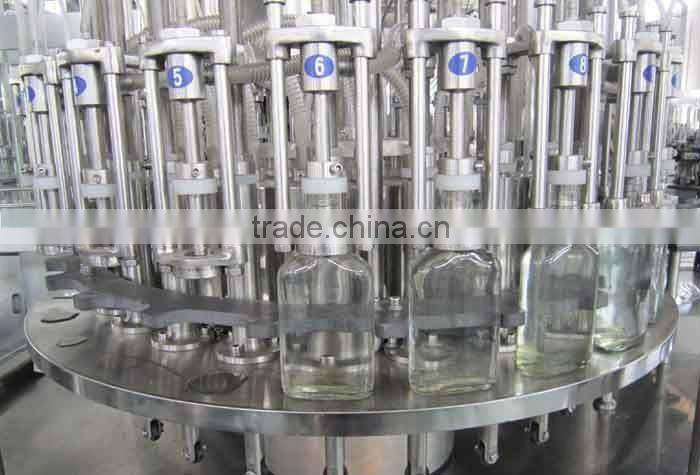

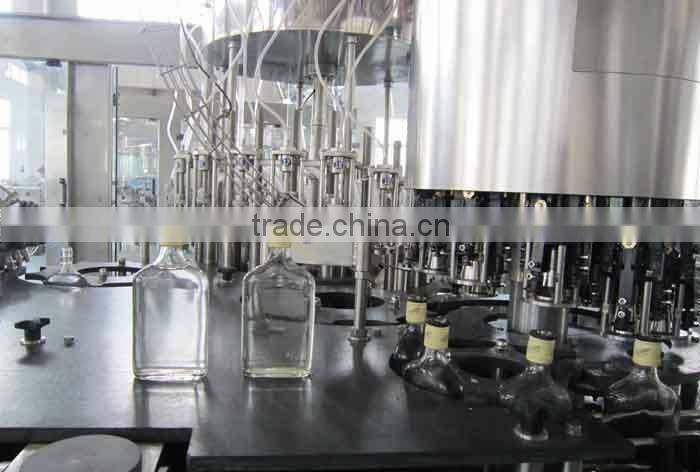

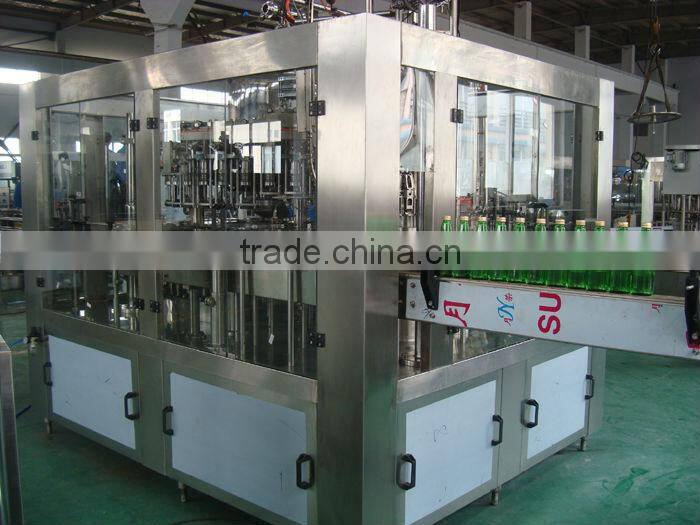

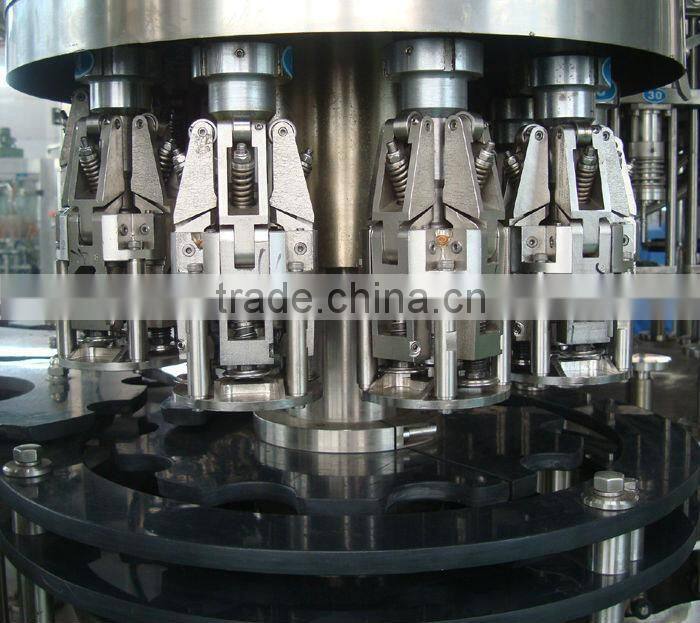

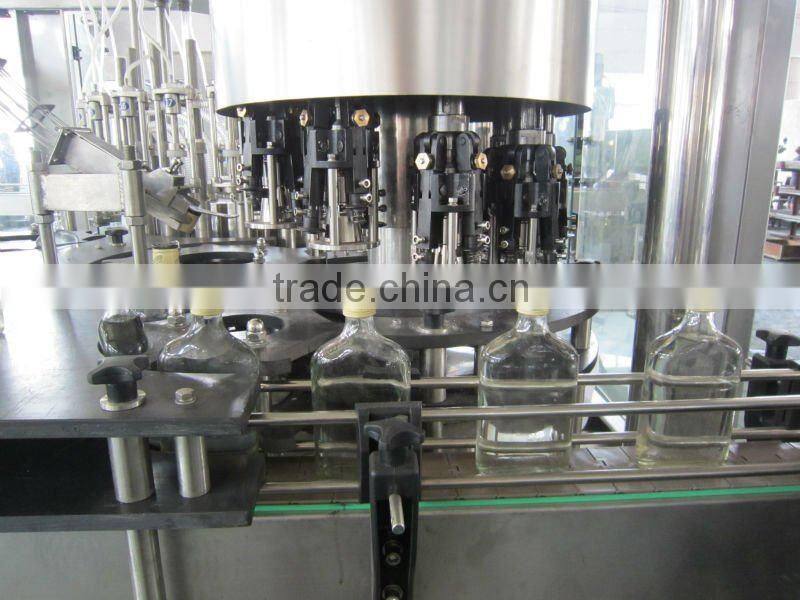

Glass Bottle Alcohol Wine Bottling Machine photos:
