OK-033 High Speed PE Film Shrinking Sealing Machine

OK-033 High Speed PE Film Shrinking Sealing Machine thumbnail-1
OK-033 High Speed PE Film Shrinking Sealing Machine photo-1
US$ 1 - 21,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Application:
Beverage, Food, Other, Beverage, Food, Machinery & Hardware, High speed PE film shrinking sealing machine
Packaging Type:
Bags, Barrel, Bottles, Case, Other, Bags, Barrel, Bottles, Case, High speed PE film shrinking sealing machine
Contact Supplier Request Quote Chat Now
Shanghai Ok Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai port for High speed PE film shrinking sealing machine
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Application Beverage, Food, Other, Beverage, Food, Machinery & Hardware, High speed PE film shrinking sealing machine
Packaging Type Bags, Barrel, Bottles, Case, Other, Bags, Barrel, Bottles, Case, High speed PE film shrinking sealing machine
Packaging Material Glass, Plastic, Wood, Other, Glass, Plastic, Wood, High speed PE film shrinking sealing machine
Automatic Grade Automatic
Driven Type Electric
Voltage 380V
Power 2.2KW, 3.7KW , 4.5KW , 5.5KW , 7.5KW
Place of Origin Shanghai, China
Brand Name OK Machinery
Model Number BCGF
Dimension(L*W*H) 2200X2100X2200MM
Weight 1900KG , 2500KG , 3500KG
Certification CE, CE
After-sales Service Provided Engineers available to service machinery overseas

High speed PE film shrinking sealing machine



Technical parameter:

Facility model: OK-350A type

Facility overall size: :L12000×W1100×H2100mm

Facility overall size: Main equipment:L12000×W1100×H2100mm

Shrinkage machine:4200×1100×1700mm

Wrappage max size:L2400×W650×H450mm

shrinkage film material: PE

shrinkage film thickness:0.03-0.15mm

thermo shrinkage tunnel max temperature: 160 - 260° adjust at will

max output per minute: 16-20 bag

facility power:25Kw

actual power:20Kw/h

pressure requirement: 380V/50-60HZ

facility weight: 2500

air pressure:  0.6-0.8mpa

working noise:≤65db

import bottle convey belt width: 541mm

fan:1.1Kw  3set 380V, 60W  6set  380V





OMRON : PLC controlling system

WEINVIEW:Touch Screen

Taiwan Airtac pneumatic component 1set

Taiwan Telta transducer 2set

Stainless steel wing heating tube 12pcs

China-USA cooperation Teflon convey belt.

Shanghai HEMEI motor and Zhenjiang Taili worm derailleur.

South Korea Autonics photoelectrical switch, approach witch

thermo sealing knife aluminum casting heating board, even temperature, long usage life, our company special production.

whole machine appearance plastic spray, machine rack adopt to high-quality carbonated steel, main part adopt to stainless steel.

Wooden case and wrappage film separate package.



Product instruction

frequency converter speed adjust,two segment convey device.

Bottle pushing, thermo sealing and cutting whole movement adopt to pneumatic fracture.

Proximity switch control film length

Touch screen, PLC system greatly increase facility movement reliability.

Three-wind recycle fan machine, ensure shrinkage tunnel inside even temperature.

Super big wind-volume cooling system, ensure quickly get into shape .

Anti-high temperature teflon convey belt, convey steadily, high-strength anti-abrasion.

Frequency limitless speed adjust convey belt frame.

convey belt height can make according client requirement, adjust range:±100mm

Wing stainless steel heating system, endurance

Meet with product instant stop requirement product-bearing rack device ensure production line consistency.

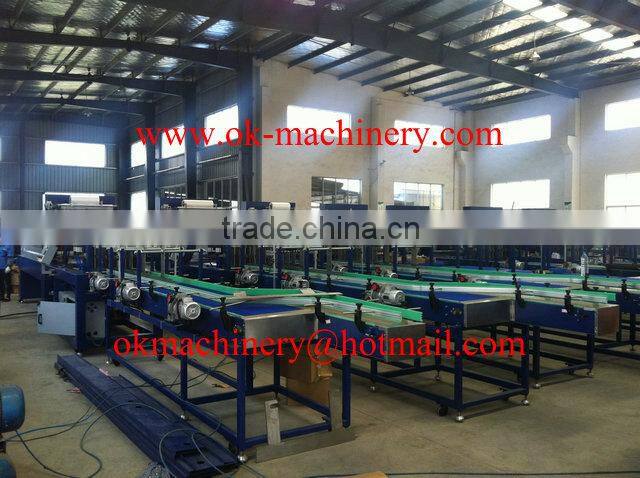

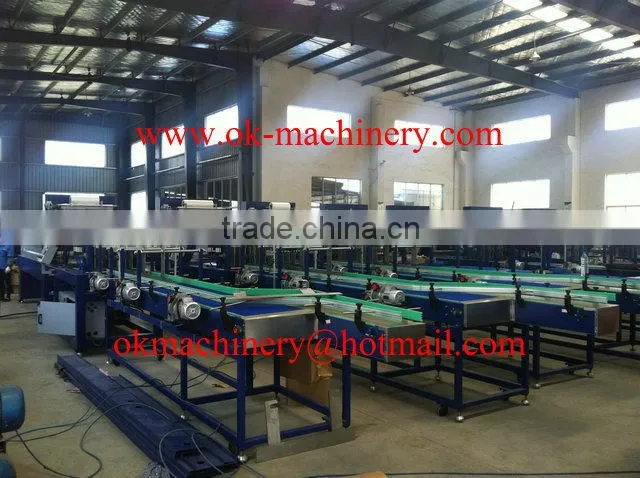

OK-033 High speed PE film shrinking sealing machine

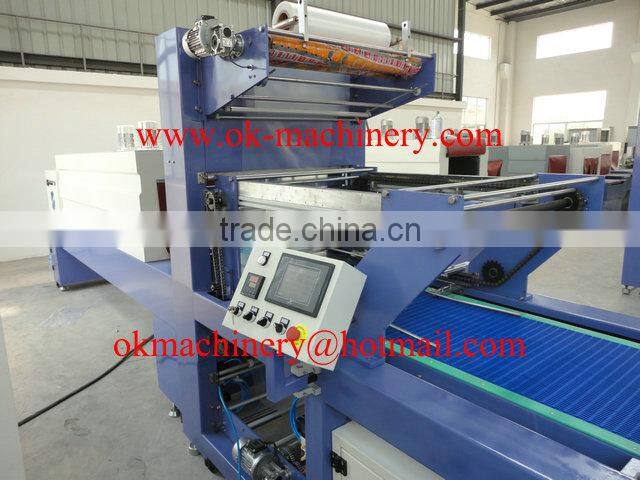

OK-033 High speed PE film shrinking sealing machine

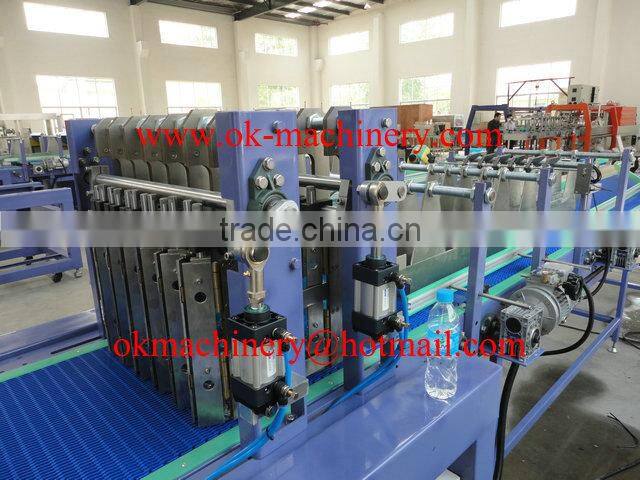

OK-033 High speed PE film shrinking sealing machine

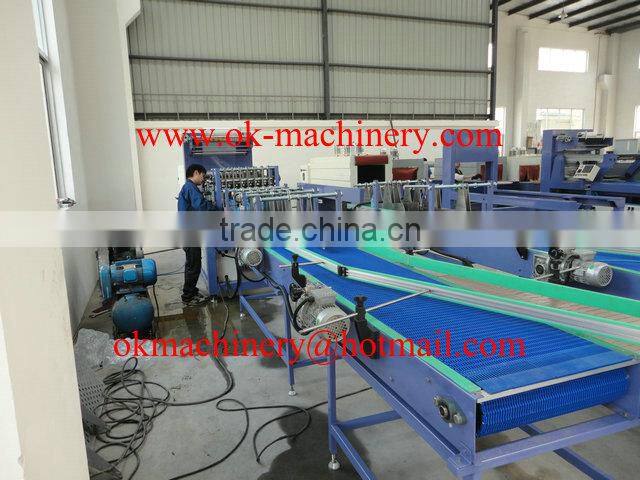

OK-033 High speed PE film shrinking sealing machine

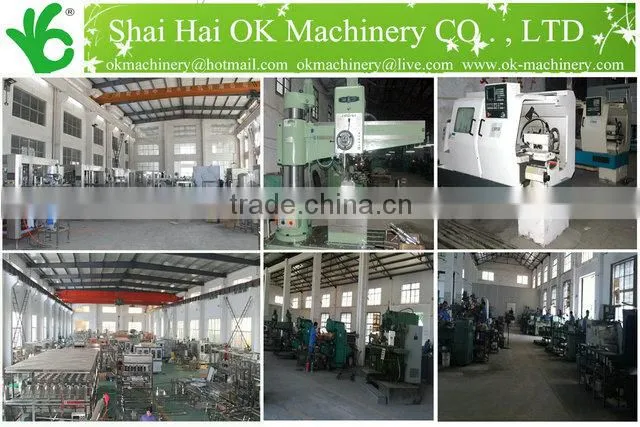

Shanghai OK machinery Co., Ltd. was established in 2000, It's a professional manufacturer of liquid food and beverage equipment.

 We have good experience especially in filling and capping technology and they provide customized service and turnkey project.

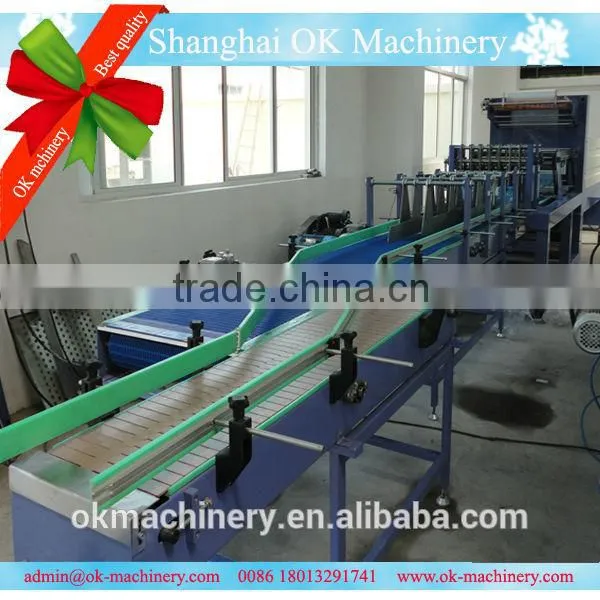

OK-033 High speed PE film shrinking sealing machine



The products scope as below:



PET bottle filling machine,

As : PET bottle water , PET bottle juice , PET bottle cola , PET bottle wine oil .....

Glass bottle  filling machine,

As : glass bottle beer , glass bottle cola , glass bottle juice

Capping machine,

Pet cap , metal cap , crown cap

Bottle washing machine,

Water treatment system

Oil filling machine/piston filler,

Other bottle filling machine,

beer filling machine , beer filler , beer equipment

Labeling machine,

Film shrinking wrap packing/package machine,

Bottle unscrambler,and some drinks production line auxiliary.
