Home > Construction & Decoration > Lock > Door Lock > Fingerprint Lock Mechanism Key

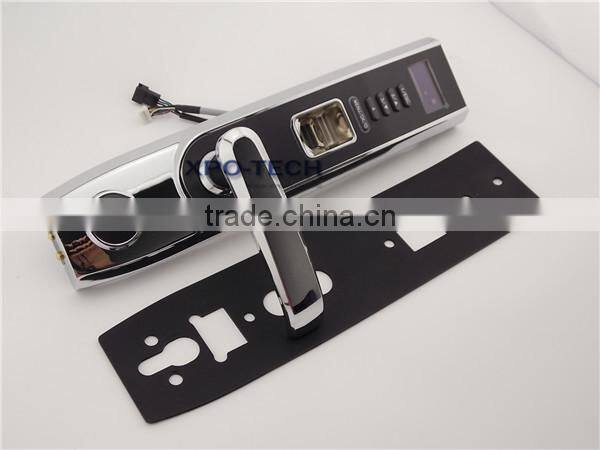

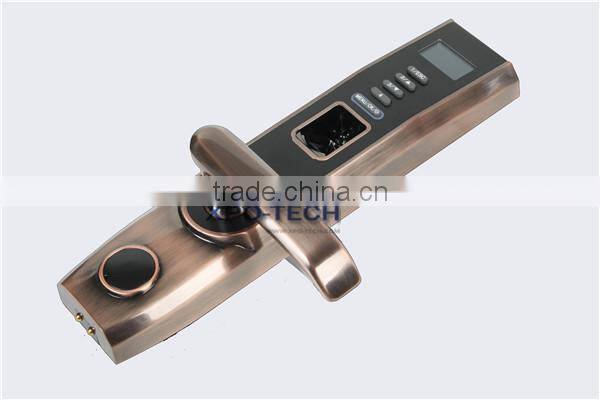

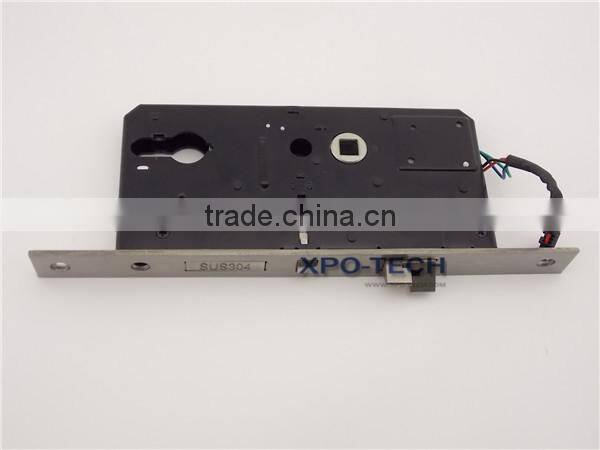

Fingerprint Lock Mechanism Key

Name: Fingerprint Lock Mechanism Key
Brand: No brand
SKU: 118766145
Availability: InStock

Fingerprint Lock Mechanism Key thumbnail-1

Fingerprint Lock Mechanism Key thumbnail-2

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Place of Origin:

Guangdong, China

Brand Name:

No brand

Model Number:

L5000

Contact Supplier Request Quote Chat Now

Shenzhen Xpo Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

SHENZHEN

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Guangdong, China

Brand Name No brand

Model Number L5000

fingerprint lock mechanism L5000

Unlock mode:

The fingerprint lock offers state-of-the art single door management solution that provides you with

unmatched options that comes with OLED, Standard USB interface. You can verify a person and

open the door with fingerprint, password, ID/IC cards optional. The All-in-one fingerprint

lock is very convenient to operate.

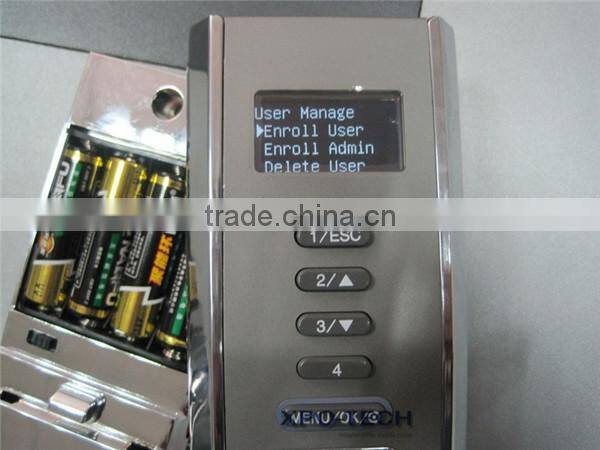

Enrollment and management of users are done on the OLED display. There are three user levels

available to manage the system effectively-administrator, supervisor and user. An administrator or

supervisor can do add, delete or change users very easily at the lock.

The USB Port for data transmission is the main feature of the lock which makes it easy to

download user transactions from the lock – Professional and Intelligent.

MULTI-FACTOR IDENTIFICATION METHODS:

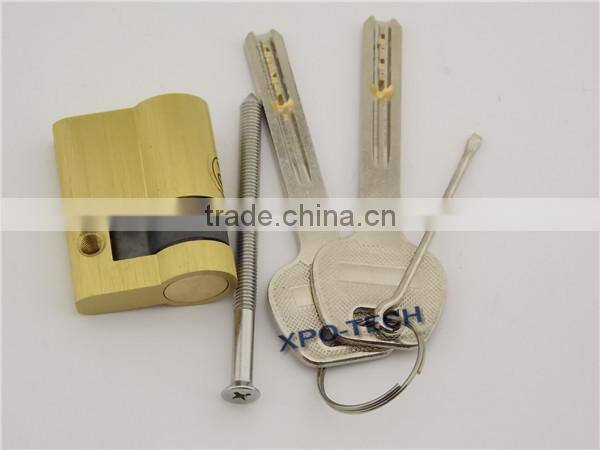

Supports four identification mode which includes - fingerprint, password, and mechanical key or

any combination. ID/IC cards optional.

RUGGED SENSOR TECHNOLOGY:
Non-coating optical fingerprint sensor and cutting edge fingerprint matching technology.

VERSATILE APPLICATION AND RELIABLE MECHANISM:
Strong stainless steel bar latch - suitable both for the main entrances as well as other doors. Keep

visitor mode in Unlock-status if it is activated.

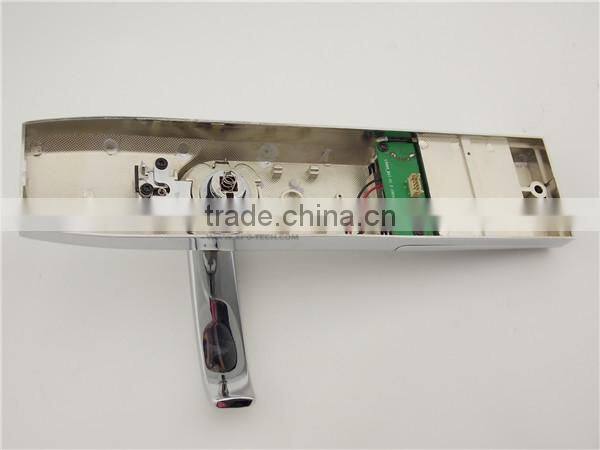

ROBUST MECHANICAL STRUCTURE:
Pure stainless steel mechanical rotating structure with nanotechnology, which makes it last for

many years under normal usage.

EASY INSTALLATION AND OPERATION:
No wiring required – Standalone installation. Data transfer to and from PC can be done using

USB flash disk. User registration and various settings can be done directly at the lock using

OLED display.

EXTENDED BATTERY LIFETIME:
Lock is powered by four standard alkaline 1.5 V batteries which can last up to 5,000 unlocking

activities. The OLED display will show the status of the batteries power level.

Model	L5000
Material	Zinc Alloy
Front Panel Colors	Black/Red/Blue
Display	OLED
Fingerprint Sensor	Optical Sensor
Resolution	500 dpi
Storage
Fingerprint templates	500
Password	100
Event capacity	30,000
ENROLLMENT & VERIFICATION
Methods	Fingerprint (1:1, 1:N), Password, Key, Card optional
FAR	< 0.0001%
FRR	< 1%
Lenght of password	6~10 digit
Card Technology
Proximity: 125KHz	optional
13.56MHz	optional
Communication Model
Method	USB flash disk
Operating Environment
Temperature	0°C ~ 45°C
Humidity	20 %~ 80%
Power input	4 x 1.5V AA Battery
Low battery warning voltage	< 4.8V
Backup Unlock Mechanism	Emergency battery & Mechanical key
Product Dimension (L x W x H)	3107235mm
