Digital Peephole Viewer With 3.5'' Color TFT Display

Digital Peephole Viewer With 3.5'' Color TFT Display photo-1
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
No Brand
Model Number:
WDV-1006
Payment & Shipping
Payment Methods:
Port of Shipment:
FOB
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Guangdong, China
Brand Name No Brand
Model Number WDV-1006
Material Other, Metal
Angle Other, 105 Degree

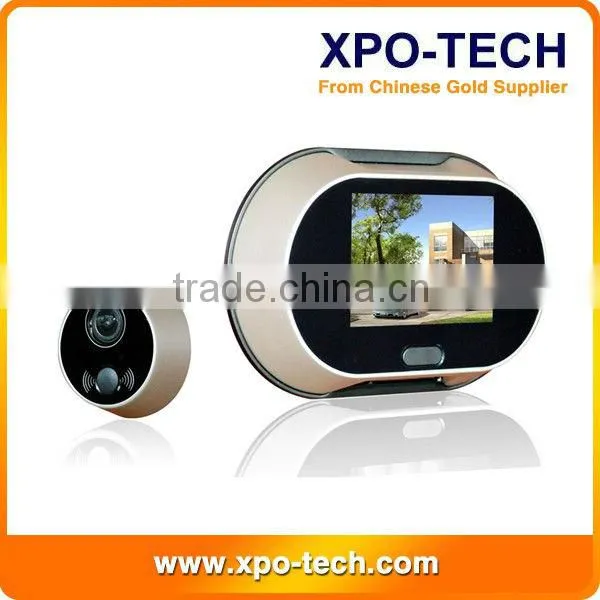

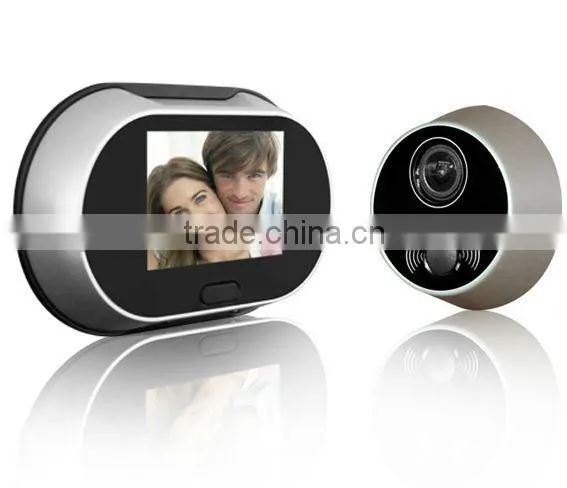

WDV-1006 3.5inch Large Screen Digital Door Viewer/ Digital Peephole Viewer with 3.5'' Color TFT Display





Operation:

1. 3.5'' color TFT display
2. Peephole barrel :12mm (large peephole barrel can be done) .

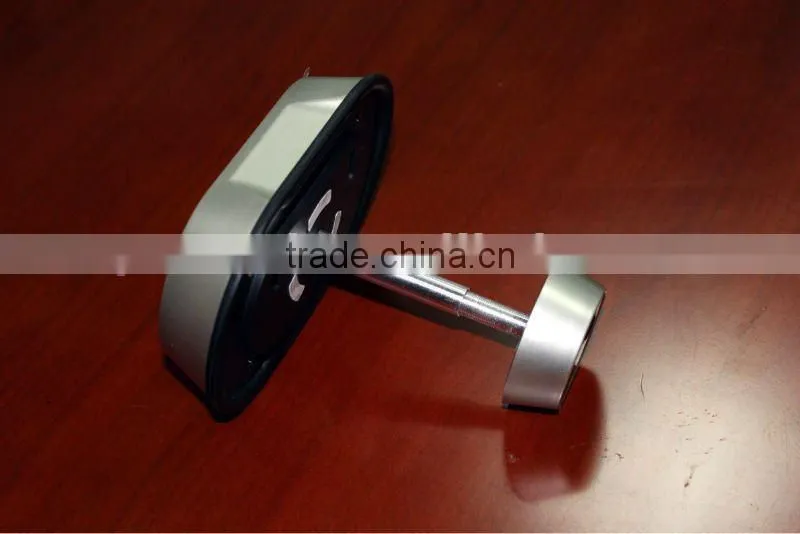

3. Fits any door 35-65mm
4. Sensor :300,000pixels

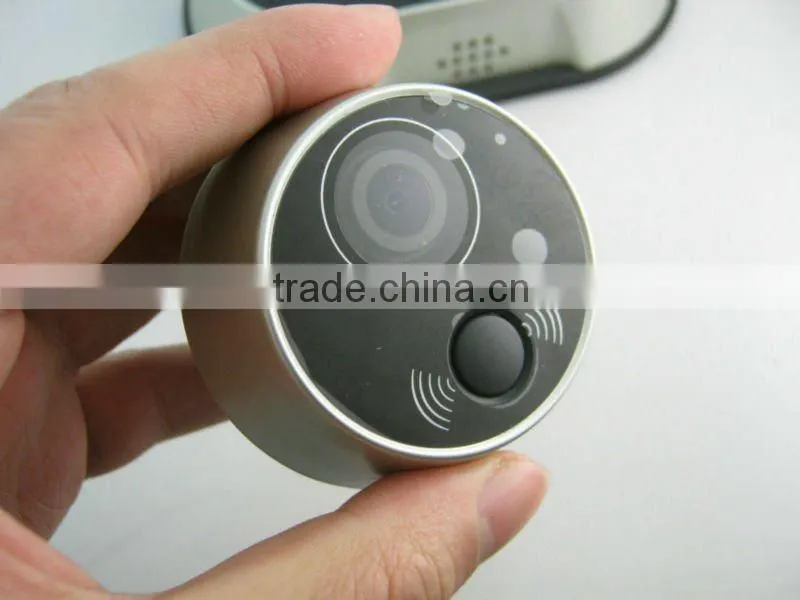

5. Press call button , red led light turn on ,door chime ring at indoor display .Press monitor button ,the display turn on .
6. Press monitor button to turn on the display to see outside anytime .
7. The display will turn on 8seconds ,then become back .
8. When adjust the melody ,the display which turn on can last 20seconds .

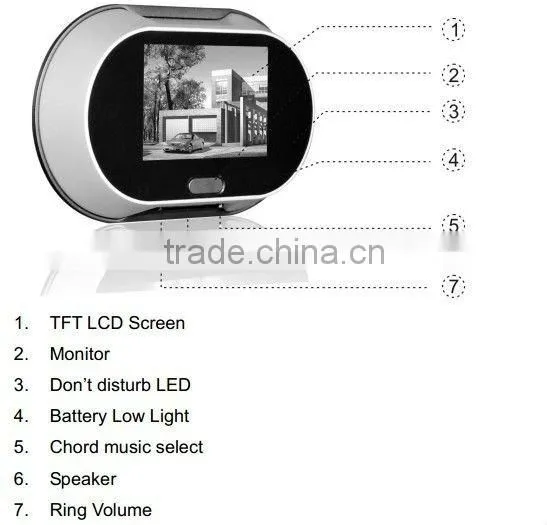

9. At the bottom of display ,left button is to adjust sound volume ,the right button is to adjust melody .
10. 16pcs melody for option
11. Can press monitor button by 1500pcs at least per 3pcs AA battery.
12. ''Don't disturb'' function : When hold monitor button of display for seconds without loose , then the screen turn off ,loose ;so the adjustment of ''don't disturb '' is finished . When in  ''don't disturb '' function ,anyone press call button ,indoor display have no door chime sound . Cancel ''don't disturb '' just hold monitor button for seconds until the screen turn on .

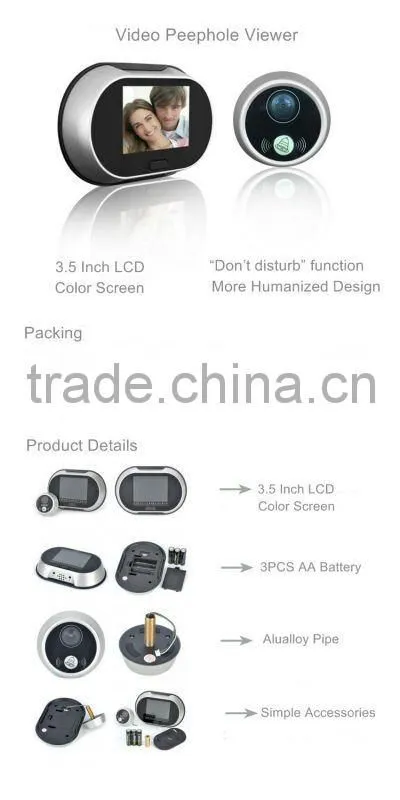

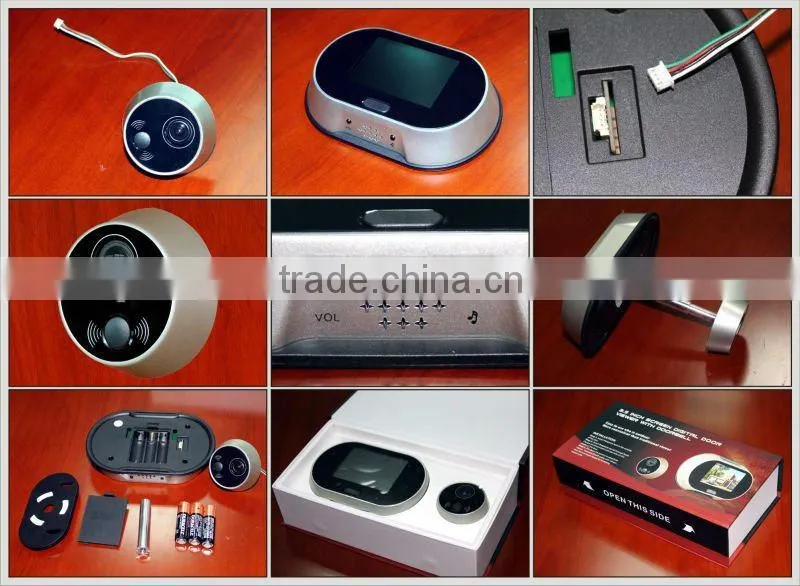

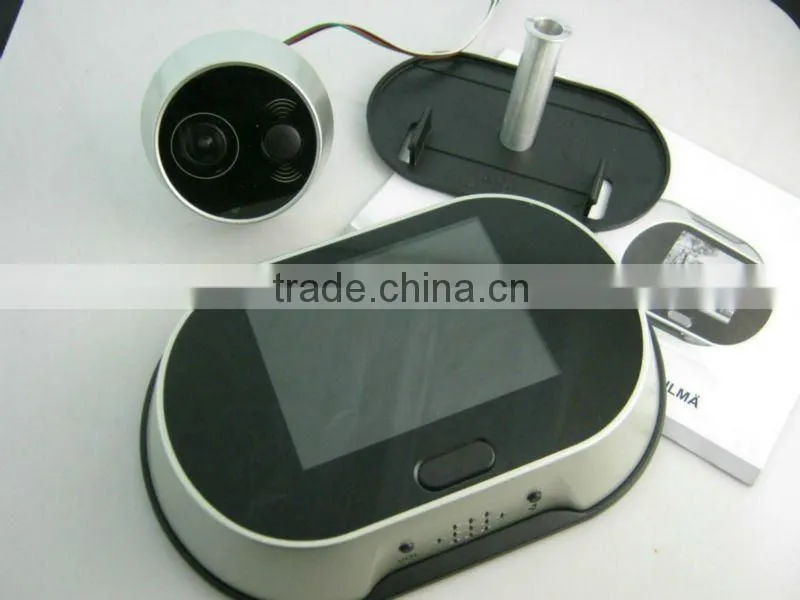

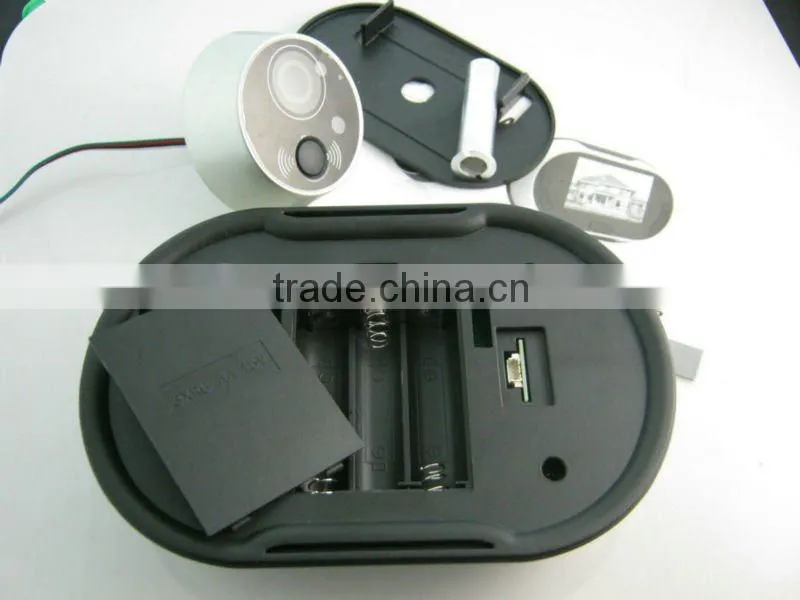

Parts:


1. Peephole viewer
2. Base Flange
3. Peephole lens
4. 11cm wire
5. Peephole Barrel
AA battery is not included .



Main Technical specifications:





Power

3pcs AA Alkaline batteries

Camera

300,000pixels

Display Screen

3.5'' color TFT display

Camera Angle

105°

Operation Temperature Range

-10°C to +55°C

Operation Humidity

10%~95%

Indoor part

138*103*25mm

Outdoor part

50mm(Dia.) *18mm





Digital Peephole Viewer with 3.5'' Color TFT DisplayDigital Peephole Viewer with 3.5'' Color TFT DisplayDigital Peephole Viewer with 3.5'' Color TFT DisplayDigital Peephole Viewer with 3.5'' Color TFT DisplayDigital Peephole Viewer with 3.5'' Color TFT DisplayDigital Peephole Viewer with 3.5'' Color TFT Display

Digital Peephole Viewer with 3.5'' Color TFT Display

Digital Peephole Viewer with 3.5'' Color TFT Display

Digital Peephole Viewer with 3.5'' Color TFT DisplayDigital Peephole Viewer with 3.5'' Color TFT DisplayDigital Peephole Viewer with 3.5'' Color TFT DisplayDigital Peephole Viewer with 3.5'' Color TFT Display

Digital Peephole Viewer with 3.5'' Color TFT DisplayDigital Peephole Viewer with 3.5'' Color TFT DisplayDigital Peephole Viewer with 3.5'' Color TFT Display

Payment:

  • If the total payment is less than 500USD, we usually accept Paypal or Western Union;
  • For big amount we accept bank transfer.



Shipment:

  • Normally we will use UPS, DHL, FEDEX or EMS express. Shipping usually takes 3-7 working days depending on the country delivered to.



Warranty:

  • Warranty for one year, maintenance forever,change within 3 months be cause of product quality.
