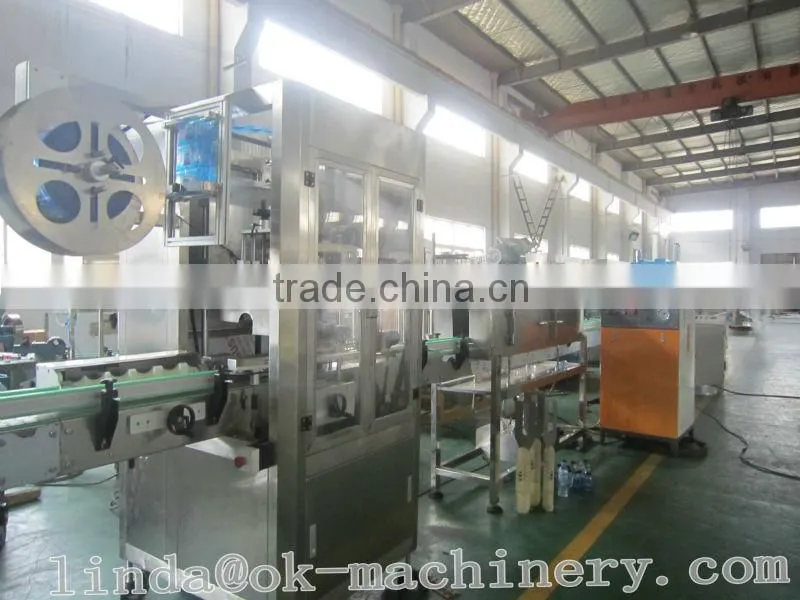

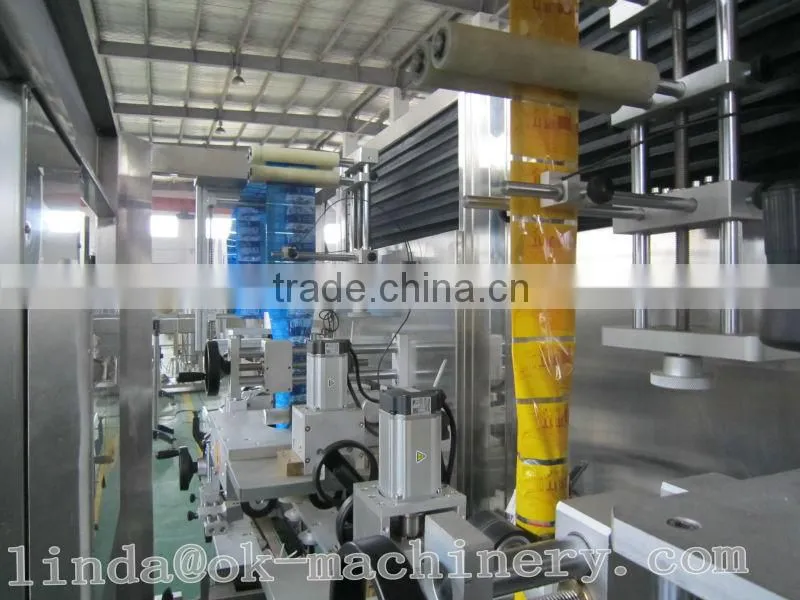

PVC label sleeve shrink machinery

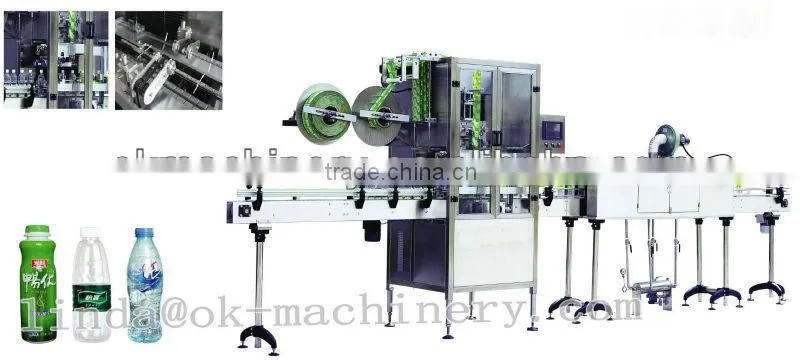

automatic sleeve labeling machinery for PET bottles
High stability of the mechanical structure.Whole framework of the overall use of stainless steel,soid and stainless steel.
A protective cover and man-machine interface operating system,the whole machine operates more human-based,more simple control and use.
The machine can be working with the whole production line and fully operated with the whole line.
Uniqe knife plate design,within the scope of our specifications,can avoid changing it.
Forced sleeve-label,very economical.
Overall ratation system,can be linked to adjustment,suitable for various label rolls' specification.
Inner diameter of the label roll:5''-10'' ,can be adjusted differently.
labeling machine-----Detailed Description:
All-cover type stainless steel host machine: The whole machine is waterproof as well as rustless.

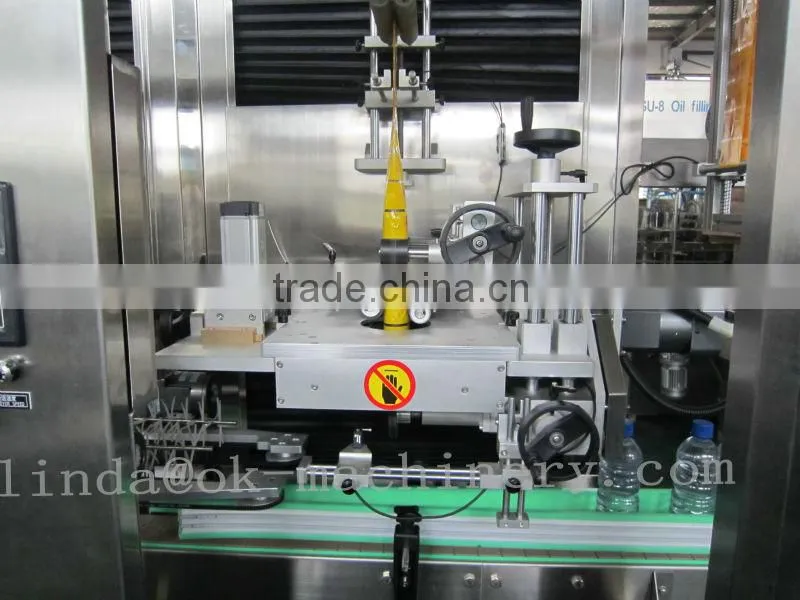

Adjustable cutter head: Uniquely cyclotron cut-off, double sided cutting edge with a long service life.
Single positioning centre guide pillar: A more stable for label delivery.
Synchronous bottle divider: A more stable transmission for bottle.
Bottom set of label brush: A more precision for casting label.
Label-controlling electric-eye shelf: Unique combination of tail and electric-eye to improve the precision for cutting off The membrane materials.
Push-button control cabinet: A more humanized operation.
Independent feeding material shelf: The position of the material shelf is optional at will.
Electrical Appliance Configuration Specification:
It adopts PLC programmable controller, imported servo motor, servo driver, frequency converter and transducer; Besides, it dopts The positioning module to ensure the casting label precise, rapid and stable.

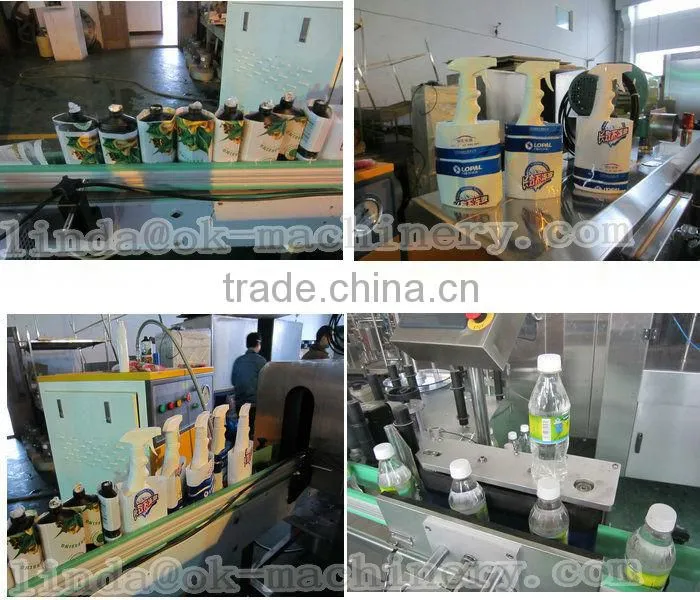

Applicable Bottle Types:
Various kinds of bottle types, for example: Round bottle, square bottle, flat bottle, curved bottle and cup-shaped, etc.
Technology parameter
| input power | 1.5kw |
| input power | 3P,380/220VAC |
| production efficiency | 150b/mim |
| size of main machine | 2100L*850W*2000H |
| suitable bottles diameter | Φ28mm-125mm |
| applicable thickness of label | 0.03-0.13mm |
| applicable internal diameter of paper tube | 5''-10'' |
| suitable label material | PVC/PET/OPS |
Technology parameter
Input Power |
3.0KW |
Input Voltage |
3phases, 380/220VAC |
Production Efficiency |
250 bottle/min |
Size of Host Machine |
2100L *850W*2000H |
Applicable Diameter of Bottle Body |
28 mm- 125mm |
Applicable Length of Label |
30 mm - 250mm |
Applicable Thickness of Label |
0.03 mm -0.13 mm |
Applicable Internal Diameter of Paper Tube |
5 -10 adjust it at will |

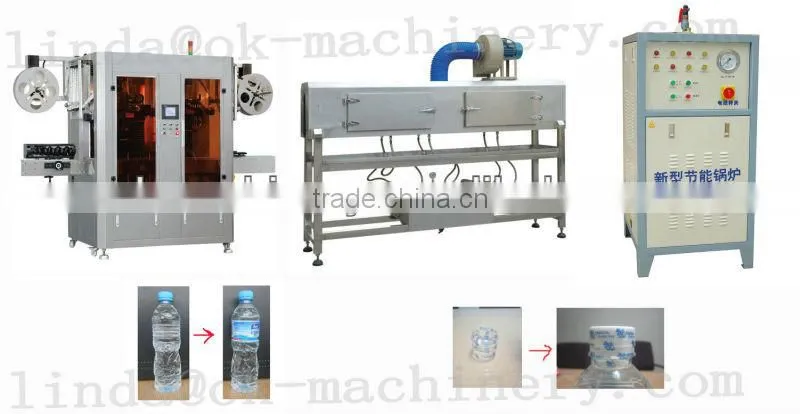

we could supply the production of auto shrink labeling machine:160b/mim-600b/min.we also supply the whole line of tea,water,juice,carbonated beverage,canned foods and etc.. if you have interests,pls contact me.

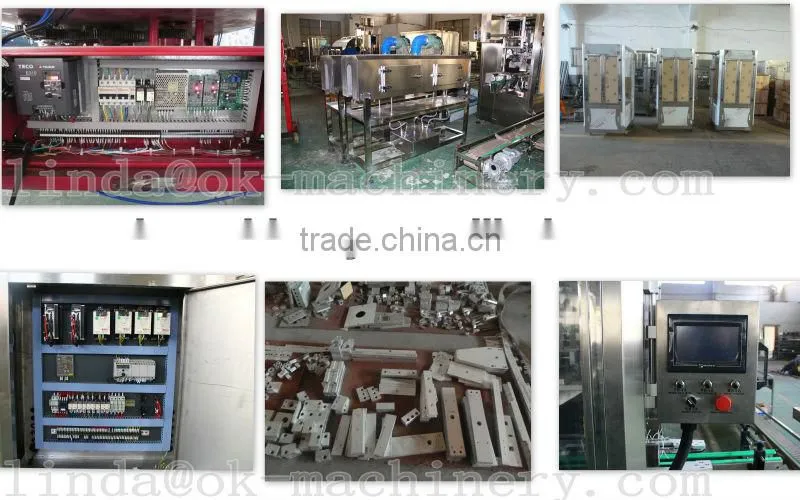

parts
parts

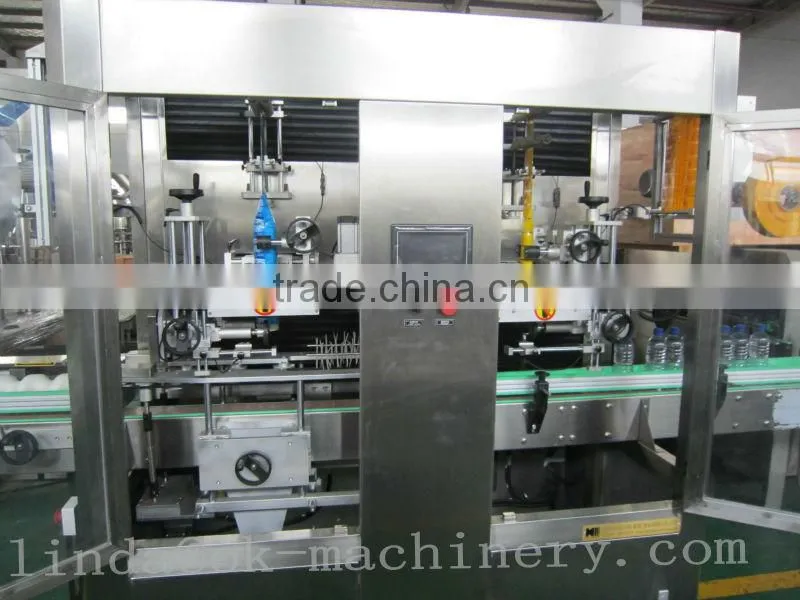

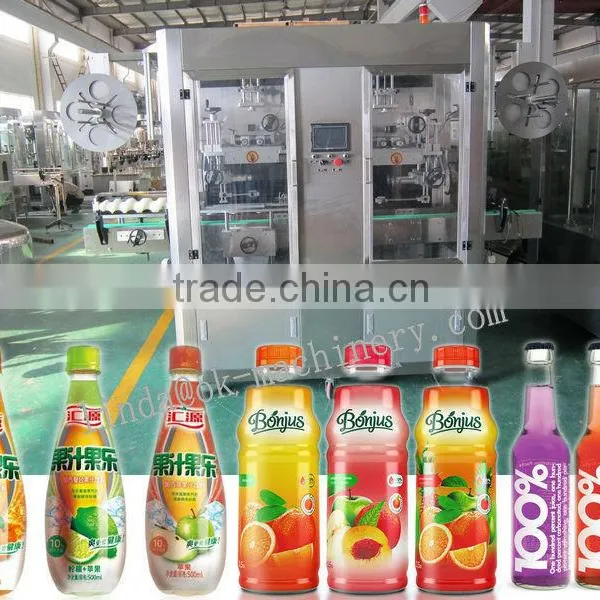

double head labeling machine

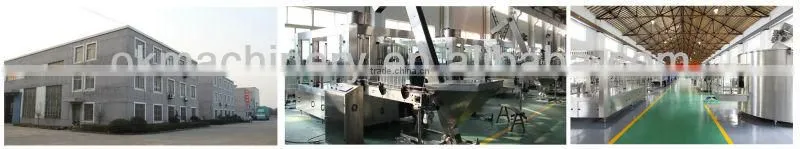

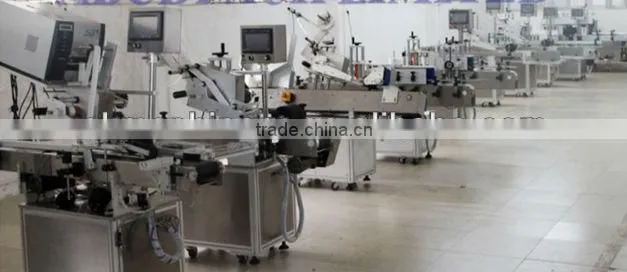

our factory photos
Customized accurate pure liquid filling machine
Main Technology
Shanghai OK machinery Co., Ltd. was established in 2001, It's a professional manufacturer of liquid food and beverage equipment.
They have good experience especially in filling and capping technology.and they provide customized service and turnkey project.
OK Filling products List :
PET bottle/glass bottle filling machine,
Glass bottle beer filling machine,
Water filling machine,
pet bottle juice machine,
bottle wine filling machine
Carbonated water filling machine,
Capping machine,
cola soda filling machine
Bottle washing machine,
Water treatment,
Oil filling machine/piston filler,
Other bottle filling machine,
Labeling machine,
wrap packing machine,
bottle unscrambler,and some drinks production line auxiliary.
Any further info for 3-IN-1 Bottle Filling Machine, please contact us.
