Touch Screen Fingerprint Scanner Door Lock

I.  Touch Screen Fingerprint Scanner Door Lock

Front panel

289(D)*74(W)*29(H) mm

Back panel

270(D)*74(W)*29(H) mm

Main material

super zinc alloy

Power

alkaline battery AA (No.5) 4*1.5V

Suitable door thickness

4 to 9cm

Methods for door openning

Fingerprint, password, mechanical key, smart card optional

Fingerprint Capacity

120 fingerprints (including 5 for admin user)

Smart Card Capcity

100 optional

Password Capacity

5 sets (the first set is management password)

Password Length

4-8 digits

Working humidity

under 90%RH

Working temperature

-20^.C to +50^.C

Fingerprint enroll time

< 0.2S

Identificication time

≤0.5

FAR

≤0.000001%

FRR

≤0.1%

Standby Current

<30μA

Working Current

110mA~180mA

Battery Lift

4500 times

II. Part Description

III. Installment Instruction

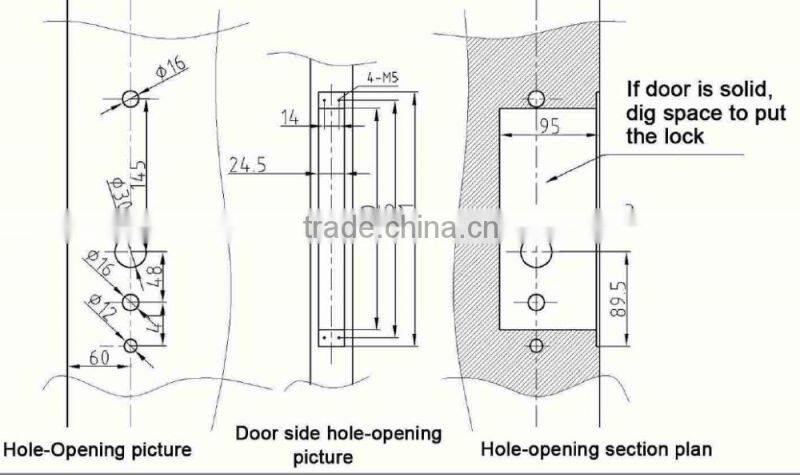

     Size of hole-openning (mm)
