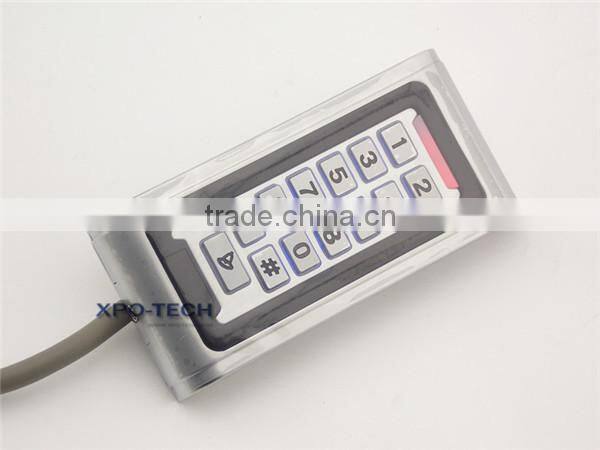

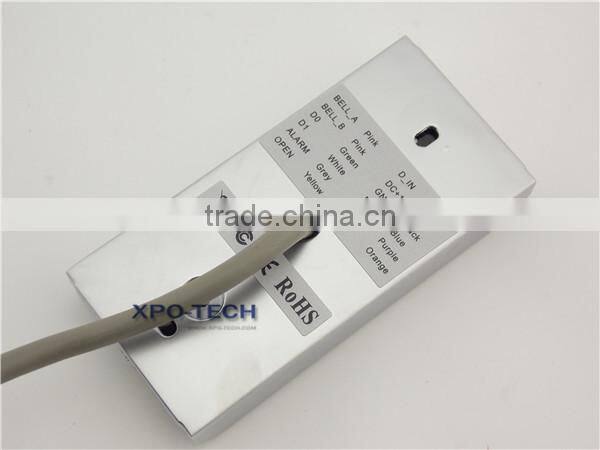

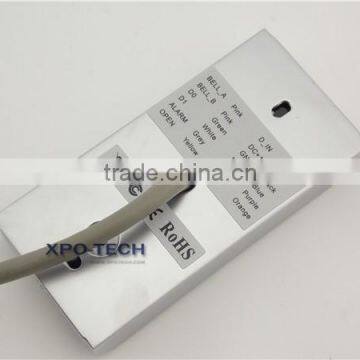

Xpo-B200 Waterproof Access Controller

Working voltage DC9V-28V
With Anti-theft alarm output for external alarm device.
With bult-in anti-theft equipments.
Support enrolling cards continuously
Waterproof degree:IP68

1Perfect disign, with backlight and fashion silver finish.
2 Waterproof design for outdoor use.
3. strong standalone function device, can be used as WG26 reader alone.
4.Capacity:2000 user’s cards,2000 codes;
5.Access ways : cards ,code,card +code.
6,Low power :static current less than 30mA.
7,Support only keypad ,
8,users can reset private passwords.
9,Search fast less than 0.1s .
10,Wiegand output Wg26 for card and Wg34 for codes.
11,use keypad to delete lost cards for safety.
12,Short-circuit protect : when relay or alarm output short circuit, it will shut up output in 100μS.

3. Technical parameters
Work Voltage: DC9-28V
Static Current:≤30mA
Reading Range:3~8cm
Capacity: 2000 users
Environment Temperature:-25°C~60°C
Environment Humidity:10%~90%
Electric lock output:≤3A
Alarm output:≤20A
Output short-circuit protection time:≤100μS
Open-door time:0 ~ 99 seconds (adjustable)
Size: 120*56*18mm

Products types
B200 EM 125KHz 5-15CM

B200 IC  13.56MHz 3-10CM
