Shandong Lvhuan Power Equipment Co,.Ltd.
WE DEVOTE OURSELVES TO GAS POWER GENERATION.
1. Company Introduction
- Since 2008
- Factory area over 40000m2
- Starff over 260 employees
- Technicians over 100 people
- website
2. Advantage
- Strong power performance
- Good economy
- High Reliability
- Good environmental pertection
- High safety
- Powerful adaptability
3.Main Parameter
Item | Data |
Cylinder diameter | 190mm |
Piston stroke | 210mm |
Piston displacement | 71.4L |
Compression ratio | 14:1 |
Fuel oil consumption(full load) | ≤ 209.4g/kw.h |
Lubricant oil consumption | ≤ 1.6 g/kw.h |
Operate mode | Long--distance electronic control Manual control |
Starting mode | Pneumatic motor, electric motor |
Aspiration mode | Direct injection, turbo charging |
Lubricant mode | Pressure and splash |
Exhaust temperature(before turbo) | ≤600℃ |
Outlet water temperature | ≤85℃ |
Lubricant oil temperature(in oil pan) | ≤90℃ |
Pressure of engine oil in main oil pass | 392-784 |
Crank shaft rotation direction (face output terminal) | Anticlockwise (face to output terminal) |
4. Specification
Engine Type
| Rated Power | Rated Speed | Fuel Oil Consumption | Oil Consumption | Overall Dimensions | Net Weight |
Z12V190BC-1 | 800kw | 1500r/min | ≤209.4g/kw.h | ≤1.6g/kw.h | 2642*1588*2027mm | 5300kg |
Z12V190BC-2 | 882kw | 1500r/min | ≤209.4g/kw.h | ≤1.6g/kw.h | 2642*1588*2027mm | 5300kg |
Z12V190BC-8 | 1000kw | 1500r/min | ≤209.4g/kw.h | ≤1.6g/kw.h | 2642*1588*2027mm | 5300kg |
Z12V190BC-9 | 882kw | 1500r/min | ≤209.4g/kw.h | ≤1.6g/kw.h | 2642*1588*2027mm | 5300kg |
Z12V190BC-10 | 900kw | 1450r/min | ≤209.4g/kw.h | ≤1.6g/kw.h | 2642*1588*2027mm | 5300kg |
Z12V190BC-11 | 882kw | 1500r/min | ≤209.4g/kw.h | ≤1.6g/kw.h | 2642*1588*2027mm | 5300kg |
Z12V190ZLC1 | 1000kw | 1450r/min | ≤209.4g/kw.h | ≤1.6g/kw.h | 2642*1588*2027mm | 5300kg |
Z12V190ZLC2 | 1000kw | 1450r/min | ≤209.4g/kw.h | ≤1.6g/kw.h | 2642*1588*2027mm | 5300kg |

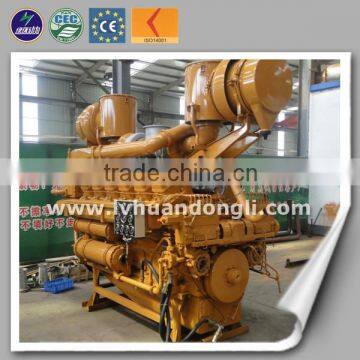

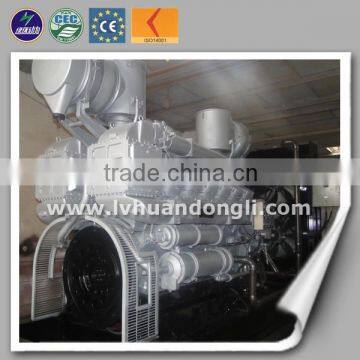

5. More pictures of our equipment
6. Visitors
8. Factory Overview
9. Certificate
10. Service
1.pre-sale service:
(1)We will send our engineer to prospect the site of power station free to charge.
(2)According to the situation of site we can supply you many drawings:like power station floor plan,engineering flow sheet of circle cooling system,genset installation,genset foundation,electrical connection and some other techincal support etc.
2.Sale service:
(1)we will send our engineer to the site to guide you the installation of generator set, subsystem and relative equipment.
(2)We will debug the generator set till it can generate power successfully.
(3)We will also supply a technical training to the operators.Orcan send your staff to our company.We can train you till you can operate the generator set.
3.After-sale service:
(1)Our every engineers are in charge of different area,we will response periodically and support you technical service free of charge,
(2)For the quality problem, we will service for you free of charge during the guarantee period.
(3)One year guarantee period and lifetime service.
(4)we solve quality problem in time when genset doesn’t work,We insure to help our clients to gain the biggest economic profit.
11. Accessories
1.Application scope of the Accessories,such as 12v190,8v190,6190,6135 and other engine types.
2.All parts were from original factories or professional factories,complete in specification,keep good quality.
12. Our factory
Sincerely welcome to visit our factory and build future cooperation relationship.
