Top grade professional mini magnetic swipe card reader module

Specifications

mini magnetic swipe card reader module
1.90mm magnetic card reader
2.Comply with ISO-7811,7812 magnetic card
3.CE,FCC,ROSH

Top grade professional mini magnetic swipe card reader module







Specification of mini magnetic swipe card reader module

Subject	Specification
Working voltage(AC)	DC2.7V-DC5.5V
Track	Track 1/2/3
Track reading width	1.5mm
Card thickness	0.2-0.84 mm
Magstripe passing speed	15 -120 cm/sec (6-50inch/sec)
Magnetic head life span	More than 800,000 passes
Error rate	Lower than 0.5%
Interface	TTL/USB /RS232
Dimension	90*22*24mm
Weight	45g



This Magnetic Card Reader for stripe card/magnetic card reader is hand swipe operated magnetic card reading  with USB interface,adopting high integrated magnetic card decoding chip.They have small electricity consumption and strong interference resistance.They comply with ISO-7811, 7812 magnetic card decoding standard completely.It can read card bi-directionally, has intelligent lights to alert if card data is read correctly.Exquisite magnetic installation structure makes card reading more stable and reliable, which is our patented technology.Reasonable product design makes products small and compact.

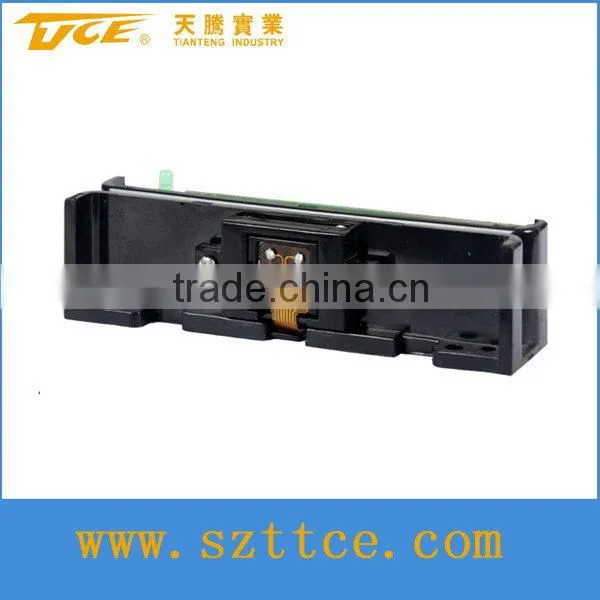

Pictures of  mini magnetic swipe card reader module







Features of mini magnetic swipe card reader module f magnetic card reader:



1. Small footprint to fit in tight places

2. Reads up to 3 tracks of information

3. Bi-directional swipe reading

4. Superior reading of high jitter, scratched, and worn Magstripe cards

5. Relibale for over 1,000,000 card swipes

6. Threaded inserts for mounting

7. Reads ISO7811, AAMVA & most other card data formats

8. Magswipe PC software makes configuration changes easy



Descriptionof magnetic card reader:



Size: 90x 22 x 24 mm( L x W x H) Color: black Swipe speeds from 3 to 60 inches per second Interfaces: USB Housing: ABS Operating Temperature: -20 to +60 Relative Humidity: 90% non-condensing Works with: Windows 98/2000/XP/Vista/7 Android or many other USB capable operating systems



APPLICATIONS of mini magnetic swipe card reader module :

(1)POS terminal



(2)ID verification/Authentication



(3)Member management system (4)Inquiry system



1. Packaging :

Small box. 100pcs/Carton. 7.5KG/carton. Packing for 90mm magnetic card reader.



2. Shipping

• Air, Sea, Express (DHL, FedEx, UPS, EMS, TNT and so on)
• EXPRESS: around 3-7 working days to arrive
• INTERNATIONAL AIR MAIL: usually around 2-4 days to arrive, will also depend on which destination port
• By sea: depend on which destination port



3.Payment:

• T/T in advance
• Western Union
• Escrow
• L/C



• 12 months of shipment normally. Some designated models can have as long as 24 months warranty.

•  Each customer with one of our engineer follow up ,offer 24 hours online service .



RMA Procedure:



If you suspect your product is not functioning properly, please contact us to help determine whether your product is defective within warranty. Once determined defective you will receive an RMA authorization number for repair or replacement. Customers will return the defective product to us. Upon receipt of defective products, warranty verification will include visual inspection and testing for normal wear and tear, alteration, and functional compliance of the TTEC product. Defective products will be repaired or replaced and shipped via express within 30 days or best effort. Customers will not be charged for warranty repairs. However, if a returned product does not meet warranty verification then testing, repair, and/or shipping fees may apply.



Dead-on-Arrival (DOA):



Any product found to be defective within 30 days of shipment shall be deemed Dead on Arrival (DOA). DOA products will be advance replaced and shipped via express.
