Coal Gas Generator Set for Steel Plant and Coke-oven Plant

Company Introduction

Shandong Lvhuan Power Equipment Co., Ltd is a comprehensive high-tech company which is engaged in the researching, manufacturing and after-sale service of the new energy-saving generator products.

 Our main products are gas generator set, diesel engine and diesel generator set. It forms a series of products, including: Biogas gen-set, Coal mine gen-set, Natural gas gen-set, Biomass gen-set, Coke oven gas gen-set, Gas gen-set, Diesel gen-set and the entire building machine. These products cover almost all the range of power, and their power performance, economical efficiency and reliability are all in the advanced level of this field.

We have attained ISO9001, ISO14001 and CE certifications, and carries them out in every production procedure. With the strong capacity of researching and designing, we can not only provide you with quality products , but also your good partnership in the general Power Generation Program, including: consulting service, project designing, construction, installation ,adjustments and facilities maintenance

Parameter of Coal Gas Generator Set

Requirements for Coal Gas Generator Set

Within 1m from pressure regulating valve of gas intake

1. Gas temperature ≤40°c

2. Pressure 3 - 10kpa, pressure changing rate ≤1kpa/min

3.  H2S≤200mg/Nm3

4.  NH3 ≤20mg/Nm3

5. Tar Content  ≤20mg/Nm3

6. Impurity particle size ≤ 5μm, impurity content ≤30mg/ Nm3

7. Moisture content ≤40g/Nm3

8. Heat value≥4.2MJ/Nm3

Wide Scope of Usage


There are 3 types of coal gas generators: coke oven gas generator, coal producer gas generator and semi-coke gas generator.

Coal gas has many different types, such as coke oven gas, coal producers gas, semi-coke gas, water coal gas, oil coal gas, blast-furnace gas and cracking coal gas, etc.

Our coal gas generator sets can be used for steel plant and coke-oven plant

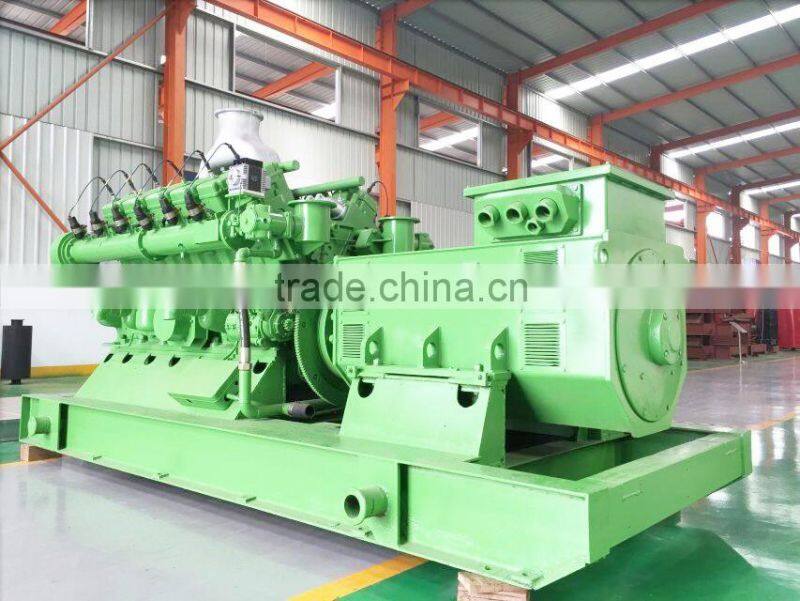

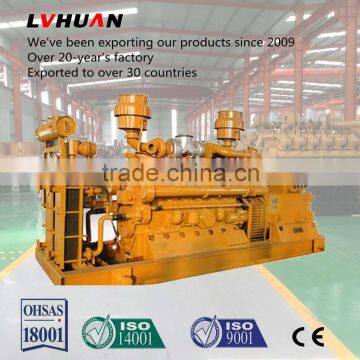

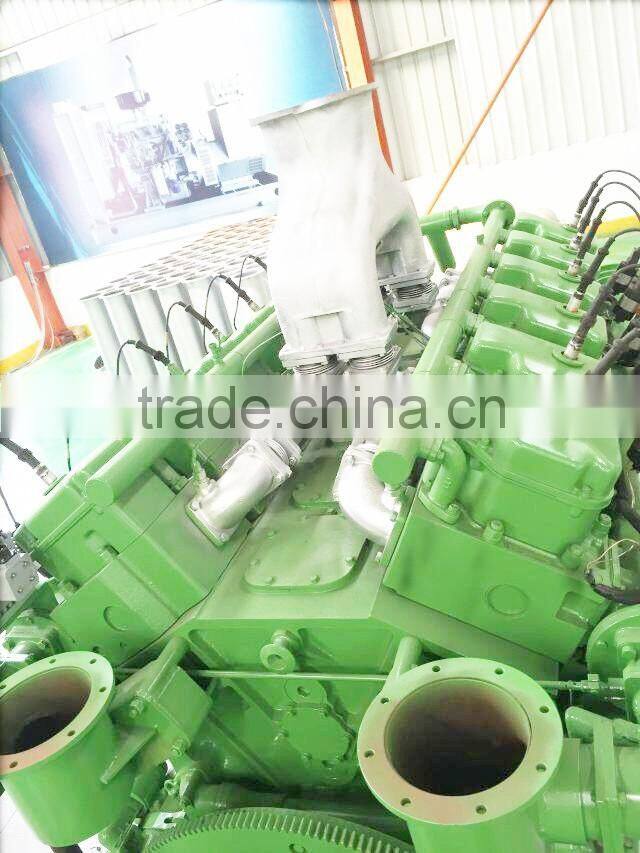

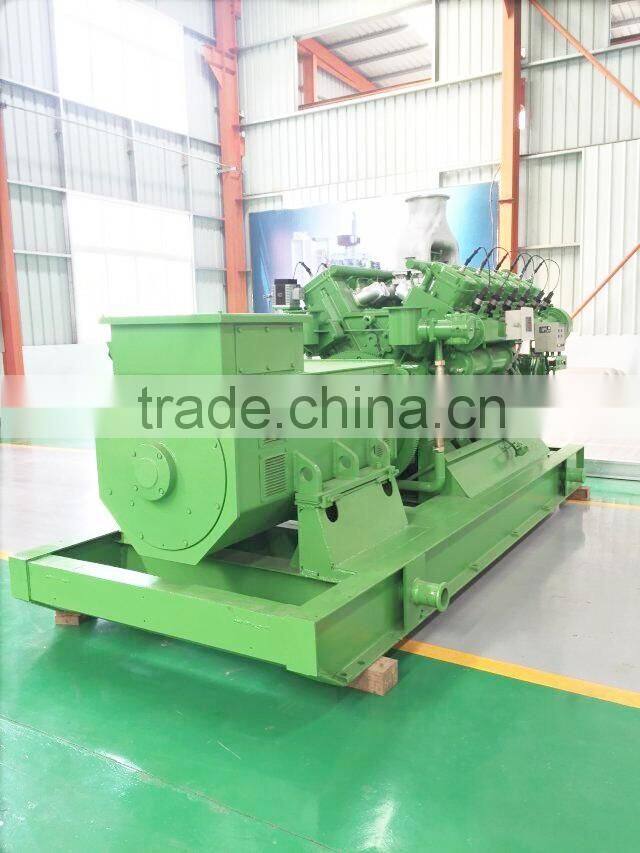

Actual Photos of Coal Gas Generator Set

Certificates

Raw Material for Coal Gas Generator Set

Packaging


Shipping
