AC 100V-240V Converter Adapter DC 15V 2A Power Supply US Plug 2000mA,DC Tip:5.5*2.1/5.5*2.5/4.0*1.7mm

AC 100V-240V Converter Adapter DC 15V 2A Power Supply US Plug 2000mA,DC Tip:5.5*2.1/5.5*2.5/4.0*1.7mm thumbnail-1
AC 100V-240V Converter Adapter DC 15V 2A Power Supply US Plug 2000mA,DC Tip:5.5*2.1/5.5*2.5/4.0*1.7mm thumbnail-2
AC 100V-240V Converter Adapter DC 15V 2A Power Supply US Plug 2000mA,DC Tip:5.5*2.1/5.5*2.5/4.0*1.7mm thumbnail-3
AC 100V-240V Converter Adapter DC 15V 2A Power Supply US Plug 2000mA,DC Tip:5.5*2.1/5.5*2.5/4.0*1.7mm photo-1
AC 100V-240V Converter Adapter DC 15V 2A Power Supply US Plug 2000mA,DC Tip:5.5*2.1/5.5*2.5/4.0*1.7mm photo-2
AC 100V-240V Converter Adapter DC 15V 2A Power Supply US Plug 2000mA,DC Tip:5.5*2.1/5.5*2.5/4.0*1.7mm photo-3
US$ 4.26 - 4.75 MOQ: 500 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
JUKE
Model Number:
JKXXXYYY-S06
Contact Supplier Request Quote Chat Now
Shenzhen Juke Electronic Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
SZ or HK
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name JUKE
Model Number JKXXXYYY-S06
Output Type DC
Connection Plug In
Product Description

AC 100V-240V Converter Adapter DC 15V 2A Power Supply US Plug 2000mA,DC tip:5.5*2.1/5.5*2.5/4.0*1.7mm

* 36Watt Wall Mount & Desk top Power Adapter

* Universal Input 90 to 264VAC

* RoHS Compliant

*Meet  ErP / Energy Star / MPES Level : V



Product Specification

Sym  Parameter  Test Conditions  Min  Typ  Max  Unit
  Operate Voltage Range    100    240  VAC
fin  Input Frequency    47    63  Hz
Po  Output Power Range  Vin=90 to 264VAC  0    36 W
Vo  Output Voltage Range    4   48 V
Io  Output Current Range    0    6 A
Iil  Input Current(Low Line)  Io=Full Load,Vin=115VAC      0.6 A
Iih  Input Current(High Line)  Io=Full Load,Vin=230VAC      0.8 A
Irl  Low Line Inrush Current  Io=Full Load,25℃, Cool start,Vin=115VAC      50 A
Irh  High Line Inrush Current  Io=Full Load,25℃, Cool start,Vin=230VAC      100 A
Eff  Efficiency  Io=Full Load ,Vin=230VAC  83.64 87   %
REG-i  Line Regulation  Io=Full Load    1  2  %
REG-o  Load Regulation  Vin=230VAC    3  5  %
OCP  Over Current Protection  Nil But,Output protected to short circuit conditions   %
Ttr  Time of Transient Response  Io=Full Load to Half Load,Vin=100VAC  2     S
Thold  Hold-Up Time  Io=Full Load,Vin=100VAC  5  10  35 mS
Ts  Start Up Time  Io=Full Load,Vin=100VAC  5  10  35 mS
Vp-p  Ripple&Noise (Peak to Peak)  Full Load,Vin=90VAC    1  2  %
Ilk  Safety Ground Leakage Current  Io=Full Load,Vin=240VAC      0.25  mA
Pno  No-Load Power Consumption  No load, Vin=240VAC    0.2  0.3  w
TC  Temperature Coefficient  All output



Environmental:

Sym  Parameter  Test Conditions  Min  Typ  Max  Unit
Toper  Operating Temperature    0  25  40   ℃
Tstg  Storage Temperature    -20    50   ℃
Ho  Operating Humidity    15    90  %
Hr  Storage Humidity    10    95  %
MTBF  Operating Temperature at 25℃, Calculated per MIL-HDBK-217F   50000   Hrs



Output Voltage And Current Rating Chart (Single Output):

Model Number.               Output Voltage           Max.Output Current           Total Regulation         Max.Output Watts
JKXXXYYY-S06                           4-9VDC                           0.01-6A                                    5%                                     36W
JKXXXYYY-S06                         9.1-15VDC                      0.01-4A                                     5%                                     36W
JKXXXYYY-S06                         15.1-24VDC                   0.01-1.5A                                  5%                                     36W
JKXXXYYY-S06                         24-48VDC                     0.01-0.75A                                 5%                                     36W

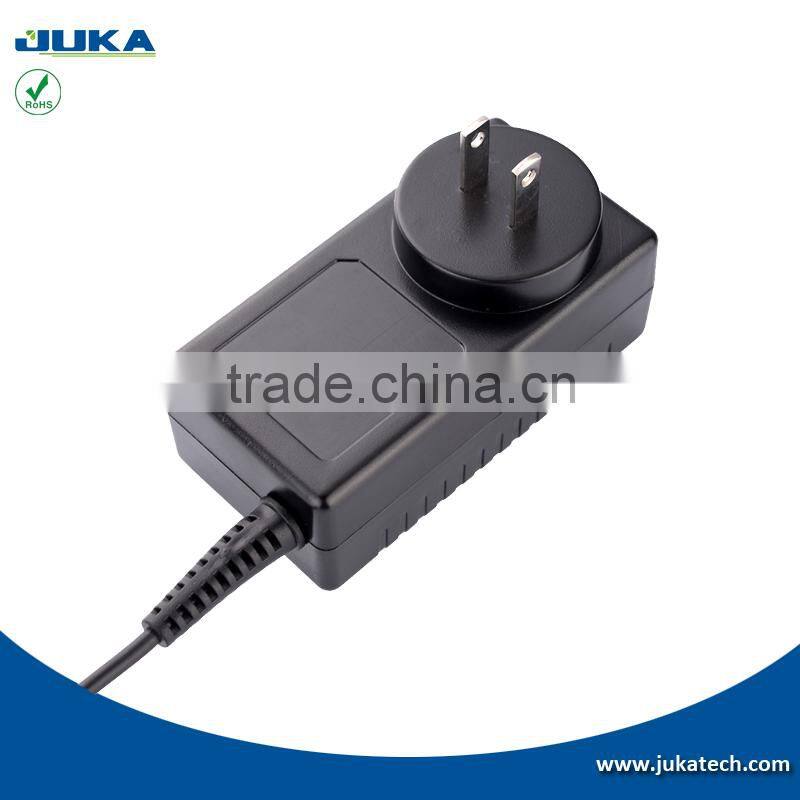

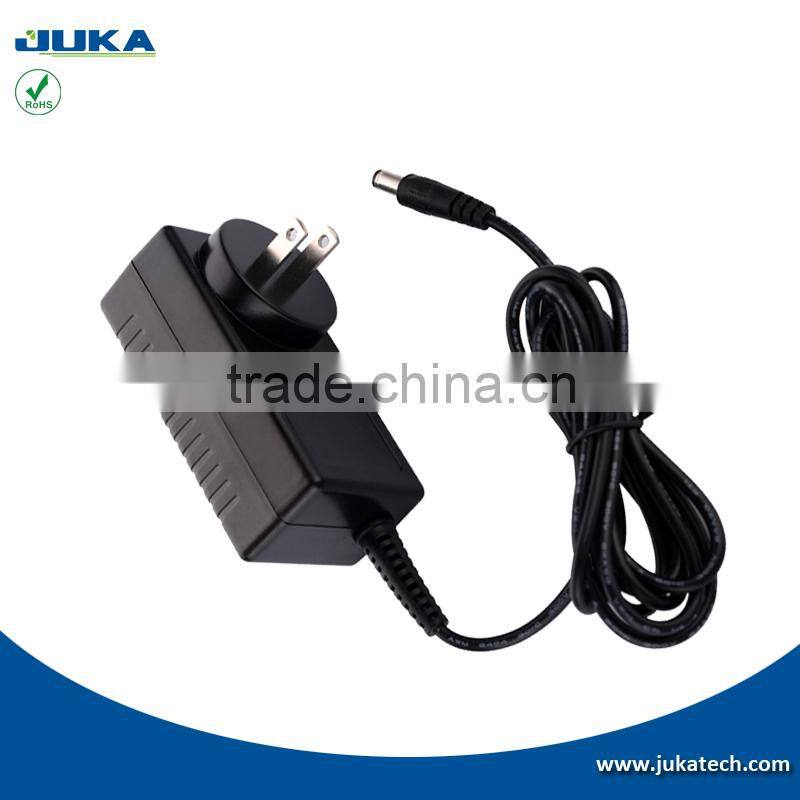

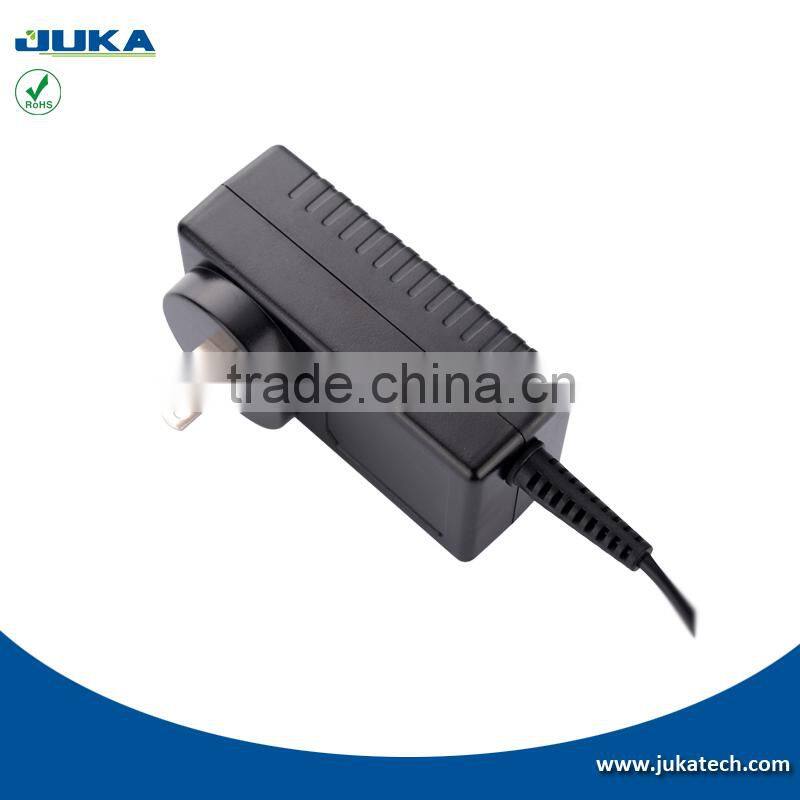

The image of 15v 2a ac adapter

AC 100V-240V Converter Adapter DC 15V 2A Power Supply US Plug 2000mA,DC tip:5.5*2.1/5.5*2.5/4.0*1.7mmAC 100V-240V Converter Adapter DC 15V 2A Power Supply US Plug 2000mA,DC tip:5.5*2.1/5.5*2.5/4.0*1.7mmAC 100V-240V Converter Adapter DC 15V 2A Power Supply US Plug 2000mA,DC tip:5.5*2.1/5.5*2.5/4.0*1.7mm
