12V5A Switching Power Adapter

ALL CATEGORIES

Model Number. Output Voltage Max.Output Current Total Regulation Max.Output Watts

JKXXXYYY-S09 4-9VDC 0.01-8A 5% 60W

JKXXXYYY-S09 9.1-15VDC 0.01-6.5A 5% 60W

JKXXXYYY-S09 15.1-24VDC 0.01-2.5A 5% 60W

JKXXXYYY-S09 24.1-48VDC 0.01-1.25A 5% 60W

Name: 12V5A Switching Power Adapter
Brand: JUKE
SKU: 118735601
Availability: InStock

Shenzhen Juke Electronic Co., Ltd.

US$ 2 - 6.56 MOQ: 100 Pieces

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

JUKE

Model Number:

JKXXXYYY-S09

Payment & Shipping

Payment Methods:

Port of Shipment:

ShenZhen or HK

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name JUKE

Model Number JKXXXYYY-S09

Output Power 1 - 50W

Output Type Single

Input Voltage Other, 100-240V

Output Voltage 12V

Output Frequency 50-60Hz

Output Current 5A

Product Description

12V5A switching power adapter

* 60Watt Wall Mount & Desk top Power Adapter

* Universal Input 90 to 264VAC

* RoHS Compliant

* Meet /ErP / Energy Star / MPES Level : V

* Meet EN55013 EN55022 FCC CLASS B

Product Specification

Sym	Parameter	Test Conditions	Min	Typ	Max	Unit
	Operate Voltage Range		100		240	VAC
fin	Input Frequency		47		63	Hz
Po	Output Power Range	Vin=90 to 264VAC	0		60	W
Vo	Output Voltage Range		4		48	V
Io	Output Current Range		0		8	A
Iil	Input Current(Low Line)	Io=Full Load,Vin=115VAC			0.8	A
Iih	Input Current(High Line)	Io=Full Load,Vin=230VAC			1	A
Irl	Low Line Inrush Current	Io=Full Load,25℃, Cool start,Vin=115VAC			60	A
Irh	High Line Inrush Current	Io=Full Load,25℃, Cool start,Vin=230VAC			120	A
Eff	Efficiency	Io=Full Load ,Vin=230VAC	87	89		%
REG-i	Line Regulation	Io=Full Load		1	2	%
REG-o	Load Regulation	Vin=230VAC		3	5	%
OCP	Over Current Protection	Nil But,Output protected to short circuit conditions				%
Ttr	Time of Transient Response	Io=Full Load to Half Load,Vin=100VAC	2			S
Thold	Hold-Up Time	Io=Full Load,Vin=100VAC	5	10	35	mS
Ts	Start Up Time	Io=Full Load,Vin=100VAC	5	10	35	mS
Vp-p	Ripple&Noise (Peak to Peak)	Full Load,Vin=90VAC		1	2	%
Ilk	Safety Ground Leakage Current	Io=Full Load,Vin=240VAC			0.25	mA
Pno	No-Load Power Consumption	No load, Vin=240VAC		0.2	0.3	w
TC	Temperature Coefficient	All output

Enviromental

Sym	Parameter	Test Conditions	Min	Typ	Max	Unit
Toper	Operating Temperature		0	25	40	℃
Tstg	Storage Temperature		-20		50	℃
Ho	Operating Humidity		15		90	%
Hr	Storage Humidity		10		95	%
MTBF	Operating Temperature at 25℃, Calculated per MIL-HDBK-217F			50000		Hrs

Output Voltage And Current Rating Chart (Single Output):

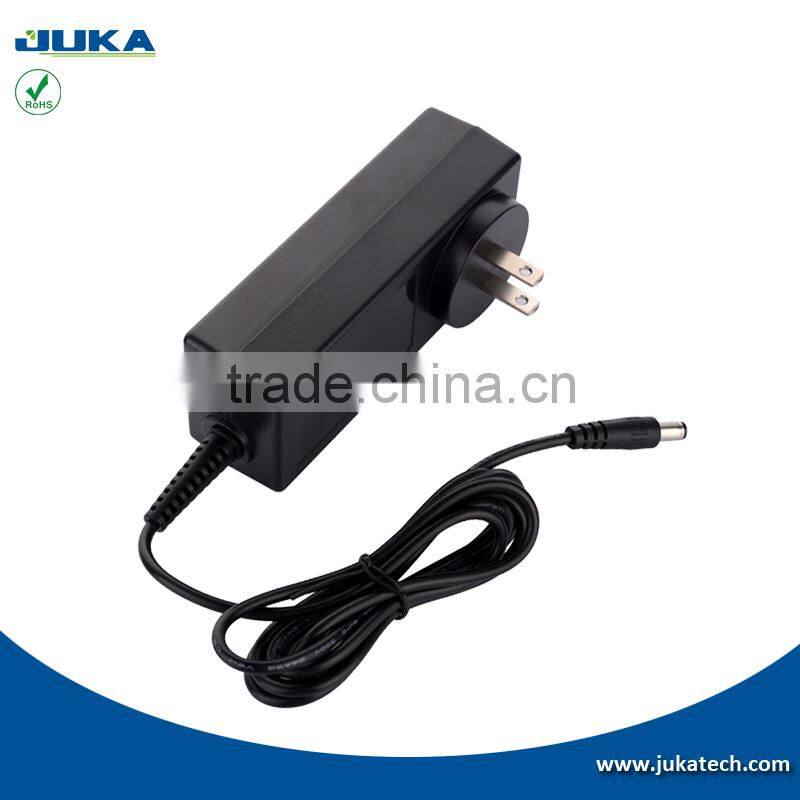

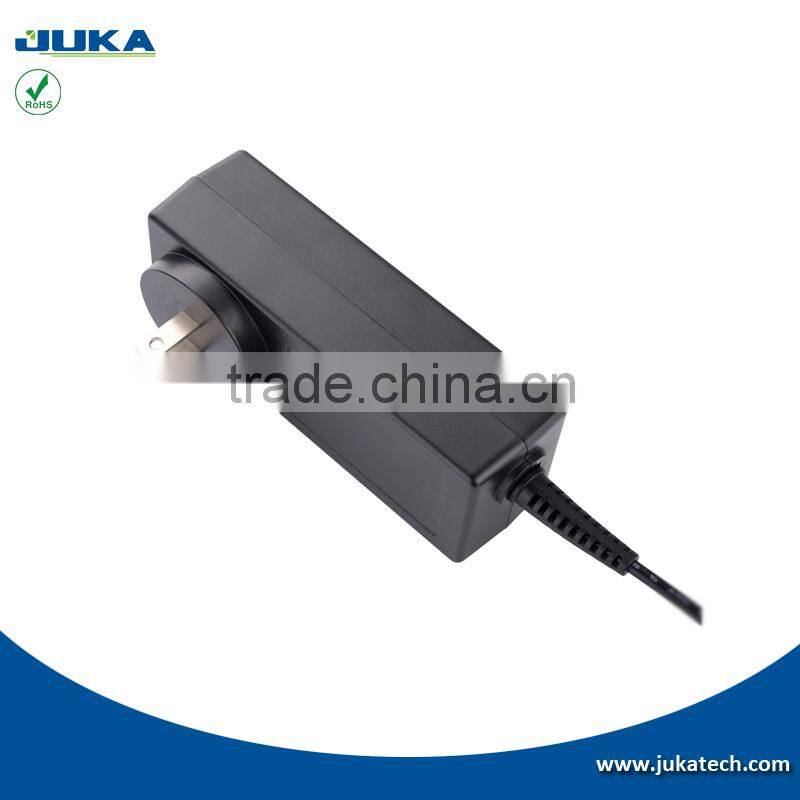

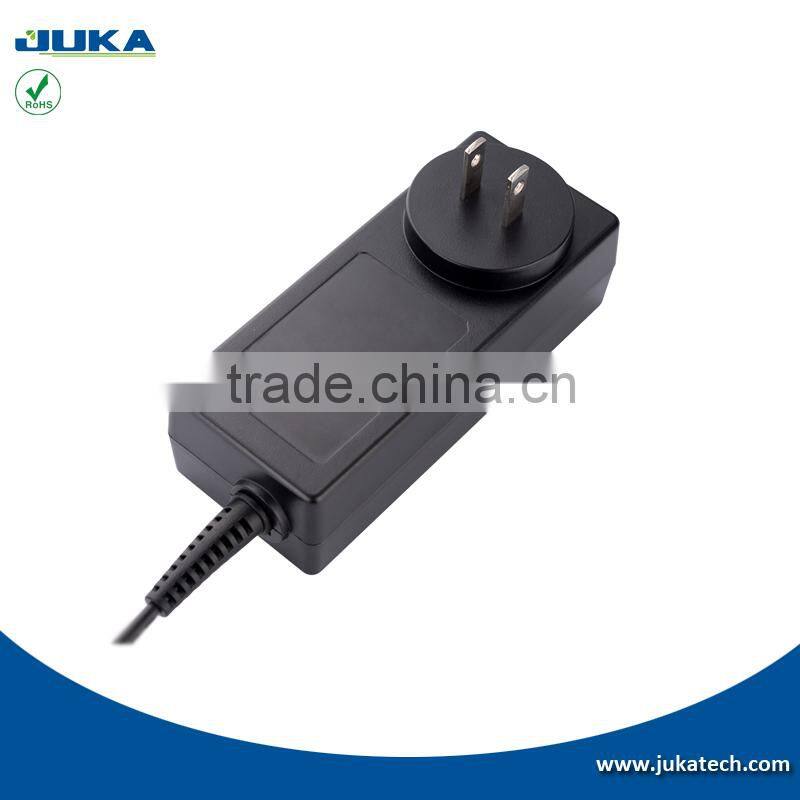

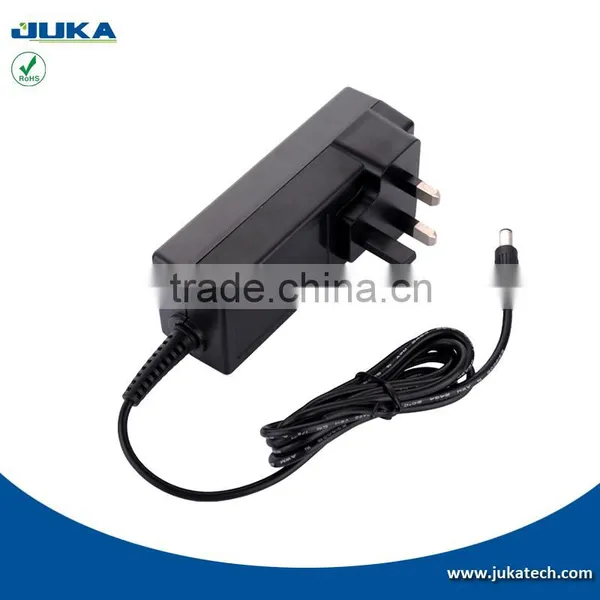

The image of 12V 5A switching power adapter

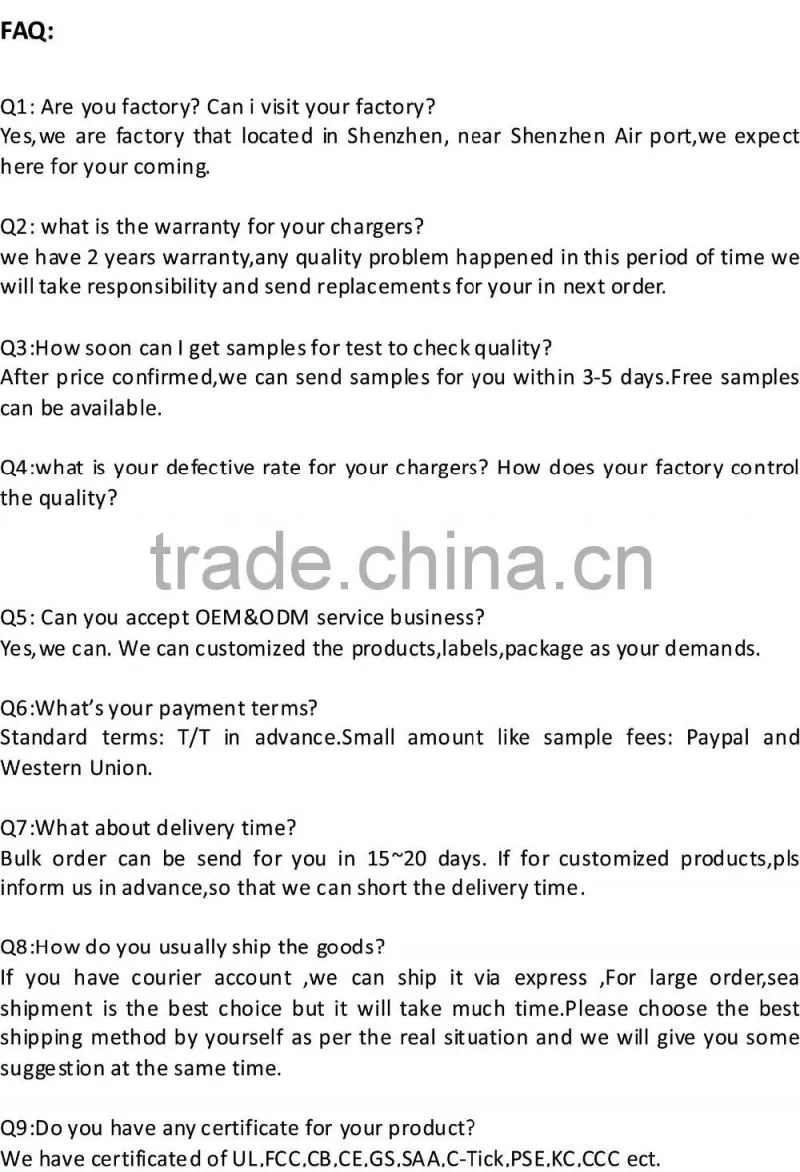

FAQ
