Home > Products > Switching power adapter > 24v 800mA UL listed ac dc power adapter/swtiching power adapter with dc jack 5.5*2.5mm / 5.5*2.1mm etc

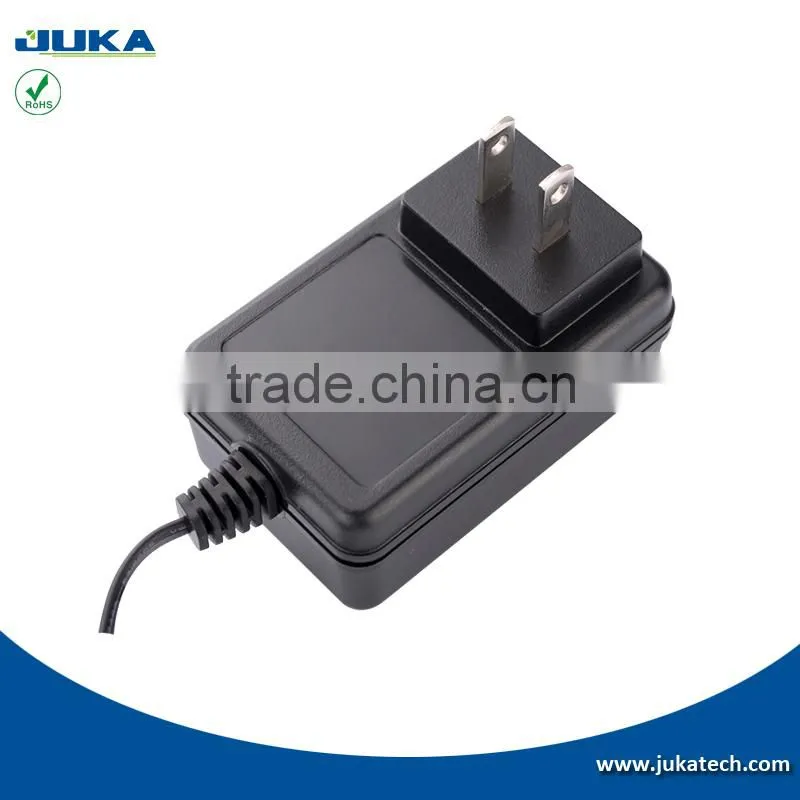

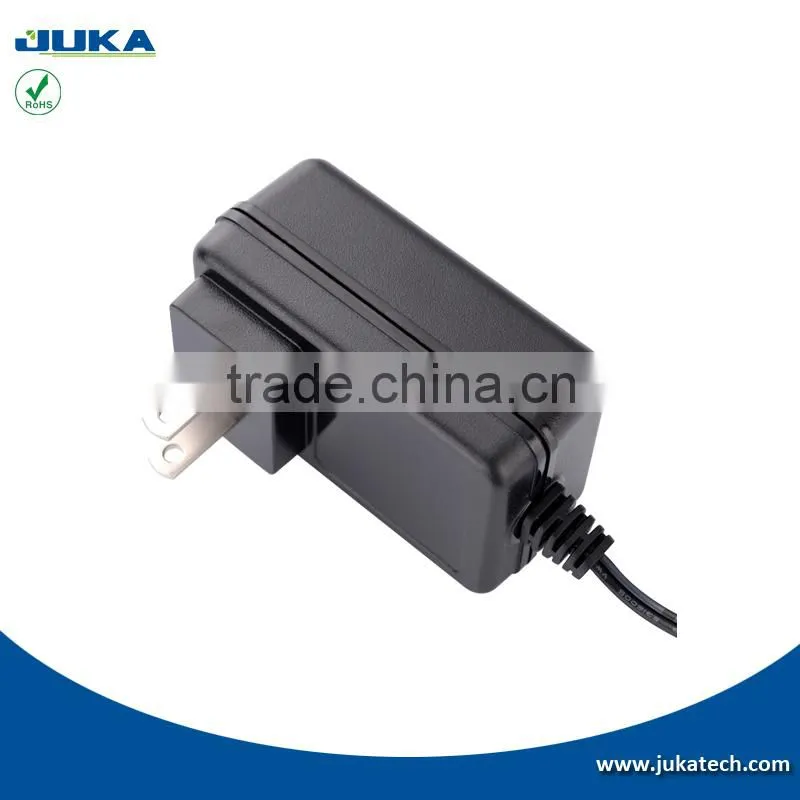

24v 800mA UL listed ac dc power adapter/swtiching power adapter with dc jack 5.5*2.5mm / 5.5*2.1mm etc
- 1000000 Piece / Pieces per Month
- ShenZhen or HK
- T/T Credit Card
Product Details
Place of Origin: | Guangdong, China | Brand Name: | JUKE | Model Number: | JKXXXYYY-S19 |
Output Type: | DC | Connection: | Plug In |
Product Description
24v 800mA UL listed ac dc power adapter/swtiching power adapter with dc jack:5.5*2.5mm / 5.5*2.1mm etc
*Universal Input 90 to 264VAC
*RoHS Compliant
*Meet ErP / Energy Star / MPES Lelve : V
Product Name: 24v 800mA UL listed ac dc power adapter/swtiching power adapter | ||
INPUT | Input voltage (AC) | 90-264V |
Frequency Range | 47 ~ 63Hz | |
AC input current | 0.8A | |
Leakage Current | Io=Full Load,Vin=240VAC/50Hz 0.25mA | |
No load power consumption | No load, Vin=240VAC 0.3W | |
OUTPUT | Output Voltage ( DC ) | 24V |
Output Current ( Rated ) | 800mA | |
Power | 24W | |
Ripple & Noises (max.) | 2% | |
Voltage Tolerance | ±5% | |
Line Regulation | 1% | |
Load Regulation | 5% | |
Set-up, rise, hold-up time | Io=Full Load,Vin=100VAC 35ms | |
DC Connector | 2.5*5.5/2.1*5.5/1.35*3.5/1.7*4.0 etc | |
PROTECTION | Over Load Protection, Over Voltage Protection, Short Circuit Protection | |
Efficiency | 80.24% | |
ENVIRONMENT | Working Temp. | 0-40 ℃ |
Working Humidity | 15-90℃ | |
Storage Temp. | -20-50℃ | |
Storage Humidity | 10-95℃ | |
Vibration |
| |
OTHERS | Hi-pot Voltage | 3000Vac / 5mA / 60S |
MTBF | 50000 Hrs | |
WARRANTY | 2 Years | |
CERT. | UL,FCC approvals | |
Application:CCTV,HDDBOX,DVR,LED-TV,MINI Sound box,Vacuum cleaner ect | ||
Payment Terms: T/T, Western Union, Paypal payment will be allowed For Sample order, we request 100% payment before shipping For Trail/bulk order, we request 50% deposit, and the balance 50% should be paid before delivery | ||
Lead time: Sample order within 1-10pcs,it will be sent out 3-7 days For trial/bulk order,it will be sent out within 20-25 days | ||
Shipping method You can choose express like UPS,DHL,Fedex or TNT,Air and sea shipment. We’d like to give you some information on how to choose the shipping to save cost 1) If the weight is below 80KG/per order,we recommend you to choose the express.It’s door to door service,better than air shipment because you don’t need to pick up the goods by yourself while it arrived at your area. 2) If the weight is excess 80KGS,you can choose air shipment 3) If the weight is excess 100KGS,sea shipment is the best choice. Above suggestion is based on your time is enough when you confirm the order with our sales |
