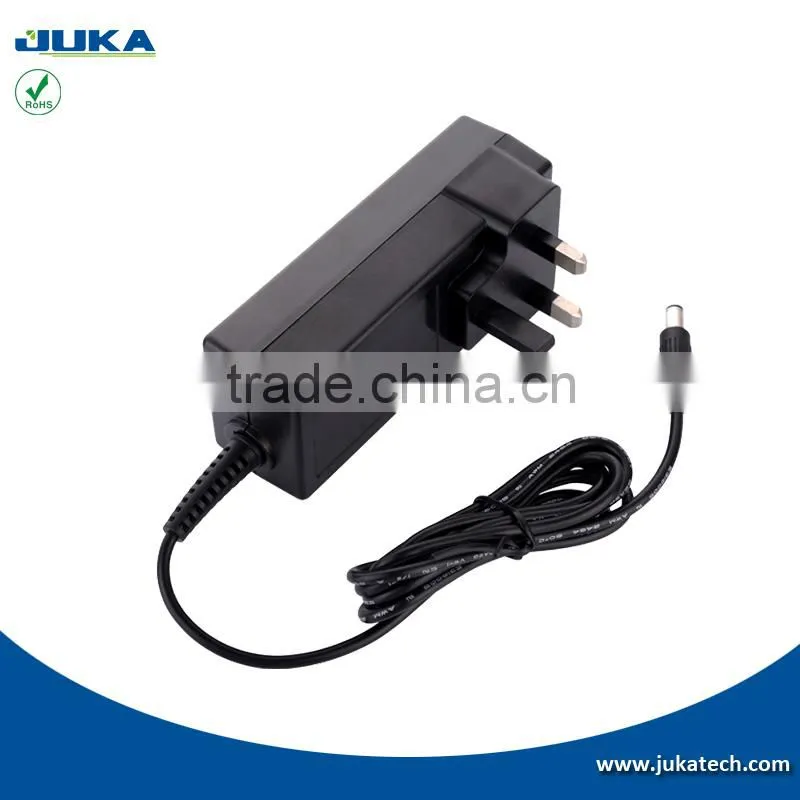

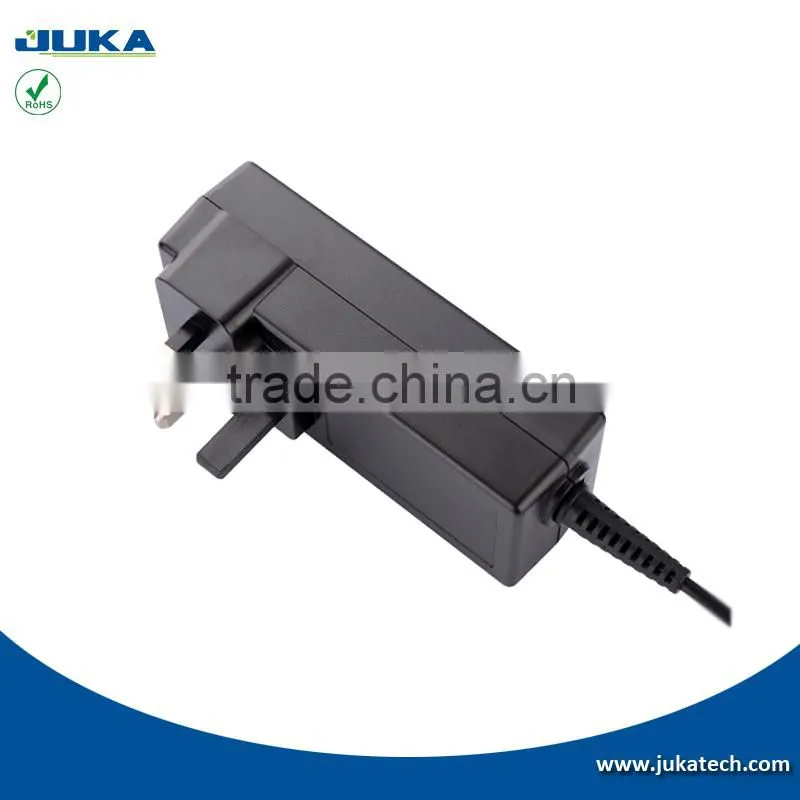

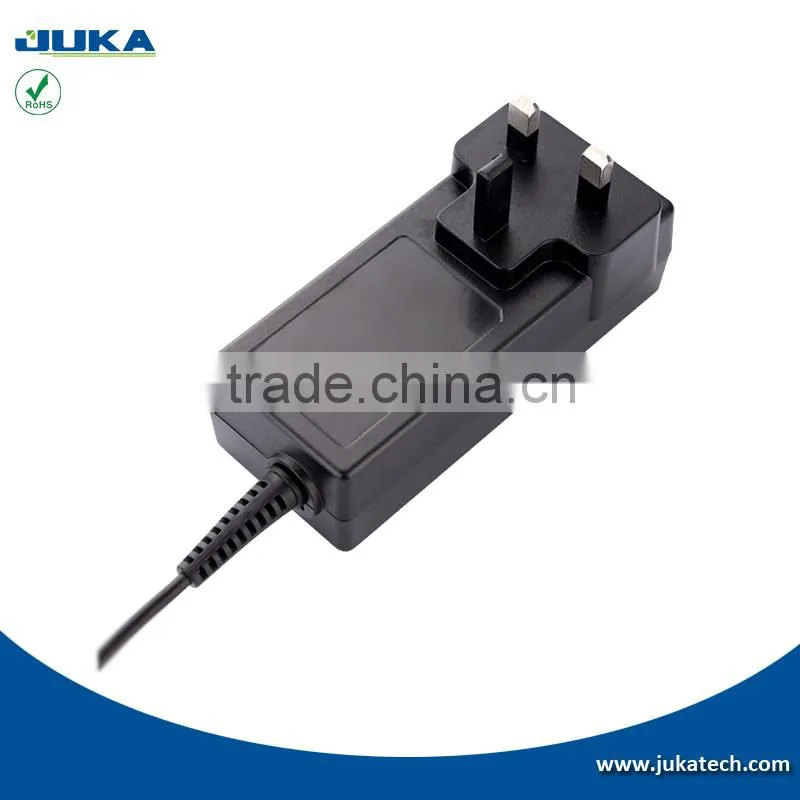

Desktop 12v 4.2a ac dc Power Supply Adapter for LED,LCD,POS Terminal Machine Etc
US$ 6.07 - 6.39
MOQ: 500 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
JUKE
Model Number:
JKXXXYYY-S09
Payment & Shipping
Payment Methods:
Port of Shipment:
SZ or HK
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
AC/DC Adapter/Adaptor for 12V 100mA - 1000mA 3.5 mm 1.35 Male PlugUS$ 1.72 - 2.13MOQ: 1000 Pieces -
220v 50hz ac dc Power Adapter Charger 9v 600ma/12v 0.5a Power Supply for RouterUS$ 1.8 - 2.13MOQ: 1000 Pieces
-
24W 12V 2A Kinamax Wireless High Powered Adapter& dc Adapter&chargersUS$ 3.28 - 3.61MOQ: 1000 Pieces
-
Wall-mount 12v 5v Ac Dc Power Adapter For Tv Antenna Adapter 12V 1250mA,Used in Brazil MarketUS$ 2.62 - 2.95MOQ: 1000 Pieces
-
6V DC 1000mA 500mA AC Power Supply Charger PSUUS$ 1.72 - 2.13MOQ: 1000 Pieces
Place of Origin
Guangdong, China
Brand Name
JUKE
Model Number
JKXXXYYY-S09
Output Type
DC
Connection
Desktop
Product Description
desktop 12v 4.2a ac dc power supply adapter for LED,LCD,POS terminal machine etc
* 60Watt Wall Mount & Desktop Power Adapter
* Universal Input 90 to 264VAC
* RoHS Compliant
*Meet ErP / Energy Star / MPES Level : V
Product Specification
| Sym | Parameter | Test Conditions | Min | Typ | Max | Unit |
| Operate Voltage Range | 100 | 240 | VAC | |||
| fin | Input Frequency | 47 | 63 | Hz | ||
| Po | Output Power Range | Vin=90 to 264VAC | 0 | 60 | W | |
| Vo | Output Voltage Range | 4 | 48 | V | ||
| Io | Output Current Range | 0 | 8 | A | ||
| Iil | Input Current(Low Line) | Io=Full Load,Vin=115VAC | 0.8 | A | ||
| Iih | Input Current(High Line) | Io=Full Load,Vin=230VAC | 1 | A | ||
| Irl | Low Line Inrush Current | Io=Full Load,25℃, Cool start,Vin=115VAC |
60 | A | ||
| Irh | High Line Inrush Current | Io=Full Load,25℃, Cool start,Vin=230VAC |
120 | A | ||
| Eff | Efficiency | Io=Full Load ,Vin=230VAC | 87 | 89 | % | |
| REG-i | Line Regulation | Io=Full Load | 1 | 2 | % | |
| REG-o | Load Regulation | Vin=230VAC | 3 | 5 | % | |
| OCP | Over Current Protection | Nil But,Output protected to short circuit conditions |
% | |||
| Ttr | Time of Transient Response | Io=Full Load to Half Load,Vin=100VAC | 2 | S | ||
| Thold | Hold-Up Time | Io=Full Load,Vin=100VAC | 5 | 10 | 35 | mS |
| Ts | Start Up Time | Io=Full Load,Vin=100VAC | 5 | 10 | 35 | mS |
| Vp-p | Ripple&Noise (Peak to Peak) |
Full Load,Vin=90VAC | 1 | 2 | % | |
| Ilk | Safety Ground Leakage Current |
Io=Full Load,Vin=240VAC | 0.25 | mA | ||
| Pno | No-Load Power Consumption |
No load, Vin=240VAC | 0.2 | 0.3 | w | |
| TC | Temperature Coefficient | All output | ||||
Enviromental:
| Sym | Parameter | Test Conditions | Min | Typ | Max | Unit |
| Toper | Operating Temperature | 0 | 25 | 40 | ℃ | |
| Tstg | Storage Temperature | -20 | 50 | ℃ | ||
| Ho | Operating Humidity | 15 | 90 | % | ||
| Hr | Storage Humidity | 10 | 95 | % | ||
| MTBF | Operating Temperature at 25℃, Calculated per MIL-HDBK-217F |
50000 | Hrs | |||
| Model Number. Output Voltage Max.Output Current Total Regulation Max.Output Watts | ||||||
| JKXXXYYY-S09 4-9VDC 0.01-8A 5% 60W | ||||||
| JKXXXYYY-S09 9.1-15VDC 0.01-6.5A 5% 60W | ||||||
| JKXXXYYY-S09 15.1-24VDC 0.01-2.5A 5% 60W | ||||||
| JKXXXYYY-S09 24.1-48VDC 0.01-1.25A 5% 60W |
